Fisher Steel Excess Flow Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Application | Inlet Connection | Outlet Connection | U. L., Closing Flow, LP (Horizontal) Liquid GPM / l/min | U. L., Closing Flow, LP (Horizontal) Vapor SCFH / SCMH 25 PSIG / 1,7 bar Inlet | U. L., Closing Flow, LP (Horizontal) Vapor SCFH / SCMH 100 PSIG / 6,9 bar Inlet | Differential Pressure PSID / bar d |
|---|---|---|---|---|---|---|---|---|

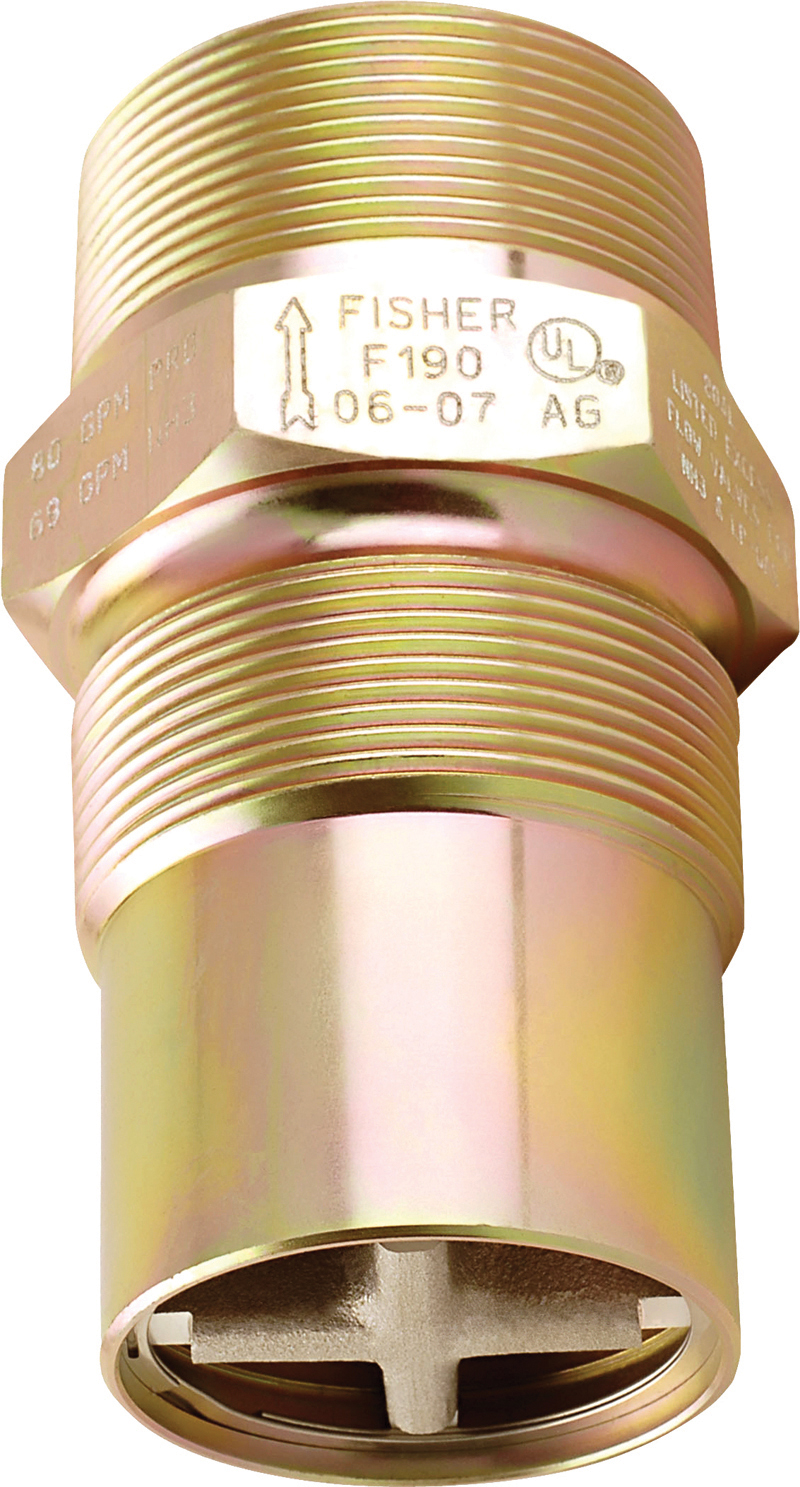

| 120720 | F190 | Tanks (Full or Half Couplings) | 2" MNPT | 2" MNPT X 1 1/4" FNPT | 80 / 303 | 15,400 / 436 | 26,250 / 743 | 3.7 / 0,26 |
| 120725 | F191 | Tanks (Full or Half Couplings) | 2" MNPT | 2" MNPT X 1 1/4" FNPT | 105 / 397 | 18,800 / 532 | 32,000 / 906 | 8.9 / 0,61 |
| 120730 | F194 | Tanks (Full or Half Couplings) | 3" MNPT | 2" MNPT | 165 / 625 | 32,800 / 929 | 55,950 / 1,584 | 3.1 / 0,21 |
| 120735 | F195 | Tanks (Full or Half Couplings) | 3" MNPT | 2" MNPT | 260 / 984 | 50,650 / 1,434 | 86,350 / 2,445 | 6.9 / 0,48 |
| 120740 | F198 | Tanks (Full or Half Couplings) | 3" MNPT | 3" MNPT X 2" FNPT | 165 / 625 | 33,000 / 934 | 56,250 / 1,593 | 3.1 / 0,21 |
| 120745 | F199 | Tanks (Full or Half Couplings) | 3" MNPT | 3" MNPT X 2" FNPT | 260 / 984 | 49,500 / 1,402 | 84,350 / 2,389 | 7.1 / 0,49 |
