Fisher Brass Excess Flow Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Application | Inlet Connection | Outlet Connection | U. L., Closing Flow, LP (Horizontal) Liquid GPM / l/min | U. L., Closing Flow, LP (Horizontal) Vapor SCFH / SCMH 25 PSIG / 1,7 bar Inlet | U. L., Closing Flow, LP (Horizontal) Vapor SCFH / SCMH 100 PSIG / 6,9 bar Inlet | Differential Pressure PSID / bar d |
|---|---|---|---|---|---|---|---|---|

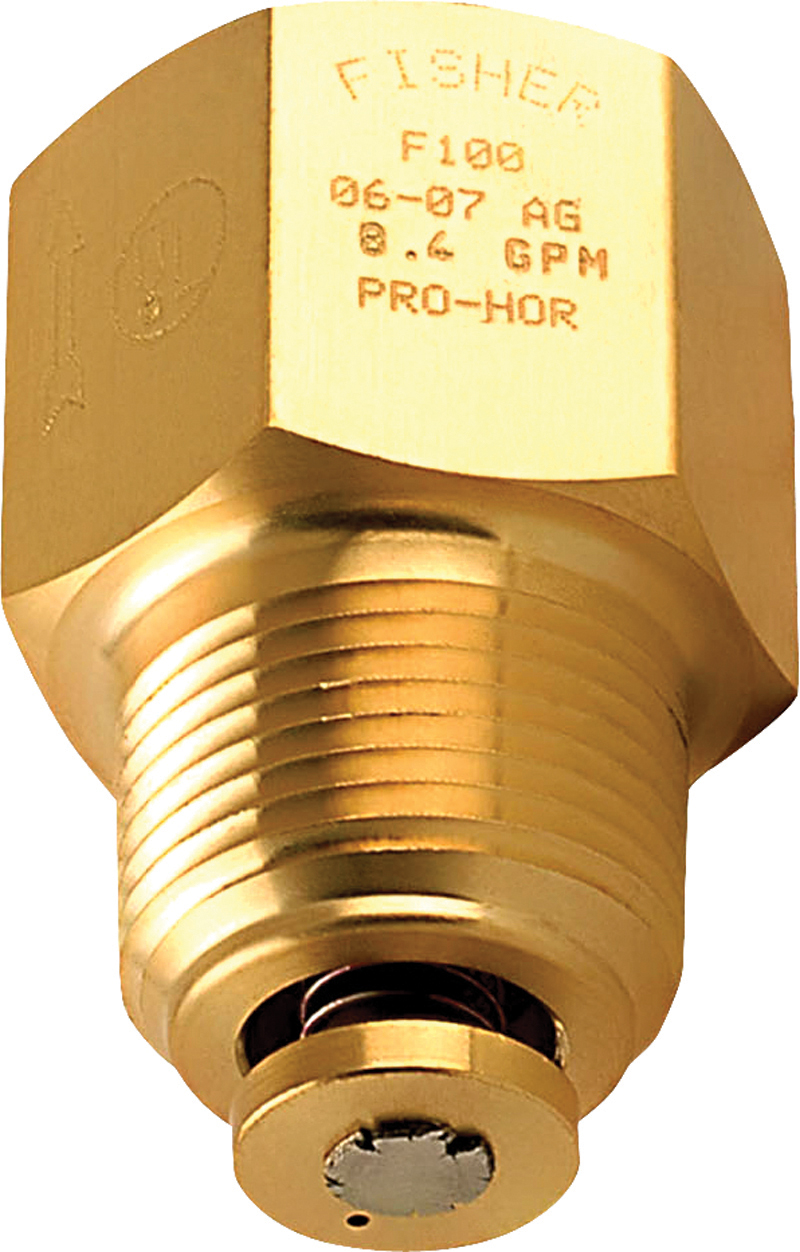

| 120610 | F100 | Tanks (Full or Half Couplings) | 3/4" MNPT | 3/4" FNPT | 8.4 / 31,8 | 2,010 / 56,9 | 3,417 / 96,8 | 2.4 / 0,17 |
| 120615 | F101 | Tanks (Full or Half Couplings) | 3/4" MNPT | 3/4" FNPT | 20 / 76,0 | 3,459 / 97,9 | 5,880 / 167 | 8.5 / 0,59 |
| 120620 | F102 | Tanks (Full or Half Couplings) | 1 1/4" MNPT | 1 1/4" FNPT | 33 / 125 | 6,300 / 178 | 10,630 / 301 | 10.7 / 0,74 |
| 120625 | F105 | Tanks (Full or Half Couplings) | 1 1/4" MNPT | 1 1/4" FNPT | 55 / 208 | 9,982 / 283 | 16,967 / 480 | 10.7 / 0,74 |
| 120630 | F106 | Tanks (Full or Half Couplings) | 2" MNPT | 2" FNPT | 85 / 322 | 18,513 / 524 | 31,467 / 891 | 2.6 / 0,18 |
| 120635 | F107 | Tanks (Full or Half Couplings) | 2" MNPT | 2" FNPT | 100 / 379 | 20,796 / 589 | 35,349 / 1,001 | 3.6 / 0,25 |
| 120650 | F130 | In-Line | 1" FNPT | 1" FNPT | 25 / 94,6 | 5,287 / 150 | 8,986 / 254 | 3.3 / 0,23 |
| 120655 | F131 | In-Line | 1 1/2" FNPT | 1 1/2" FNPT | 60 / 227 | 11,694 / 331 | 19,877 / 563 | 4.7 / 0,32 |
| 120660 | F132 | In-Line | 2" FNPT | 2" FNPT | 96 / 363 | 19,874 / 563 | 33,877 / 959 | 2.1 / 0,14 |
| 120665 | F133 | In-Line | 2" FNPT | 2" FNPT | 155 / 587 | 29,202 / 827 | 49,718 / 1,408 | 4.2 / 0,29 |
| 120670 | F134 | Tanks (Full or Half Couplings) | 1 1/2" MNPT X 1" FNPT | 1" FNPT | 28 / 106 | 5,181 / 147 | 8,806 / 249 | 2.7 / 0,19 |
| 120675 | F135 | Tanks (Full or Half Couplings) | 2 1/2" MNPT X1 1/2" FNPT | 1 1/2" FNPT | 60 / 227 | 12,000 / 340 | 20,290 / 575 | 5.2 / 0,35 |
| 120680 | F138 | In-Line | 1/4" MNPT | 1/4" FNPT | 1.8 / 6,8 | 377 / 10,7 | 641 / 18,2 | 1.4 / 0,097 |
| 120685 | F170 | Tanks (Full or Half Couplings) | 3/4" MNPT | 3/4" FNPT | 6.6 / 25,0 | 1,184 / 33,5 | 2,012 / 57,0 | 1.2 / 0,08 |
| 120747 | F202 | In-Line | Male POL | 1/2" SAE Flare | 1.9 / 7,2 | 634 / 17,9 | 1,100 / 31,1 | 2.6 / 0,18 |
