Fisher Low Pressure Commercial/Industrial
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Capacity in BTU/H LPG | Orifice | Inlet & Outlet | Outlet Pressure Range | Outlet Pressure Setting | Maximum Operating Inlet Pressure |
|---|---|---|---|---|---|---|---|

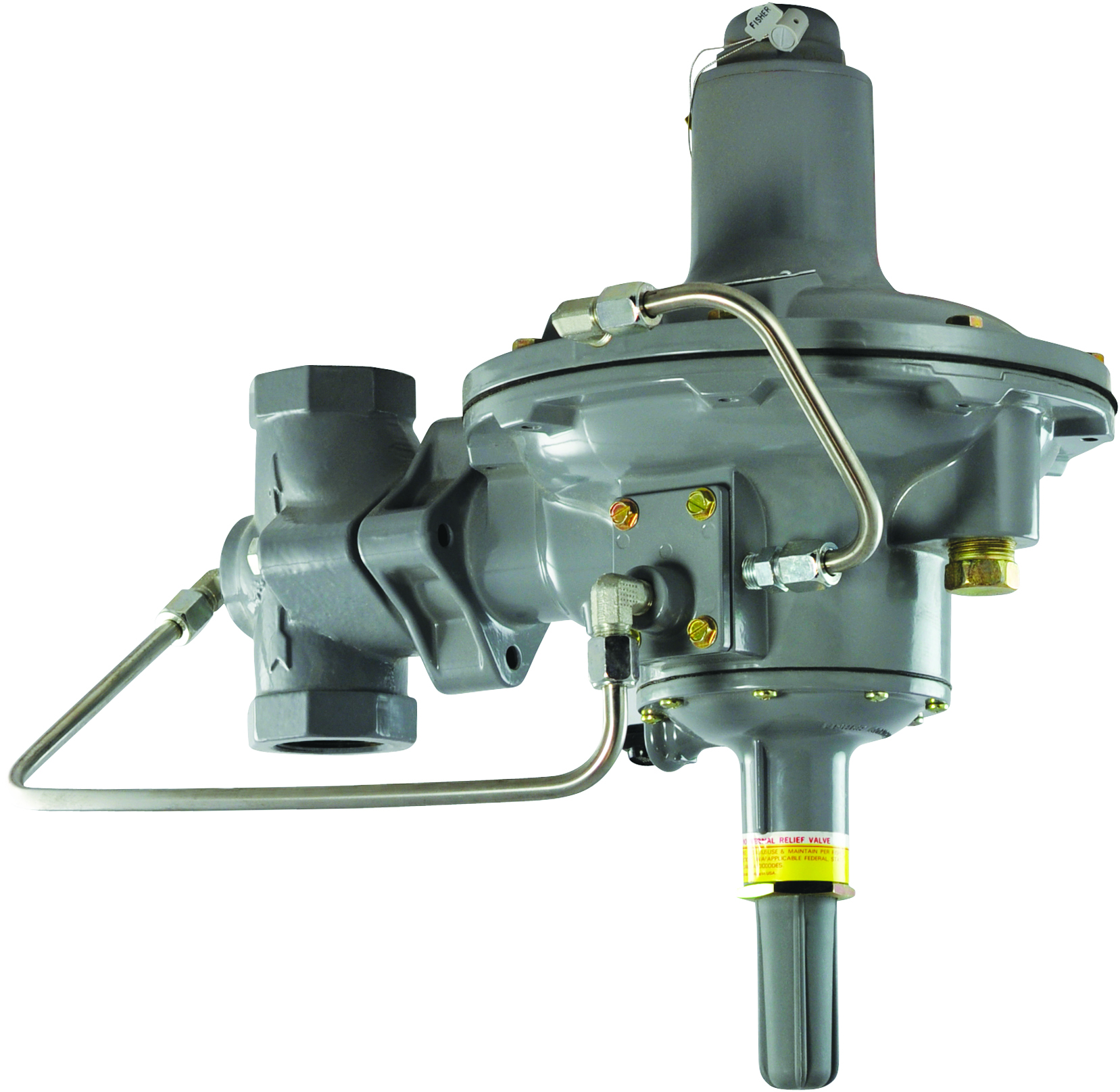

| 123709 | 299H-101 | 13,100,000 * | 3/4" | 1 1/2" FNPT | 9" - 20" W.C. | 11" W.C. | 150 PSI |
| 123699 | 133L-4 | 70,875,000 * | 2" | 2" FNPT | 8.5" - 18" W.C. | 14" W.C. | 60 PSI |
| 123684 | 99-504P | 63,250,000 * | 1 1/8" | 2" FNPT | 5 - 15 PSI | 15 PSI | 150 PSI |
| 123682 | 99-503P | 61,650,000 * | 1 1/8" | 2" FNPT | 2 - 10 PSI | 10 PSI | 150 PSI |
| 123680 | 99-502P | 50,600,000 * | 1 1/8" | 2" FNPT | 1 - 5 PSI | 5 PSI | 150 PSI |
| 123677 | 99-501P | 49,000,000 * | 1 1/8" | 2" FNPT | 7" W.C. - 2 PSI | 1 PSI | 150 PSI |
| 123714 | 299H-108 | 38,000,000 * | 3/4" | 2" FNPT | 6" - 16" W.C. | 10 PSI | 150 PSI |
| 123712 | 299H-104 | 38,000,000 * | 3/4" | 2" FNPT | 6" - 16" W.C. | 10 PSI | 150 PSI |
| 123711 | 299H-103 | 23,300,000 * | 3/4" | 1 1/2" FNPT | 6" - 16" W.C. | 10 PSI | 150 PSI |
| 123710 | 299H-102 | 19,700,000 * | 3/4" | 2" FNPT | 9" - 20" W.C. | 11" W.C. | 150 PSI |
| 123698 | 133H-1 | 66,150,000 * | 2" | 2" FNPT | 1.5 - 3 PSI | 3 PSI | 60 PSI |
