- Inlet & Outlet: 2" FNPT
- Outlet Pressure Range: 1.5 - 3 PSI
- Outlet Pressure Setting: 3 PSI
- Capacity in BTU/H LPG: 66,150,000 *
- Maximum Operating Inlet Pressure: 60 PSI
- Orifice: 2"
* Capacity in BTU per hour LPG:
Capacity based on inlet pressure 10 PSI, External registration, & 20% droop.
Note: Additional spring ranges & body styles are available. Ask your salesman for additional confiurations & for more information.
Emerson™ has a wide range of low-pressure regulators to meet almost any commercial or industrial application. For ease of reference, only the most popular commercial and industrial regulators are shown on this page. Other orifice sizes, body sizes and outlet pressure ranges are available.
Note: Because of various spring ranges and orifice sizes, all commercial and industrial regulators should be individually sized for the particular installation. Consult specific product bulletins for maximum pressures ratings. Contact your salesman for assistance.

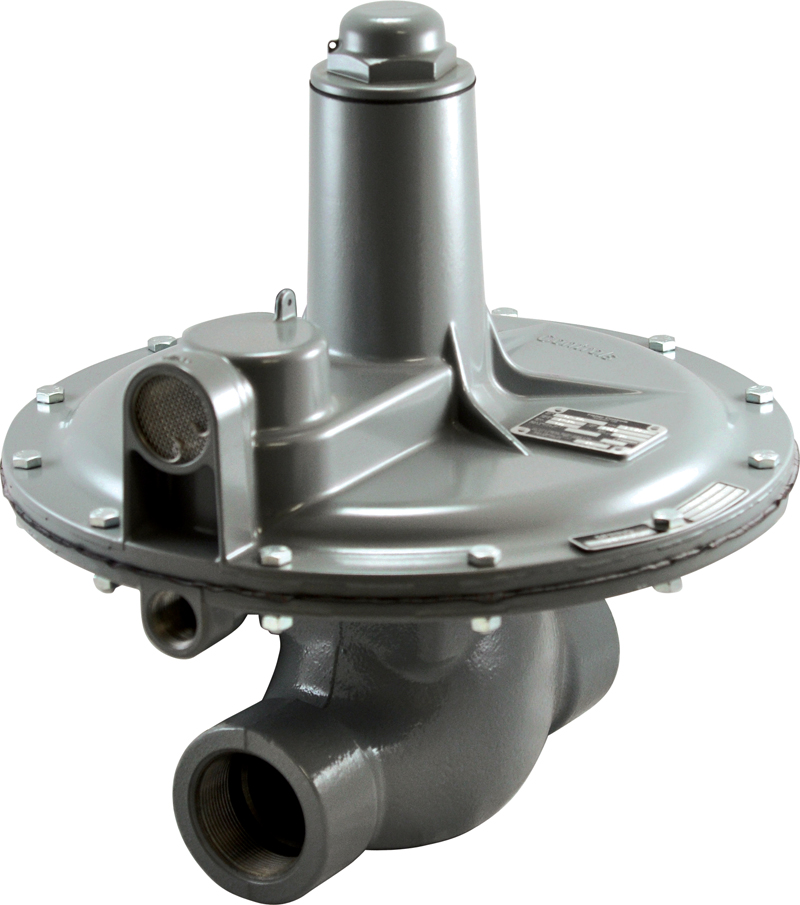

133 Series – Direct-operated Second-Stage regulator ideal for large industrial applications with loads up to 70,875,000 BTU per hour. The unit can be used for either low pressure or pounds service. Maximum inlet pressure is 60 psi and
a downstream control line is required. The 133 Series has a temperature rating of -20 to 150°F.
