- Inlet & Outlet: 2" FNPT
- Outlet Pressure Range: 5 - 15 PSI
- Outlet Pressure Setting: 15 PSI
- Capacity in BTU/H LPG: 63,250,000 *
- Maximum Operating Inlet Pressure: 150 PSI
- Orifice: 1 1/8"
* Capacity in BTU per hour LPG:
Capacity based on inlet pressure 20 PSI greater than outlet pressure, External registration, & 20% droop.
Note: Additional spring ranges & body styles are available. Ask your salesman for additional confiurations & for more information.
Emerson™ has a wide range of low-pressure regulators to meet almost any commercial or industrial application. For ease of reference, only the most popular commercial and industrial regulators are shown on this page. Other orifice sizes, body sizes and outlet pressure ranges are available.
Note: Because of various spring ranges and orifice sizes, all commercial and industrial regulators should be individually sized for the particular installation. Consult specific product bulletins for maximum pressures ratings. Contact your salesman for assistance.

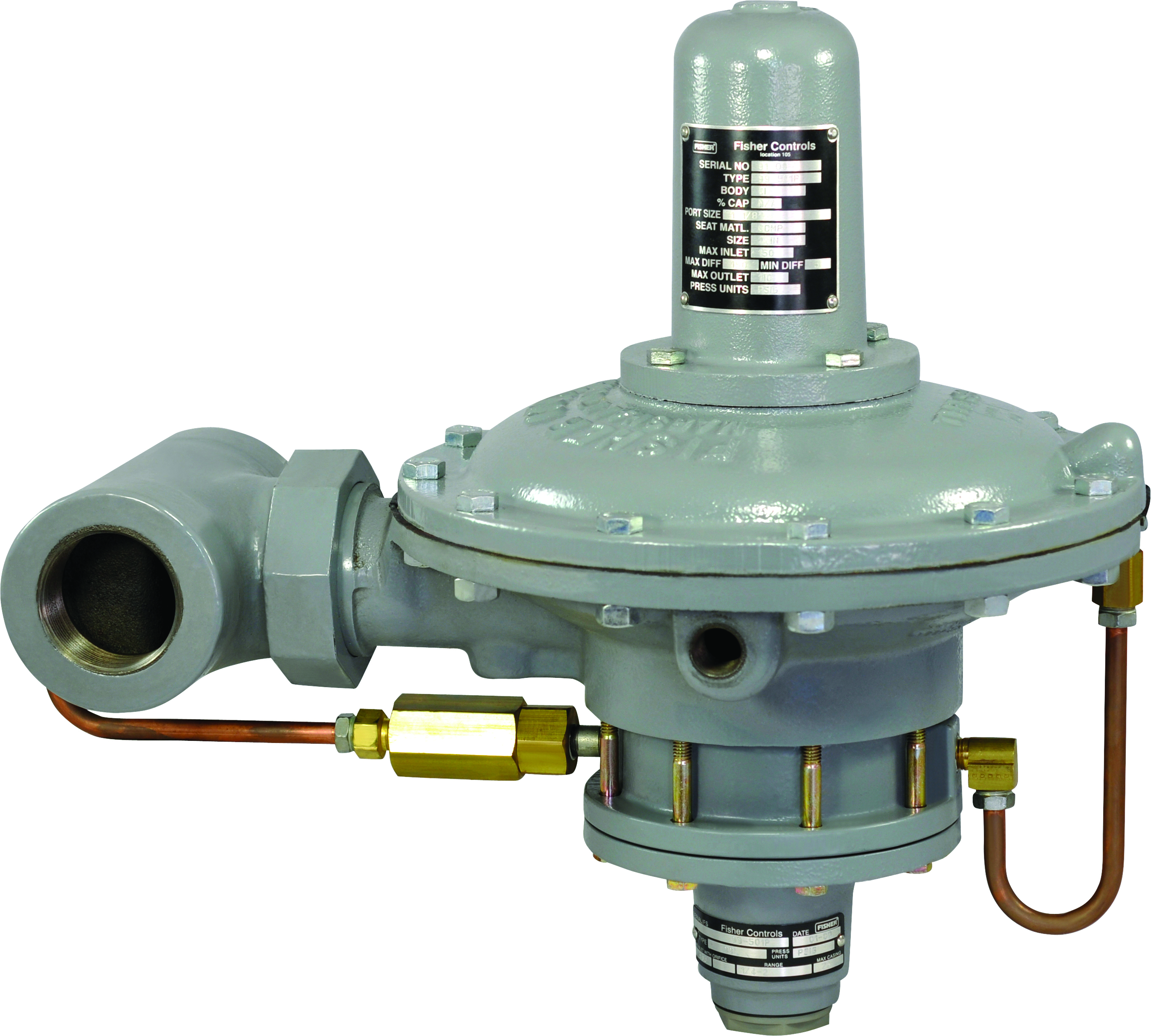

Type 99 – Pilot-operated unit keeps outlet pressure constant despite varying flow rates and inlet pressures. Designed to handle loads up to 63,250,000 BTU per hour, the Type 99L is ideal for multiple customer installations. The unique pilot design, with fast opening and closing operation, makes the Type 99L ideal for large industrial boiler applications. The Type 99L can be used for low pressure. A downstream control line is required. Temperature ratings for the Type 99 is -20 to 160°F.
