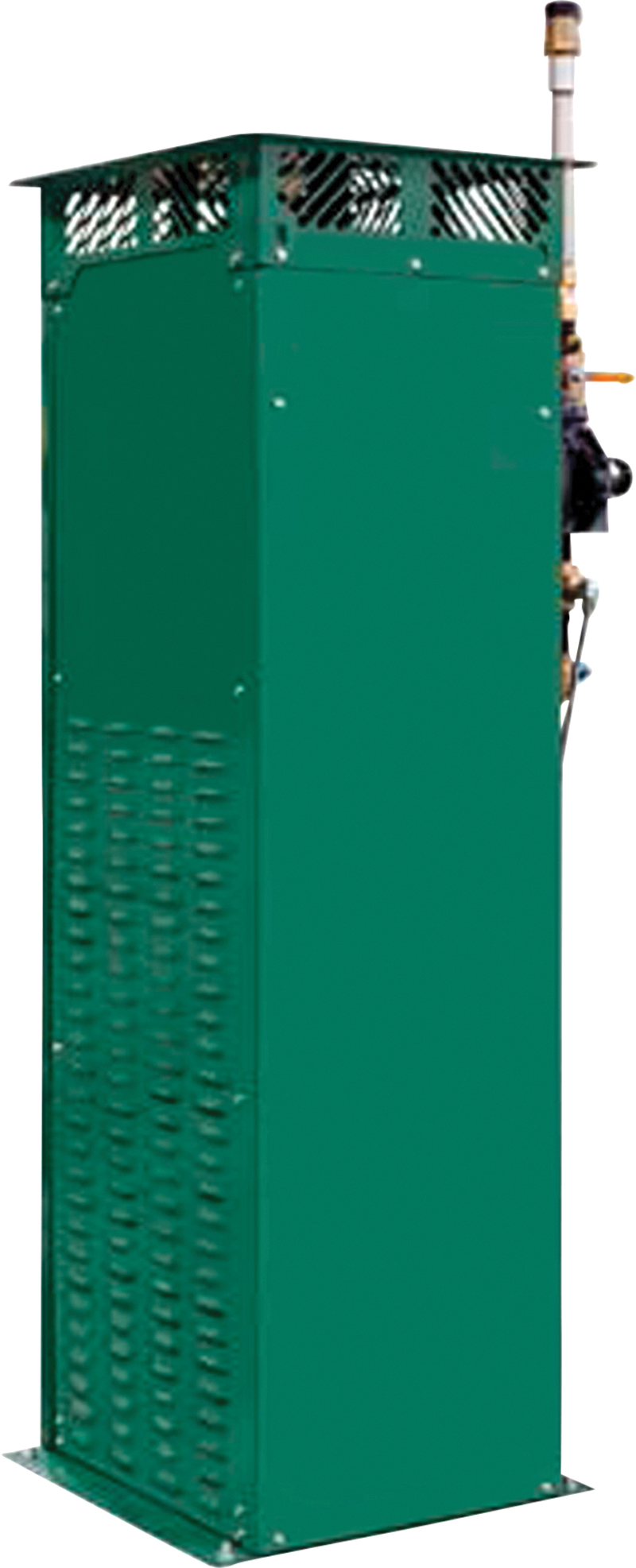

Algas Direct Fired Vaporizer
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Propane Vaporization Capacity Gallons/ hr | Propane Vaporization Capacity Million BTU/hr | Connections Liquid Inlet | Connections Vapor Outlet |
|---|---|---|---|---|---|
| 710005 | 40/40H | 40 | 3.64 | 3/4" FNPT | 1" FNPT |
| 710020 | 80/40H | 80 | 7.28 | 3/4" FNPT | 1" FNPT |
| 710025 | 120/60H | 120 | 10.92 | 3/4" FNPT | 1" FNPT |
| 710043 | 160H | 160 | 14.56 | 3/4" FNPT | 1" FNPT |
| 710044 | 320H | 320 | 29.12 | 2" FNPT | 2" FNPT |
| 710045 | 480H | 480 | 43.68 | 2" FNPT | 2" FNPT |
| 710046 | 640H | 640 | 58.24 | 2" FNPT | 2" FNPT |
