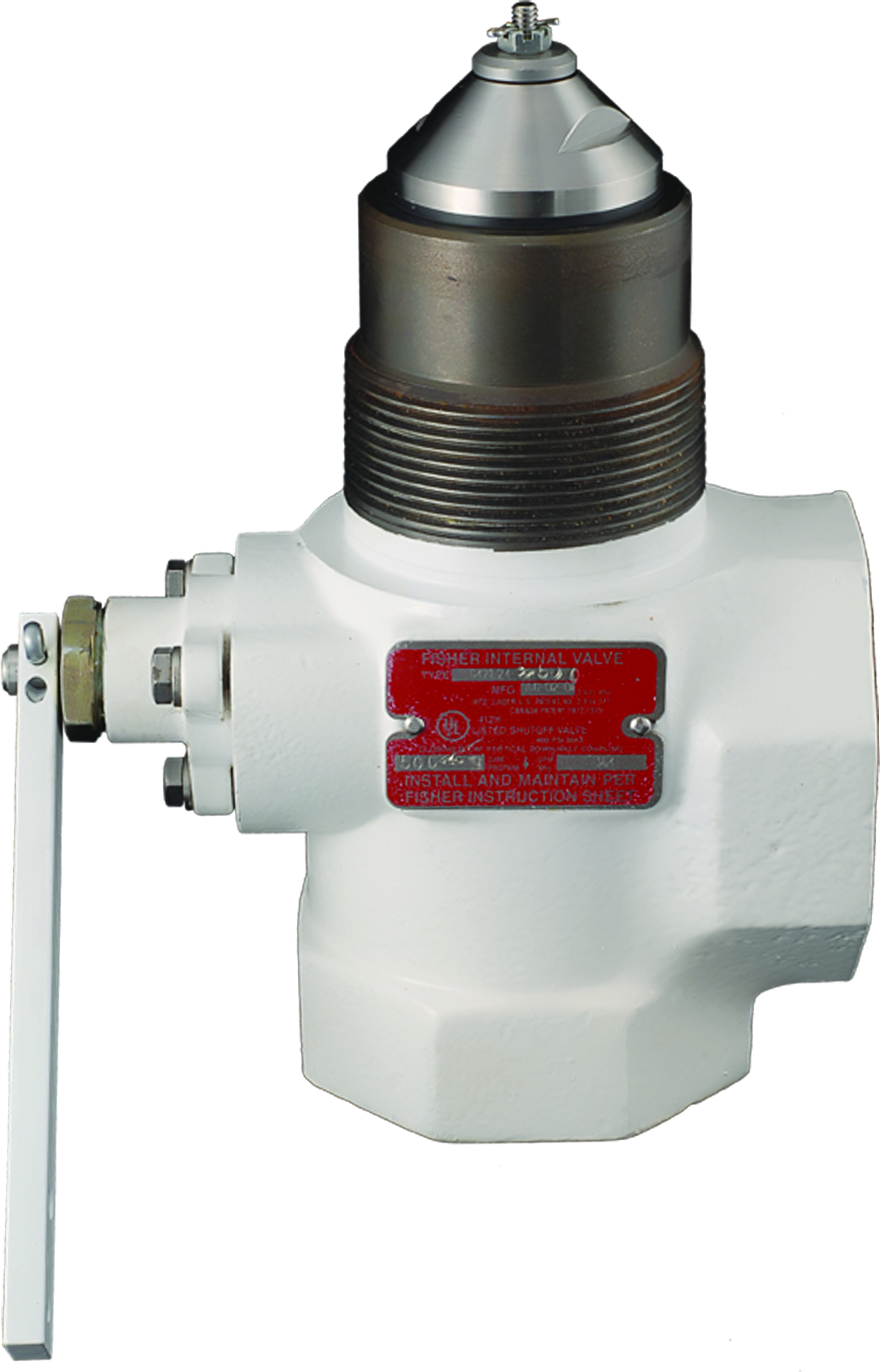

Fisher 3" Threaded Internal Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Closing Flow GPM / l/min Propane * Half Coupling | Closing Flow GPM / l/min Propane * Full Coupling | Vapor Capacity SCFH / SCMH Propane * 25 psig / 1,7 bar Inlet | Vapor Capacity SCFH / SCMH Propane * 100 psig / 6,9 bar Inlet | Connections Inlet X Outlet |
|---|---|---|---|---|---|---|
| 120461 | C477-24-160 | 160 / 606 | 120 / 454 | 41,100 / 1,164 | 71,000/ 2,011 | 3" MNPT X3" FNPT |
| 120471 | C477-24-260 | 265 / 1,003 | 230 / 871 | 71,800 / 2,033 | 127,000 / 3,596 | 3" MNPT X3" FNPT |
| 120476 | C477-24-375 | 375 / 1,419 | 320 / 1,211 | 99,000 / 2,803 | 178,000 / 5,040 | 3" MNPT X3" FNPT |
| 120484 | C477-24-460 | 460 / 1,741 | 380 / 1,438 | ----- | ----- | 3" MNPT X3" FNPT |
| 120313 | C471-24-160 | 160 / 606 | 120 / 454 | 41,100 / 1,164 | 71,000/ 2,011 | 3" MNPT X3" FNPT |
| 120321 | C471-24-260 | 265 / 1,003 | 230 / 871 | 71,800 / 2,033 | 127,000 / 3,596 | 3" MNPT X3" FNPT |
| 120326 | C471-24-375 | 375 / 1,419 | 320 / 1,211 | 99,000 / 2,803 | 178,000 / 5,040 | 3" MNPT X3" FNPT |
| 120331 | C471-24-460 | 460 / 1,741 | 380 / 1,438 | ----- | ----- | 3" MNPT X3" FNPT |
