- RPM: 640
- 3 Phase Motor: 10 HP
- Frame Size: 215T

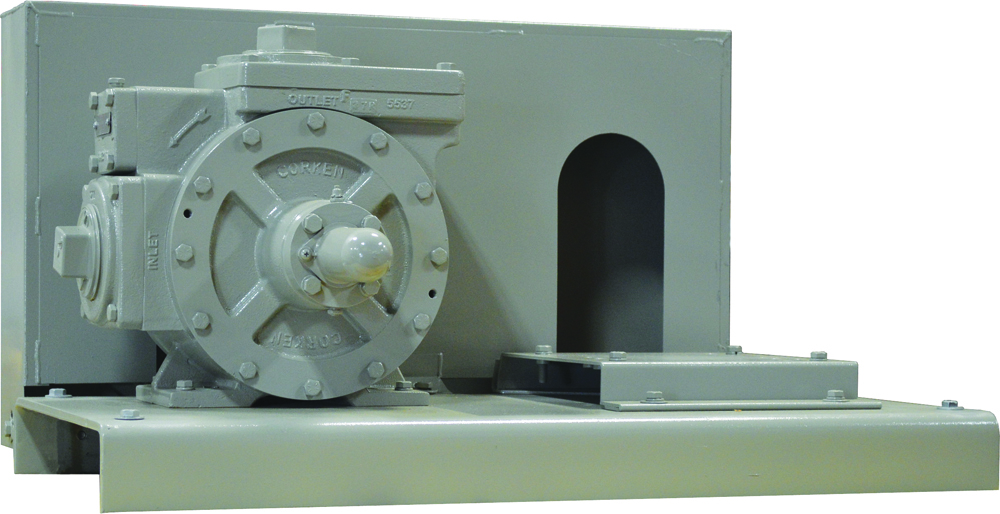

103 Style - Mounting includes steel baseplate, adjustable driver slide base, V-belt drive & enclosed belt guard.
| Suggested Motor (Sold Separately) |
|||
| Service |
Motor |
Shaft Size |
Voltage |
| LP-Gas | EM7170T-I | 1 1/8" | 230/460 |
| NH3 | EM3774T | 1 1/8" | 208-230/460 |
LP-Gas Motor - 140420
NH3 Motor - 140422
1021 Adapter Plate O-Ring - Buna-N (Qty. 2) - 140945
1021 Adjusting Screw O-Ring - Buna-N - 140930
1021 Bearing Cap (Qty. 2) - 140618
1021 Bearing Housing (Qty. 2) - 140800
1021 Bearing Inner Race (Qty. 2) - 140852
1021 Bearing Outer Race (Qty. 2) - 140827
1021 Cam - 140650
1021 Case O-Ring - Buna-N (Qty. 2) - 140955
1021 Flange - 3" NPT (Qty. 2) - 140651
1021 3" Flange O-Ring - Buna-N (Qty. 2) - 140946
1021 4" Flange O-Ring - Buna-N (Qty. 2) - 140949
1021 Flush Steel Plug 1/8" NPT - 140842
1021 Grease Seal (Qty. 2) - 140740
1021 Grease Zerk - 1/8" NPT (Qty. 2) - 140862
1021 Head (Qty. 2) - 140652
1021 Hex Head Bolt - 3/8-16 X 1 1/4" (Qty. 36) - 140540
1021 Hex Head Bolt - 3/8-16 X 1 1/2" (Qty. 8) - 140546
1021 Lubricap (Qty. 2) - 140817
1021 Relief Fitting - 1/8" NPT (Qty. 4) - 140725
1021 Relief Valve - 140656
1021 Relief Valve Adjusting Screw - 140814
1021 Relief Valve Cap - 140653
1021 Relief Valve Cap O-Ring - Buna-N - 140939
1021 Relief Valve Spring - 140657
1021 Relief Valve Spring Guide - 140658
1021 Repair Kit - 140890
1021 Retainer Ring (Qty. 2) - 140854
1021 Roller Bearing - Complete (Qty. 2) - 140850
1021 Rotor & Shaft Assembly - 140654
1021 Seal Assembly - Replacement (Qty. 2) - 140802
1021 Seal Assembly (Qty. 2) - 140801
1021 Seal Seat O-Ring - Buna-N (Qty. 2) - 140931
1021 Seat Adapter Plate (Qty. 2) - 140824
1021 Shaft Key - 1/4" X 1 9/16" (Qty. 2) - 140813
1021 Shaft O-Ring - Buna-N (Qty. 2) - 140935
1021 Sideplate (Qty. 2) - 140660
1021 Vane (Qty. 10) - 140716
