- Inlet: 1" FNPT
- Outlet: 1 3/4" F. Acme

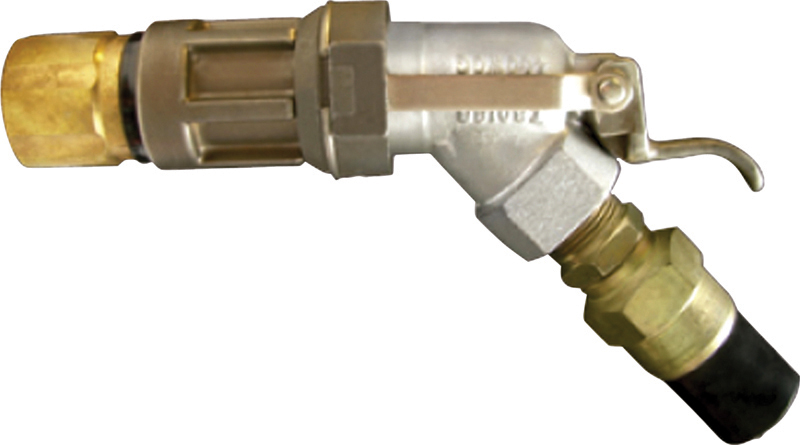

N480 hose end valves are intended for quick opening and closing during bobtail truck deliveries of LPG. The unique design prevents opening unless attached to a 1-3/4" ACME filler valve at the tank. The 45° angle body configuration with 1" NPT inlet gives maximum handling ease during the transfer operation. Standard product temperature rating is -20 to 160°F.
For increased safety, the Type N480 is designed to stay closed unless connected even with the operating lever in the open position. This prevents accidental opening during hose reel-up or at other times. The fluted coupler permits quick attachment to the filler valve and the operating lever is easy to reach for opening or closing.
The M570 filler hose adaptor, included with the Type N480, permits the hose end valve to be removed from filler valves that fail to close. Standard product temperature rating is -20 to 160°F.
Caution: Other brands of filler hose adaptors should not be used with the Type N480 because they could allow accidental opening of the valve while it is being handled.
N480 Cap Screw - Stainless Steel - 129885
N480 Disk - Neoprene (CR) - 129801
N480 Dowel Pin - Steel - 129796
N480 Gasket Seat - 416 Stainless Steel - 129285
N480 Guide - Aluminum/Teflon® (PTFE) - 129927
N480 Handle - Stainless Steel - 129277
N480 Inner Stem - Steel/Teflon® (PTFE) - 129929
N480 Linkage - Steel/Teflon® (PTFE) - 129797
N480 O-Ring - Nitrile (NBR) - 129049
N480 O-Ring - Nitrile (NBR) - 129780
N480 O-Ring - Nitrile (NBR) - 129793
N480 Rivet - Stainless Steel - 129795
N480 Set Screw - Brass - 129086
N480 Set Screw - Steel Plated - 126005
N480 Snap Ring - 302 Stainless Steel - 126680
N480 Spacer - 302 Stainless Steel - 129881
N480 Spring - 302 Stainless Steel - 129873
N480 Washer - Stainless Steel - 129802
N480 X-Ring - 129800
N480 Yoke - Aluminum/Teflon® (PTFE) - 129278
