- Inlet: 1 1/4
- Outlet: 1 1/4
- Application: NH3
- LP-Gas Flow Rate: -----
- NH3 Flow Rate: 126 GPM

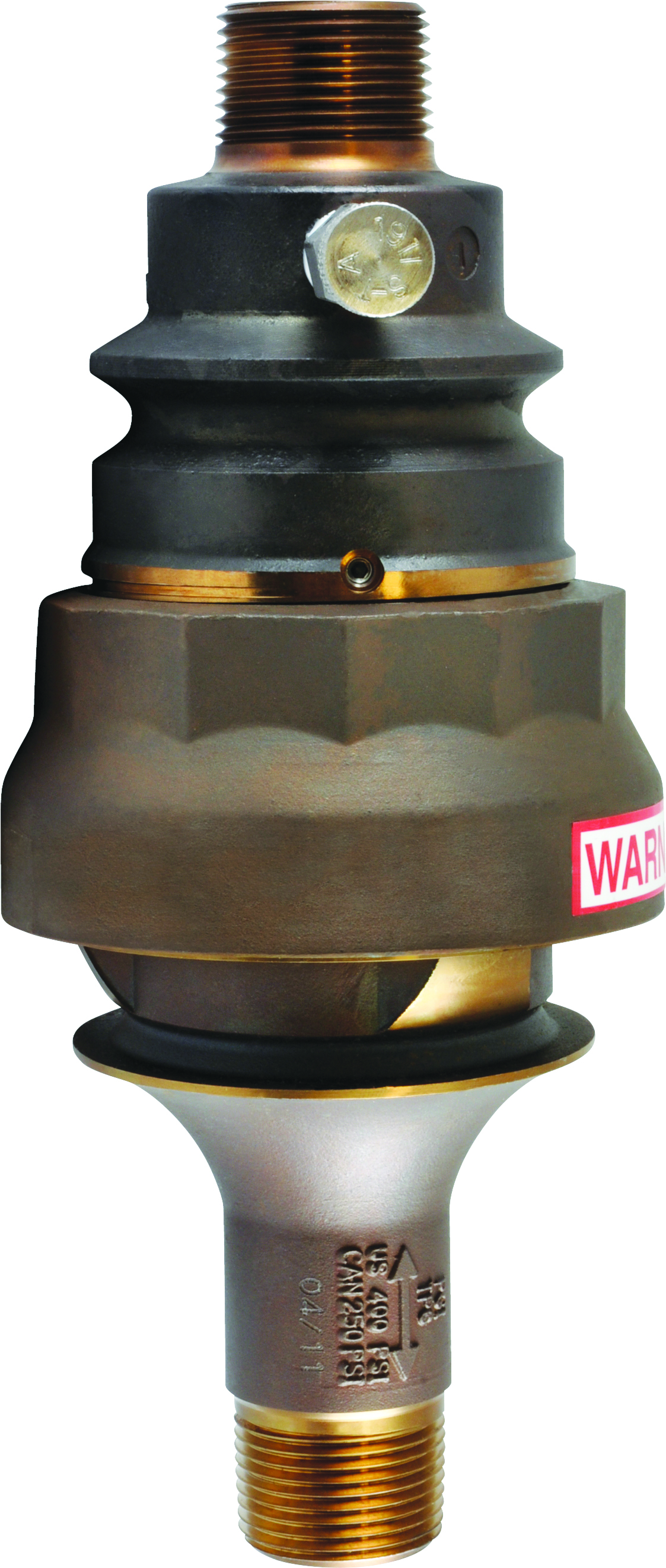

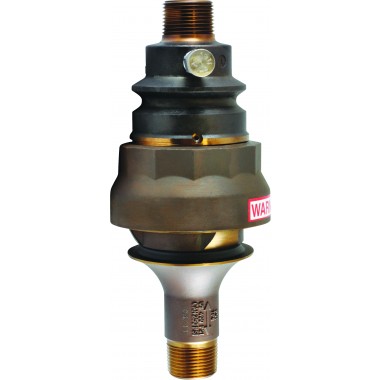

The TriPod Safety Coupler is designed to provide pull away protection between the vapor hose and the bulkhead. It’s non-destructive releasing mechanism will operate reliably with a pull away force in any generally horizontal direction. In addition, the torque needed to release the liquid and vapor TriPods is only 500 Ft.Lbs total, therefore the bulkhead does not normally require additional structural bracing. So in most cases, the TriPod can quickly be installed in existing bulkhead applications.
Includes Bar / Hardware Kit for riser mounting.
O-Ring Kits:
Fits TP126 Model with MFG date 10/93 - 6/94 - 119422
Fits TP3-1000 Model with MFG date 10/93 - 6/94 - 119422
Fits TP7-1000 Model with MFG date of 5/01 - Present - 119432
Pinned TriPods with a MFG date of 4/98 - 4/01 are not field repairable and need to be returned to factory for repair.
Ball Socket O-Ring:
Fits TP126 Model with MFG date 10/93 - 6/94 - 119410
Fits TP3-1000 Model with MFG date 10/93 - 6/94 - 119410
Large fits TP3-1000 Model with MFG date 12/96 - 9/97 - 119423
Small fits TP3-1000 Model with MFG date 12/96 - 9/97 - 119424
Large fits TP3-1001 Model with MFG date 4/98 - 4/01 - 119423
Small fits TP3-1001 Model with MFG date 4/98 - 4/01 - 119424
Large fits TP7-1000 Model with MFG date of 5/01 - Present - 119423
Small fits TP7-1000 Model with MFG date of 5/01 - Present - 119424
Body O-Ring:
Fits TP126 Model with MFG date 10/93 - 6/94 - 119416
Fits TP3-1000 Model with MFG date 10/93 - 6/94 - 119416
Fits TP3-1000 Male Half Model with MFG date 12/96 - 9/97 - 119434
Fits TP3-1000 Female Half Model with MFG date 12/96 - 9/97 - 119435
Fits TP7-1000 Male Half Model with MFG date of 5/01 - Present - 119434
Fits TP7-1000 Female Half Model with MFG date of 5/01 - Present - 119435
Other Parts::
TP7 Female Half - 113120
TP7 Male Half - 113125
TP126, TP3, & TP7 Bar & Hardware Kit - 119404
TP126 Male Ball Socket Kit - 119429
