- Inlet: 1" MNPT
- Outlet: 1" MNPT
- Application: NH3
- LP-Gas Flow Rate: -----
- NH3 Flow Rate: 77 GPM

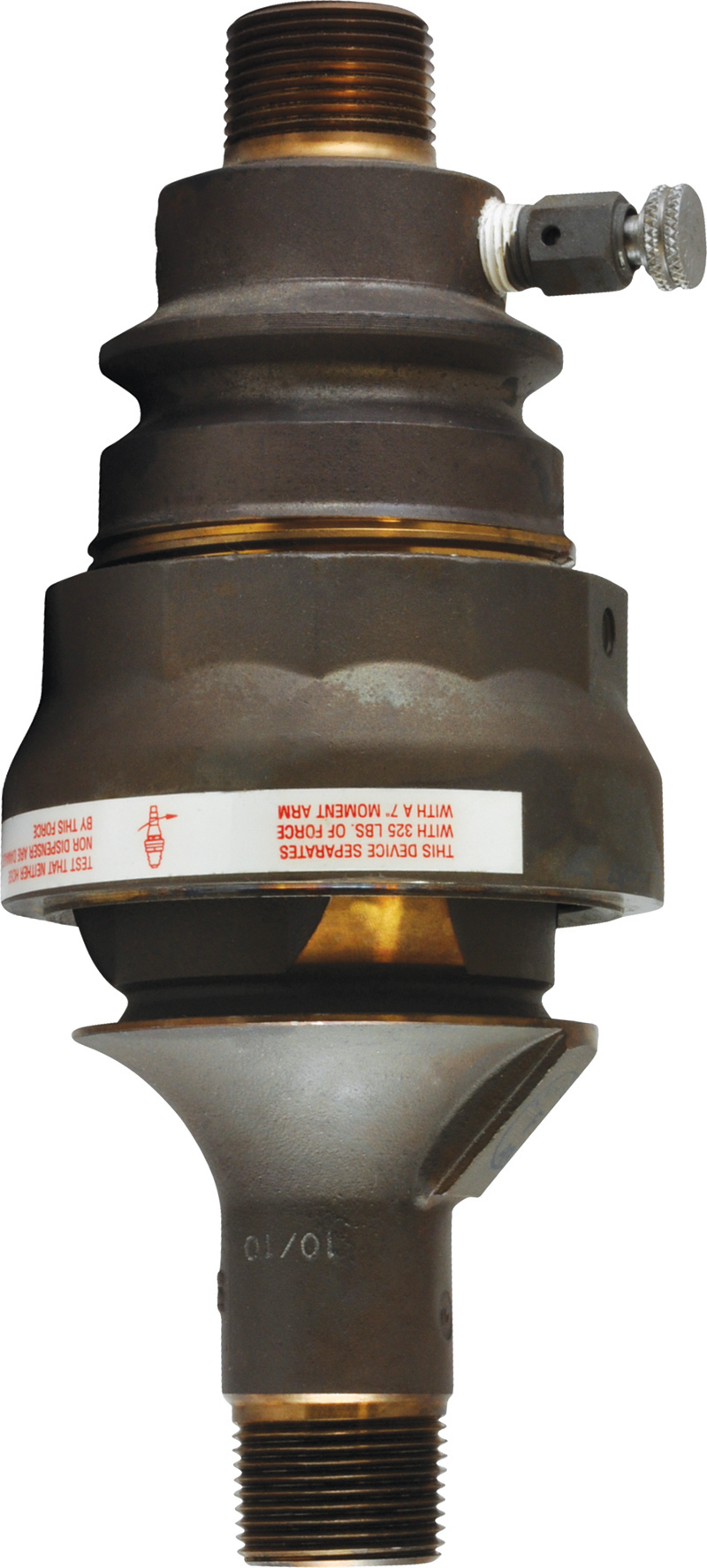

The TriPod Safety Coupler is designed to provide pull away protection between the vapor hose and the bulkhead. It’s non-destructive releasing mechanism will operate reliably with a pull away force in any generally horizontal direction. In addition, the torque needed to release the liquid and vapor TriPods is only 500 Ft.Lbs total, therefore the bulkhead does not normally require additional structural bracing. So in most cases, the TriPod can quickly be installed in existing bulkhead applications.
Includes Bar / Hardware Kit for riser mounting.
O-Ring Kits:
Fits TP77 Model with MFG date 10/93 - 6/94 - 119420
Fits TP2-1000 Model with MFG date 10/93 - 2/98 - 119420
Fits TP6-1000 Model with MFG date of 5/01 - Present - 119431
Pinned TriPods with a MFG date of 3/98 - 4/01 are not field repairable and need to be returned to factory for repair.
Ball Socket O-Ring:
Fits TP77 Model with MFG date 10/93 - 6/94 - 119408
Fits TP2-1000 Model with MFG date 10/93 - 2/98 - 119408
Fits TP2-1001 Model with MFG date 3/98 - 4/01 - 119408
Fits TP6-1000 Model with MFG date of 5/01 - Present - 119408
Body O-Ring:
Fits TP77 Model with MFG date 10/93 - 6/94 - 119414
Fits TP2-1000 Model with MFG date 10/93 - 2/98 - 119414
Fits TP6-1000 Female Half Model with MFG date of 5/01 - Present - 119436
Fits TP6-1000 Male Half Model with MFG date of 5/01 - Present - 119437
Other Parts::
TP6 Female Half - 113110
TP6 Male Half - 113115
TP77, TP2, & TP6 Bar & Hardware Kit - 119402
TP77 Male Ball Socket Kit - 119427
