- Inlet: 1" MNPT
- Outlet: 1" MNPT
- Application: NH3
- LP-Gas Flow Rate: -----
- NH3 Flow Rate: 55 GPM

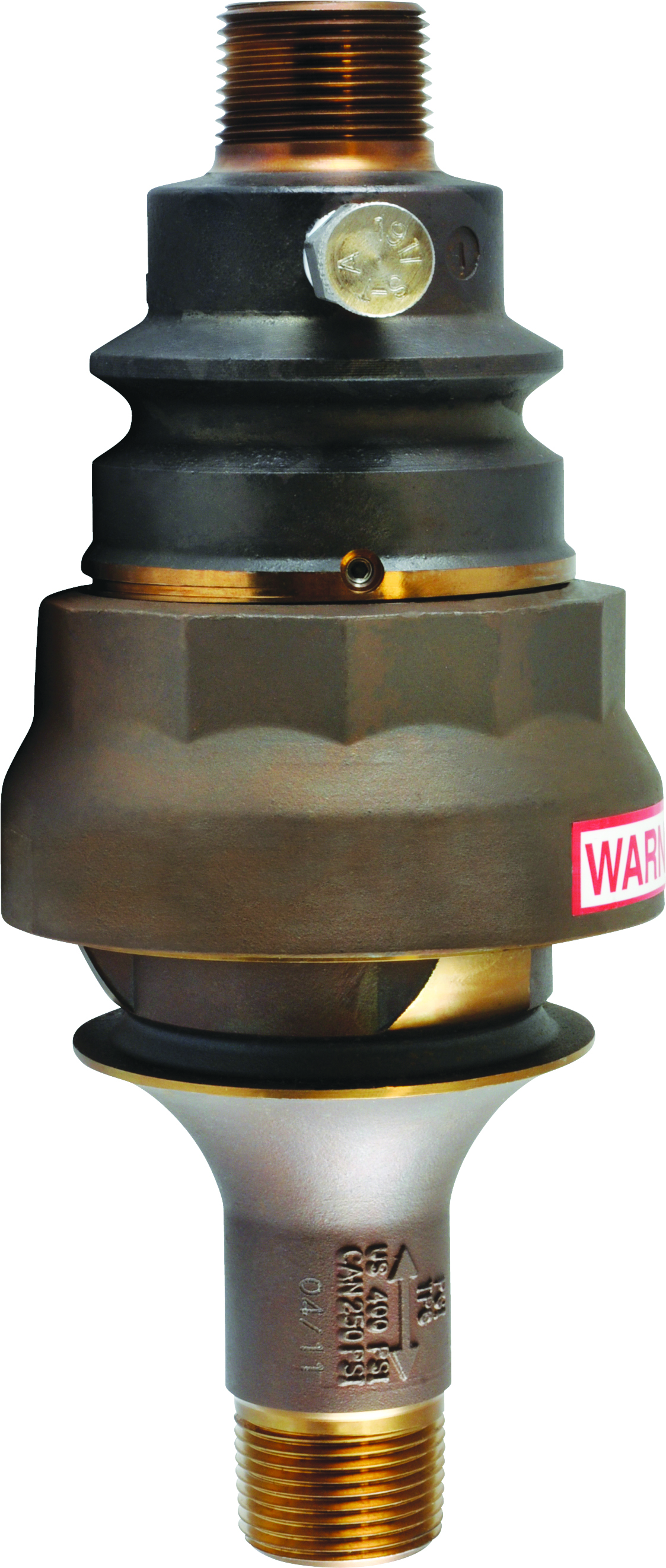

The TriPod Safety Coupler is designed to provide pull away protection between the vapor hose and the bulkhead. It’s non-destructive releasing mechanism will operate reliably with a pull away force in any generally horizontal direction. In addition, the torque needed to release the liquid and vapor TriPods is only 500 Ft.Lbs total, therefore the bulkhead does not normally require additional structural bracing. So in most cases, the TriPod can quickly be installed in existing bulkhead applications.
Includes Bar / Hardware Kit for riser mounting.
O-Ring Kits:
Fits TP55 Model with MFG date 10/93-6/94 - 119418
Fits TP1-1000 Model with MFG date 10/93-5/97 - 119418
Fits TP5-1000 Model with MFG date of 5/01 - Present - 119430
Pinned TriPods with a MFG date of 6/97 - 4/01 are not field repairable and need to be returned to factory for repair.
Ball Socket O-Ring:
Fits TP55 Model with MFG date 10/93-6/94 - 119406
Fits TP1-1000 Model with MFG date 10/93-5/97 - 119406
Fits TP1-1001 Model with MFG date 6/97-4/01 - 119406
Fits TP5-1000 Model with MFG date of 5/01 - Present - 119406
Body O-Ring:
Fits TP55 Model with MFG date 10/93-6/94 - 119412
Fits TP1-1000 Model with MFG date 10/93-5/97 - 119412
Fits TP5-1000 Model with MFG date of 5/01 - Present - 119433
Other Parts::
TP5 Female Half - 113100
TP5 Male Half - 113105
TP55, TP1, & TP5 Bar & Hardware Kit - 119400
TP55 Male Ball Socket Kit - 119425
