- Part Description: Includes Monitor, R3D Dial w/ Sender, & AC Adapter
Includes Monitor, R3D Dial w/ Sender, & AC Adapter

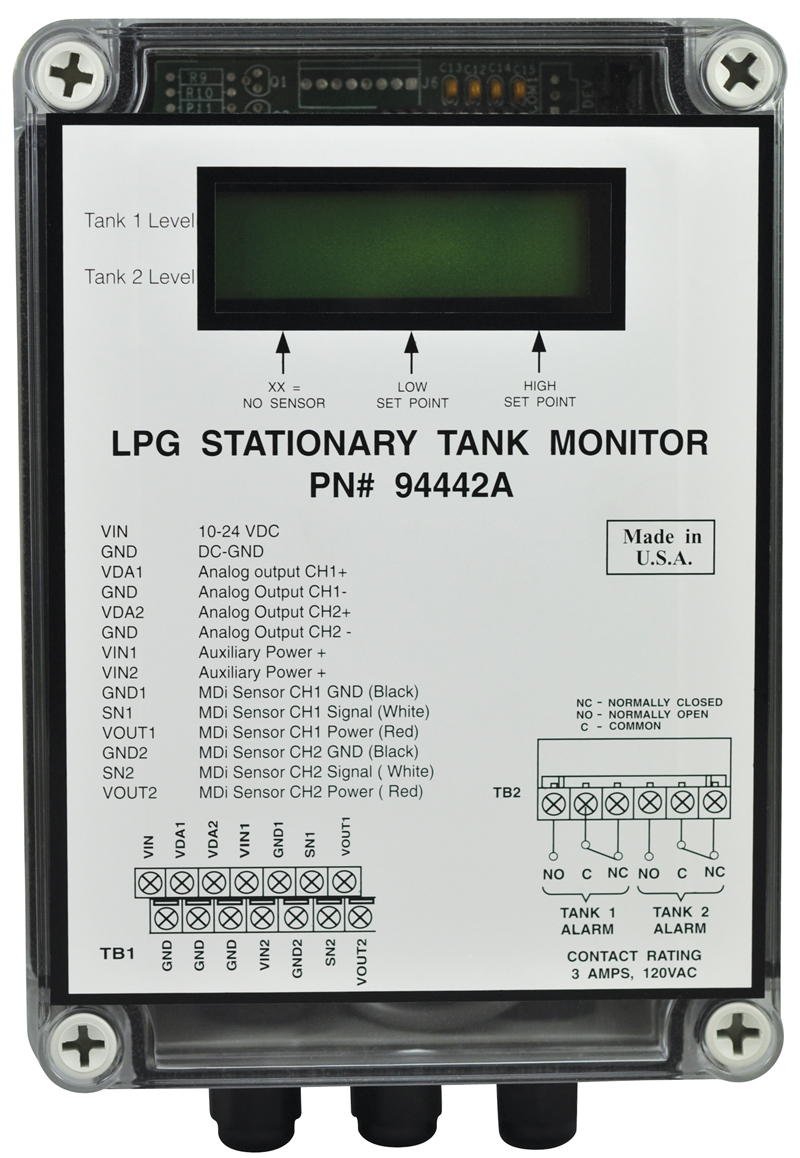

The 94442A Stationary Tank Monitor (STM) is used for measuring LPG level in a tank. It can be installed indoors or outdoors at a convenient location that can be up to 300 feet from the tank. A level sender is also included which must be installed in the float gauge located on the tank. The LPG tank does not have to be emptied or purged to install the sender. Its’ universal design fits any gauge that has an R3D dial which allows you to check the LPG level at the tank.
- Monitors 2 LPG Tank Levels (Sensor for second tank optional).
- State-of-the-art intelligent microprocessor based electronics.
- Hi/Lo alarm set points programmable using built-in pushbuttons.
- Analog Output for each channel, 0-5 VDC standard, 4-20 mA optional.
- RS232 Serial Interface for direct connection to PC/RTU or PLC.
- NEMA 4 enclosure suitable for outdoor use.
- One LPG sensor included to fi t float gauge with Junior tabbed dial.
- Large LCD readout indicating Level, Low Set Point and High set Point for each channel.
- Will work with any gauge that has an R3D dial installed.
- One Form “C” (NC-C-NO) contact available for each channel. Contact rating 120 VAC @ 3 Amps.
- Operates on 12 to 24 VDC power and a 120 VAC wall transformer is included for AC operation.
