- Inlet (1 Port) / Outlet (3 Ports): 1/4" FNPT
- Outlet Pressure Range (PSIG): 0 - 120

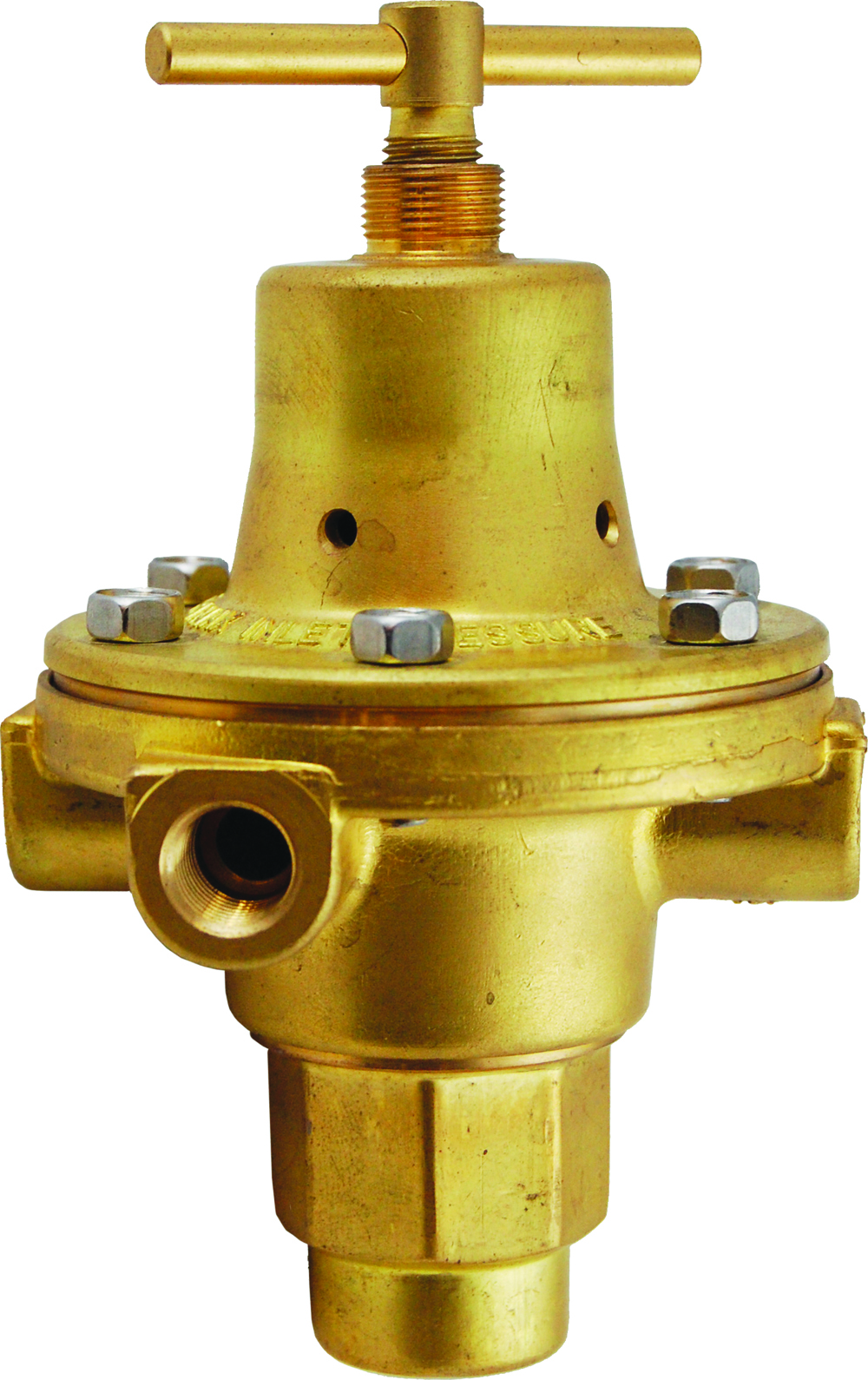

The MEGR-11301F is a reliable and accurate regulator making it ideal for numerous high pressure applications. This multi-purpose regulator can be used as a pilot supply or pressure-loading regulator where high pressure operating medium must be reduced for use by gas regulator pilots or pressure-loaded regulators. Its rugged design and multiple outlet ports offer versitility for a wide variety of applications.
Specifications:
• Type: Adjustable / PSI.
• Max. Inlet Pressure: 5500 PSI.
• Inlet Connection: 1/4” FNPT (1 Port).
• Outlet Connection: 1/4” FNPT (3 Ports).
• Exterior Finish: Brass.
• Bonnet/Body Material: Brass.
• Bottom Cap and Spring Case: Brass.
• Gasket: Nitrile (NBR).
• Valve Spring: Stainless Steel.
• Diaphragm: Stainless Steel.
• Valve Disks: Nylon.
• Vent: 4 Holes (5/32” each).
• Temp. Range: -40° F. / 225° F.
