- Outlet Pressure Range, Inches W.C./ mbar: 0.5 to 2.7 psi (34 to 186 mbar)
- Orifice Size, Inches / mm: 0.094 (2,4)
- Outlet Pressure Setting: 1.5 PSI (103 mbar)
- Inlet/Outlet Connection Style: 1/4” x 3/8” FNPT
⚬ Vent Orientation: Over Outlet
⚬ BTU/H LPG @ 100 PSI Inlet: 297,814
WC = Water Column.
Note: Other configurations & materials available upon request.

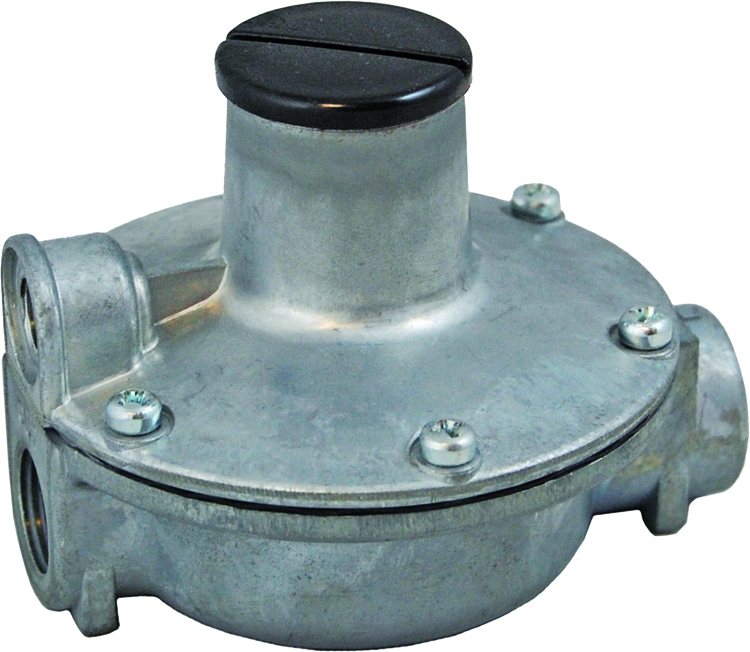

The MEGR-1912 Series UL Listed regulators are direct-operated, spring-loaded models designed for use in a variety of service and industrial applications. These regulators have limited-capacity internal relief across the diaphragm to help minimize over pressurization.
The MEGR-1912 Series with capacity ratings of less than 320,000 BTU/hr (129 scfh), are often used on small portable outdoor appliances.
Underwriters Laboratories requires horizontally mounted regulators to be installed with vent opening protection to prevent blockage by freezing rain.
Specifications:
• Type: Single Stage.
• Max. Inlet Pressure: 250 PSI.
• Vent Screen: Monel.
• Gasket: CGR 2750.
• Relief Valve: Brass & Zinc.
• Control & Relief Valve Spring: Plated Steel.
• Diaphragm Assembly: Nitrile (NMR) with Zinc Disk.
• Spring Case: Die Cast - Zinc.
• Spring Seat: Plated Steel.
• Diaphragm Plate: Plated Steel.
• Body Material / Lower Casting: Die Cast - Zinc.
• Temperature Range: -20° to 170° F.
• Approximate Weight: 1.3 lbs.
• Listings: Select models are UL Listed / UL 144.
