- Outlet Pressure Setting, PSIG: 20
- Outlet Adjustment Range, PSIG: 0 - 30
- BTU/H LPG @ 60 PSI Inlet: 3,405,000 *
- BTU/H LPG @ 100 PSI Inlet: 4,755,000 *
- Part Description: 1/2" FNPT X 1/2" FNPT Adjustable w/Internal Relief Valve
*BTU/H Capacity @ 20% Droop.

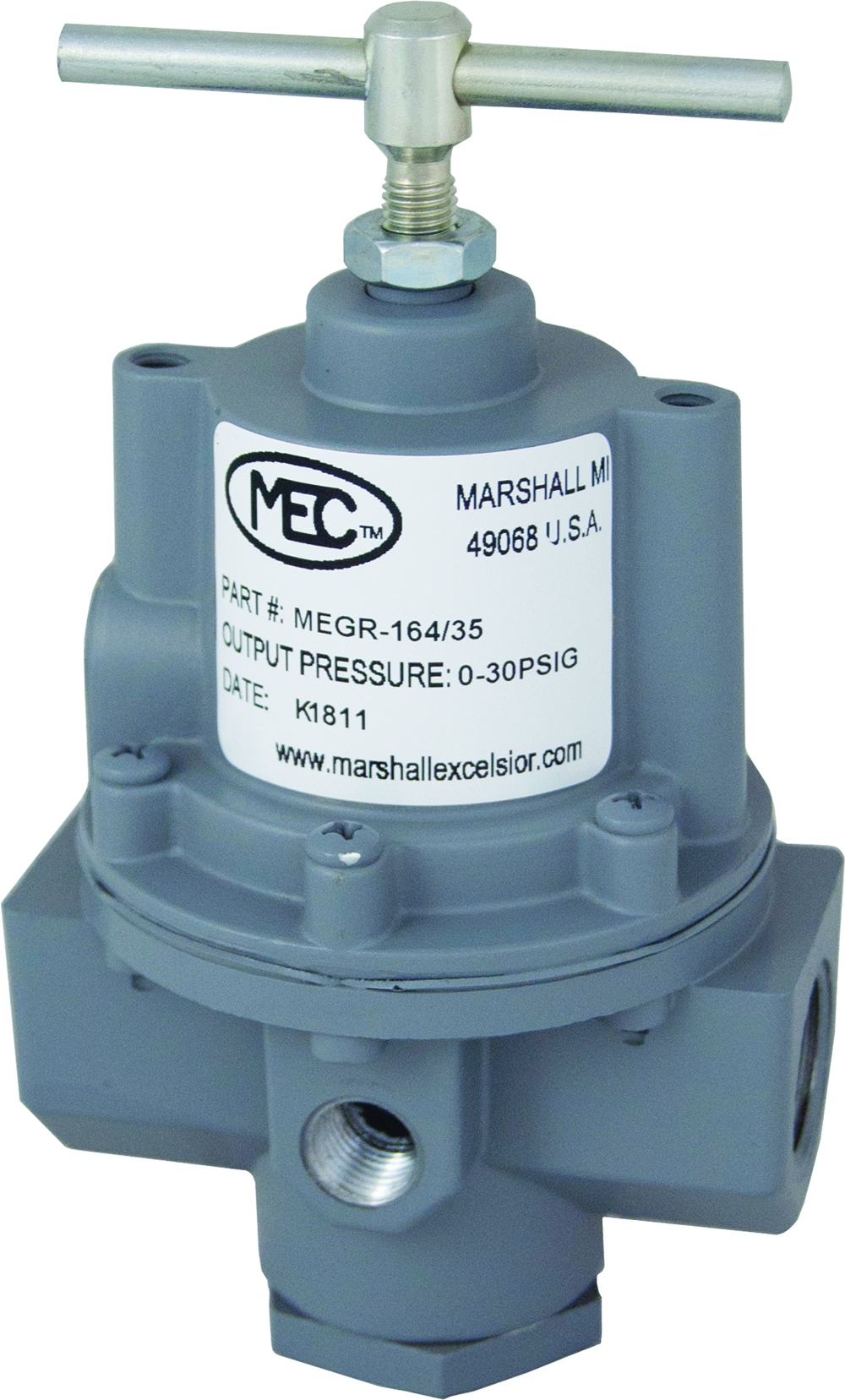

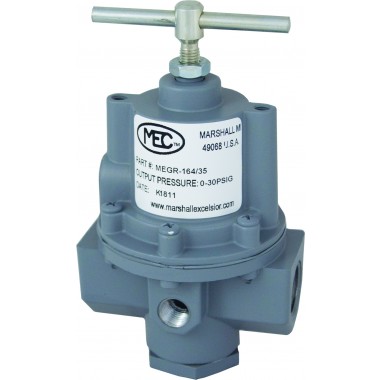

The MEGR-164 Series adjustable high-pressure regulators offer a wide selection of available pressure ranges. High pressure regulators are typically used to reduce tank pressure to an intermediate pressure for use by another regulator. They may be used as high pressure regulators on distribution systems when used in conjunction with first-stage downstream regulators.
When equipped with an integral relief valve (MEGR-164SR Series), the regulator may be used as a final-stage regulator on high pressure systems. It may also be used as a first-stage regulator when set at 10 PSIG (0,69 bar) or less. The 1/4”-inch FNPT tapped side outlet can be used to install a pressure gauge or a hydrostatic relief valve.
Specifications:
• Type: Adjustable / PSI.
• Max. Inlet Pressure: 250 PSI.
• Inlet Connection: 1/2” FNPT or 3/4” FNPT.
• Outlet Connection: 1/2” FNPT or 3/4” FNPT.
• Exterior Finish: Gray Urethane.
• Regulator Spring: Steel.
• Stem Guide/Disk Holder: Stainless Steel.
• Diaphragm: Fabric Reinforced Nitrile (NBR).
• Bonnet/Body Material: Cast Aluminum.
• Vent: Non-Relieving.
• Operating Temperature Range: -40° to 200° F.
• Listings: UL LISTED / UL 144.
