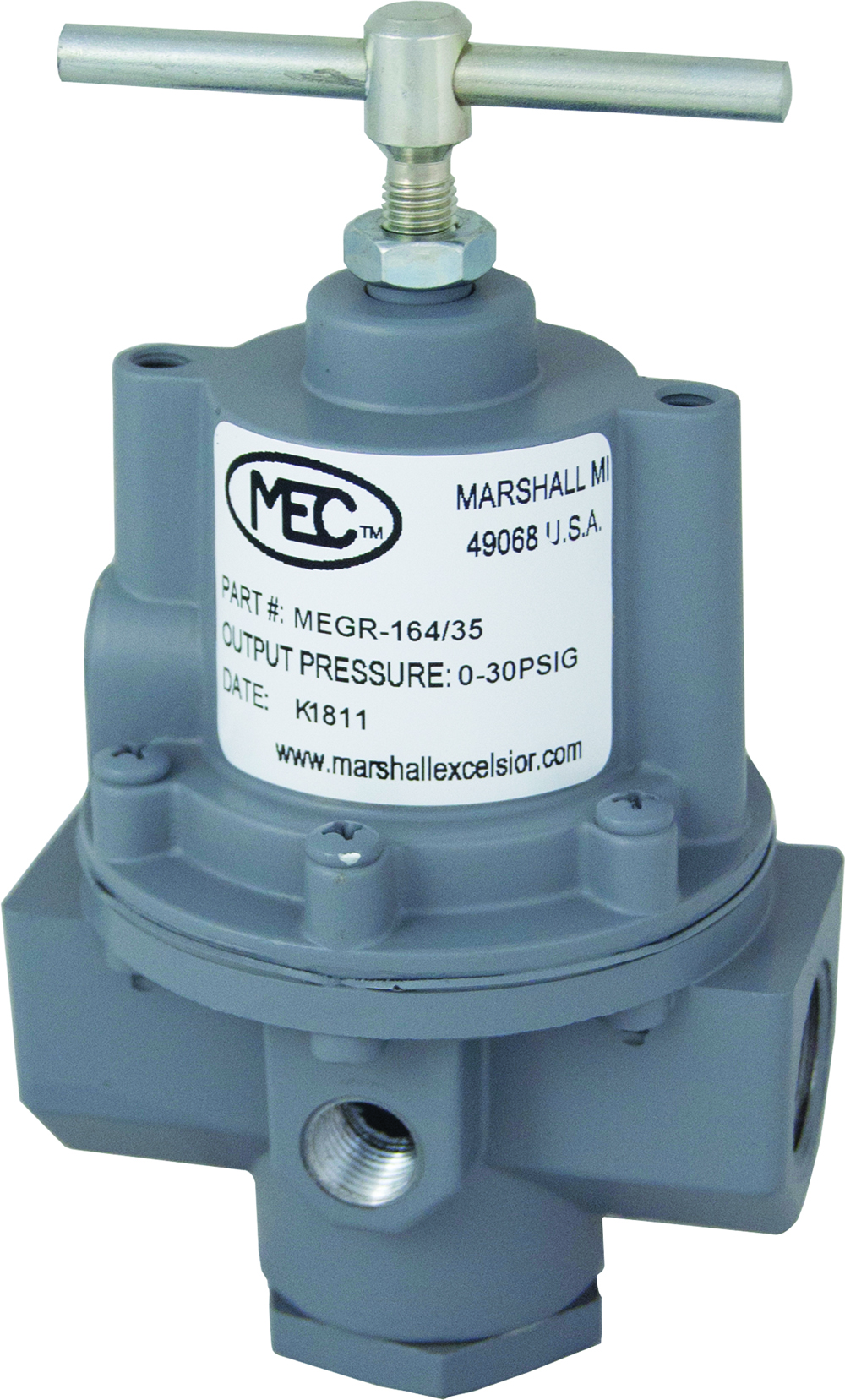

MEC 1/2" High Pressure Regulators
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Part Description | Outlet Pressure Setting, PSIG | Outlet Adjustment Range, PSIG | BTU/H LPG @ 60 PSI Inlet | BTU/H LPG @ 100 PSI Inlet |
|---|---|---|---|---|---|---|
| 151174 | MEGR-164/33 | 1/2" FNPT X 1/2" FNPT Adjustable | 10 | 0 - 30 | 6,098,000 * | 6,800,000 * |
| 151178 | MEGR-164/35 | 1/2" FNPT X 1/2" FNPT Adjustable | 20 | 0 - 30 | 6,400,000 * | 8,335,000 * |
| 151182 | MEGR-164/36 | 1/2" FNPT X 1/2" FNPT Adjustable | 40 | 0 - 60 | 6,100,000 * | 9,145,000 * |
| 151170 | MEGR-164/222 | 1/2" FNPT X 1/2" FNPT Adjustable | 50 | 0 - 125 | 4,900,000 * | 7,225,000 * |
| 151168 | MEGR-164SR/21 | 1/2" FNPT X 1/2" FNPT Adjustable w/Internal Relief Valve | 10 | 0 - 15 | 4,675,000 * | 7,825,000 * |
| 151194 | MEGR-164SR/22 | 1/2" FNPT X 1/2" FNPT Adjustable w/Internal Relief Valve | 15 | 0 - 30 | 3,050,000 * | 4,125,000 * |
| 151196 | MEGR-164SR/23 | 1/2" FNPT X 1/2" FNPT Adjustable w/Internal Relief Valve | 20 | 0 - 30 | 3,405,000 * | 4,755,000 * |
