- Inlet: 3/4" FNPT
- Outlet: 3/4" FNPT
- Outlet Pressure Range: 9 - 13" W.C.
- Outlet Pressure Setting: 11" W.C.
- Capacity in BTU/H LPG: 975,000 *
Case Quantity: 10 Pcs.
Angle Mount
* Capacity in BTU per hour LPG:
Based on 25 psig inlet pressure & 2" W.C. droop.
Maximum Allowable Inlet Pressure: 40 PSIG
Maximum Emergency Inlet Pressure: 50 PSIG
Orifice Size: 7/32"
Vent size: 3/4" NPT
Pressure Registration: Internal
Temperature Capabilities: -20°F to 160°F (1)

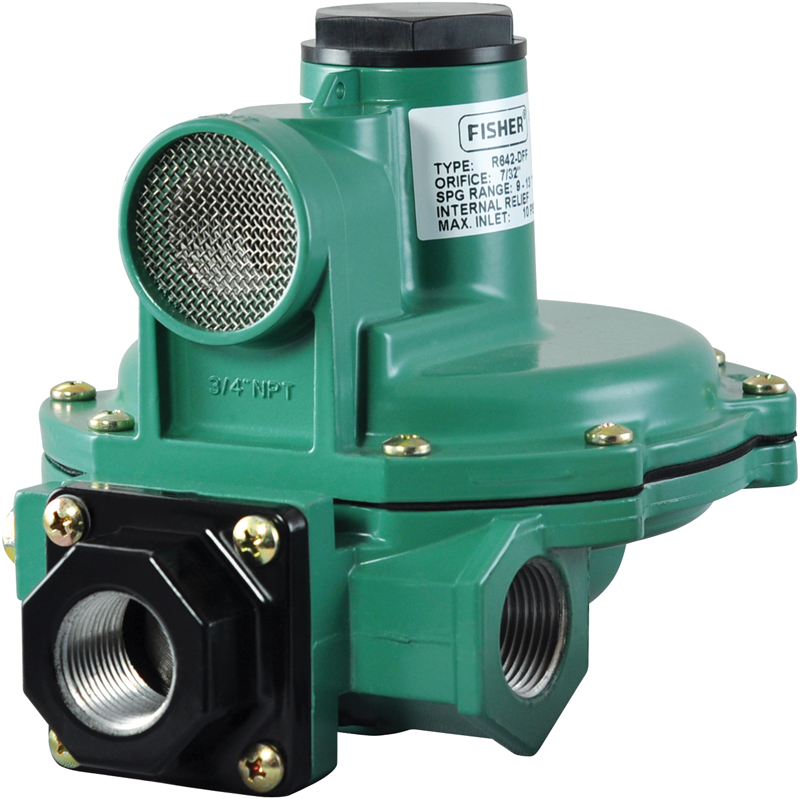

Type R642 - Second-stage angle body regulators are designed to reduce the outlet pressure from a first-stage regulator to 11" W.C., in propane installations. These regulators are intended for Jurisdictional Systems where the pressure coming from the first-stage is higher than 10 psig. Based on the R600 Series product line, the RJ600 Series offers the same features, benefits and proven performance; The maximum inlet was increased in order to meet the requirements of a Jurisdictional System. Screened drip-lip vent has standard orientation over the inlet with other orientations available. RJ600 Series regulators are painted palm green for easy identification.
1. Product has passed Fisher® testing for leakage down to -40°F / -40°C.
