- Inlet: 1/2" FNPT
- Outlet: 1/2" FNPT
- Capacity in BTU/H LPG: 1,210,000 *
- Outlet Adj. Range (PSI): 5 - 20
- Outlet Set Point (PSI): 10

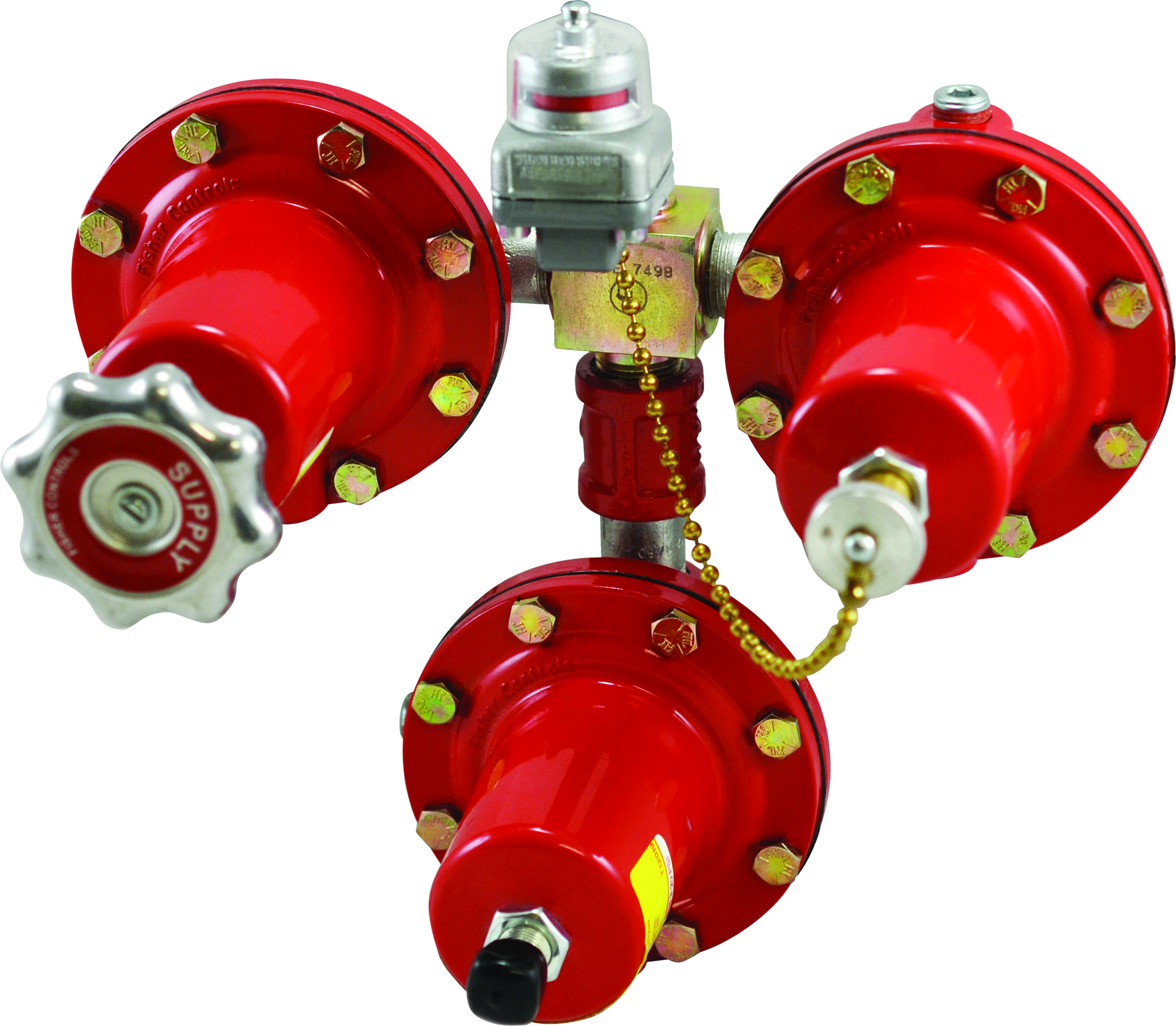

Designed for large capacity multi-cylinder or tank installations, these regulators are used on applications such as bakeries, motels, restaurants and grain dryers. The manifold portion of the assembly consists of two 64 Series regulators and a direct mounted 803 Series indicator. Temperature rating for the Type 64SR-122 is -20 to 150°F.
Type 64SR-122 – For high pressure (pounds-to-pounds) service with the outlet pressure supplied by a Type 64SR that has internal relief protection.
