- Inlet & Outlet: 1/4" FNPT
- Part Description: Dial Cap Adjustment
- Capacity in BTU/H LPG: 1,000,000 *
- Outlet Adj. Range (PSI): 40 - 100
- Outlet Set Point (PSI): 50
Case Quantity: 10 Pcs.
* Capacity in BTU per hour LPG:
Based on inlet pressure 20 psig greater then outlet with 20% droop;
Liquid capacity = 3 - 5 GPH.

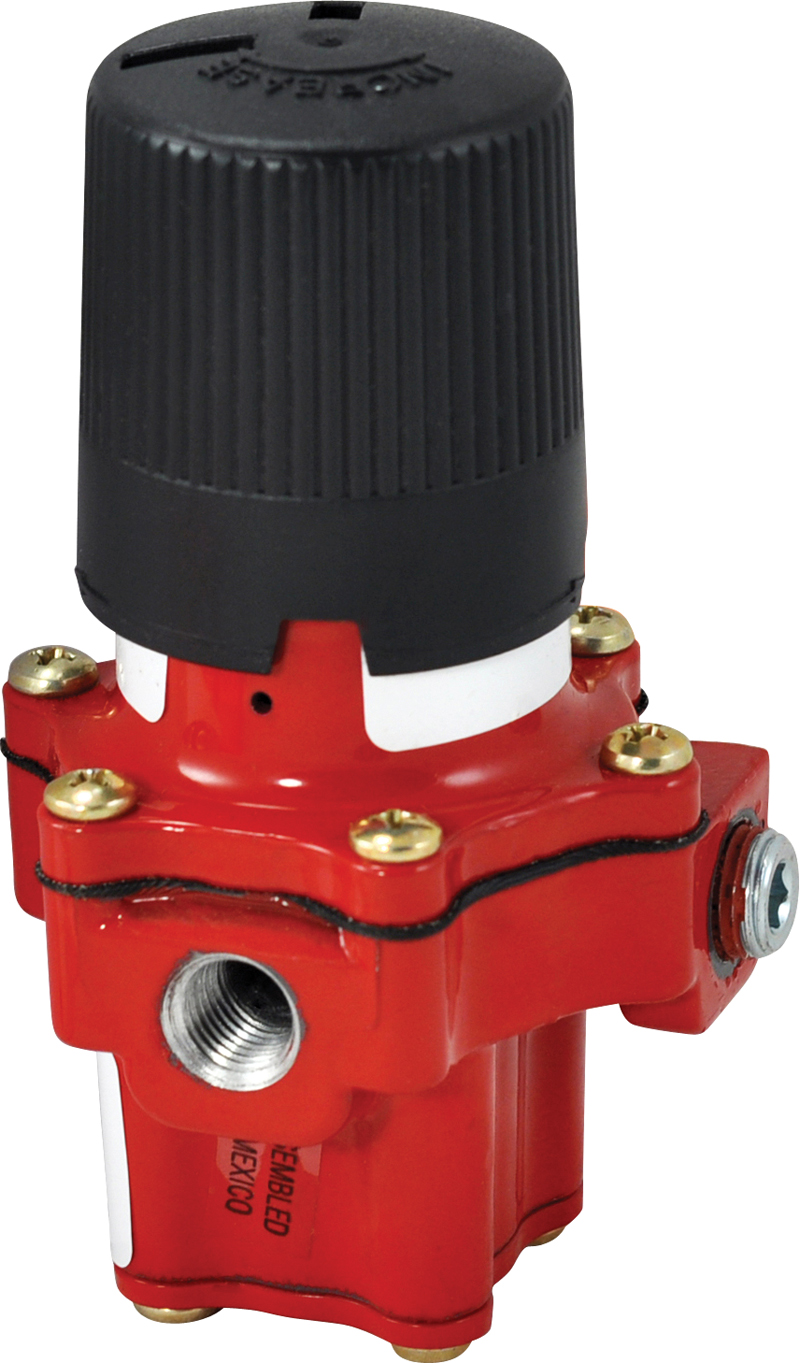

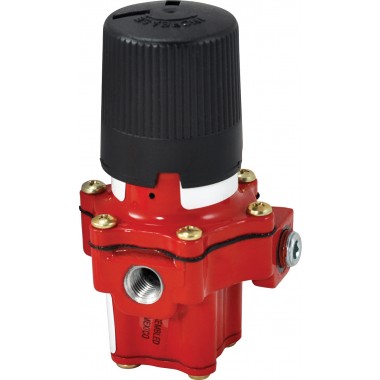

Suitable for liquid or vapor service, the 67C Series high-pressure (pounds-to-pounds) regulators are used on a variety of applications. All types within the series have a 1/4-inch FNPT side outlet in which a pressure gauge (J500 Series) can be installed. The compact size of the 67C Series regulators make them particularly useful on installations where space is limited. The regulator design utilizes precise guiding of the valve plug to provide close regulation and high performance. The LP-Gas 67C Series has a temperature rating of -20 to 180°F.
Type 67CD – With dial calibration accuracy nearly equivalent to that of a commercial pressure gauge, the Type 67CD eliminates the need for a pressure gauge on portable applications.
Note: 67C Series regulators do not have an internal relief and should be installed with additional/external overpressure protection. These units should not be installed in fixed piping serving 14 inches w.c. appliance systems. Please consult with your Salesman for more information.
