- Inlet: 3" FNPT
- Outlet: 3" FNPT
- LP-Gas Flow Rate: 55-190 GPM
- NH3 Flow Rate: 120-168 GPM
Shaft Size: 1 1/8"
Max. RPM: 750

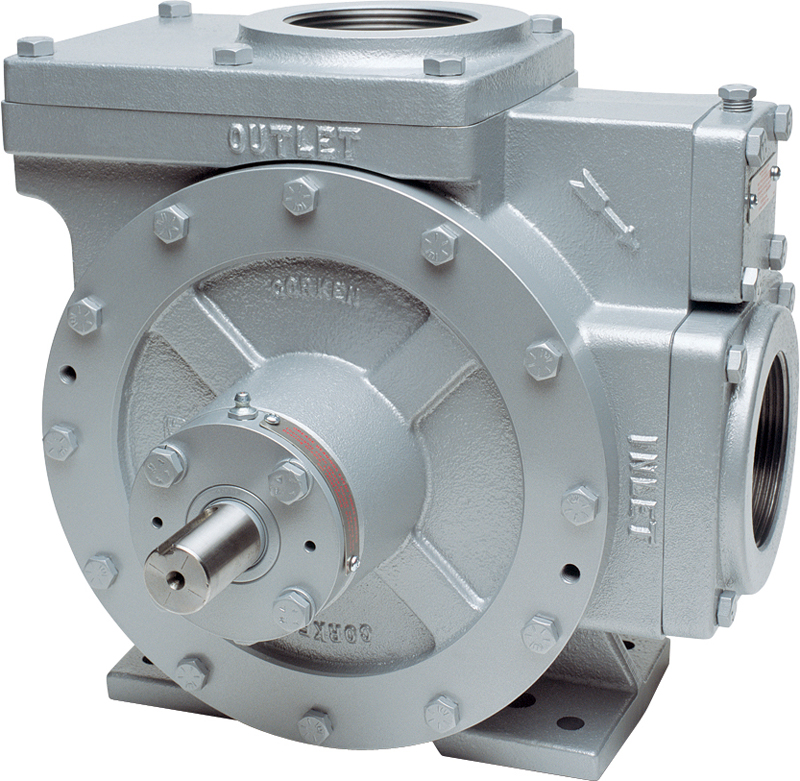

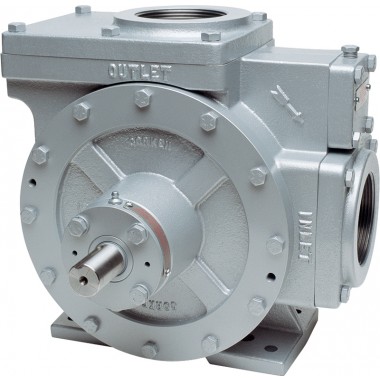

The Z3500 is a replacement for Corken 1021 & Blackmer LGLD3.
Z3500 With Base - 140131
Z3500 Bearing Cap (Qty. 2) - 145001
Z3500 Bearing Cap Shim (.002") Red (Qty. 2) - 140502
Z3500 Bearing Cap Shim (.010") Brown (Qty. 2) - 140356
Z3500 Bearing Cap Shim (.020") Yellow (Qty. 2) - 140503
Z3500 Bearing Outer Race (Qty. 2) - 140827
Z3500 Bearing Race Mounting Ring (Qty. 2) - 140501
Z3500 Cam - 140184
Z3500 Cam Key Pin (Qty. 2) - 140708
Z3500 Case O-Ring - Buna-N (Qty. 2) - 140955
Z3500 Coro-Vane Shaft Cover - 140603
Z3500 Flange - 3" NPT (Qty. 2) - 140651
Z3500 3" Flange O-Ring - Buna-N (Qty. 2) - 140946
Z3500 Grease Seal (Qty. 2) - 140511
Z3500 Grease Zerk - 1/8" NPT (Qty. 2) - 140862
Z3500 Hex Head Bolt - 3/8-16 X 1 1/4" (Qty. 24) - 140540
Z3500 Hex Head Bolt - 3/8-16 X 1 1/2" (Qty. 16) - 140546
Z3500 Lubricap (Qty. 2) - 140817
Z3500 Oil Seal (Qty. 2) - 140787
Z3500 O-Ring - Buna-N - 140631
Z3500 Relief Fitting - 1/8" NPT (Qty. 2) - 140725
Z3500 Relief Valve - 140656
Z3500 Relief Valve Cap O-Ring - Buna-N - 140939
Z3500 Repair Kit - 140202
Z3500 Retainer Ring (Qty. 2) - 140854
Z3500 Rotor & Shaft Assembly - 140659
Z3500 Seal Assembly (Qty. 2) - 140394
Z3500 Shaft Key - 1/4" X 1 9/16" (Qty. 2) - 140813
Z3500 Sideplate (Qty. 2) - 141033
Z3500 Thrust Bearing Assembly (Qty. 2) - 140500
Z3500 Vane (Qty. 6) - 141152
