- Inlet: 1 1/2" FNPT
- Outlet: 1" FNPT
- Motor Specs: 3 HP Single Phase 230/460 Volt 50/60 Hertz
- GPM Thru Meter: 30
Weight: 126 Lbs.
Service Fill Time 20# Cylinder: -----
Service Fill Time 100# Cylinder: 1 1/2 Minutes

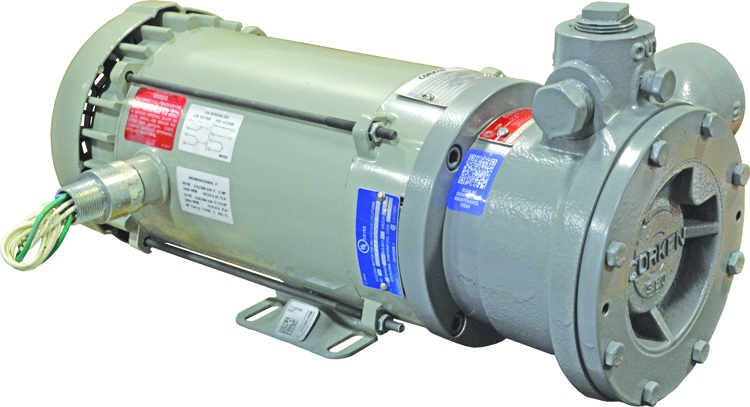

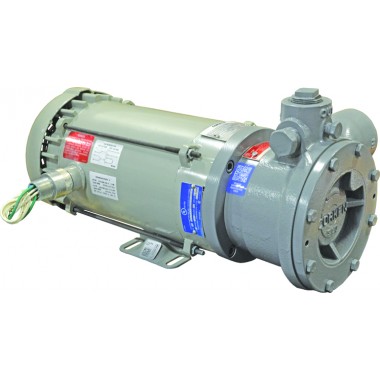

Pump & Motor.
C14 Bronze Impeller - 140557
C14 Case Clearance Shim (.002” Red) (Qty. As Req.) - 140560
C14 Case Clearance Shim (.003” Green) (Qty. As Req.) - 140561
C14 Case O-Ring - Buna-N - 140948
C14 Case O-Ring - Teflon® - 140966
C14 Hex Head Cap Screw (Qty. 8) - 140990
C14 Housing Adjustment Shim (.010”) (Qty. As Req.) - 140562
C14 Housing Adjustment Shim (.020”) (Qty. As Req.) - 140563
C14 O-Ring - Buna-N - 140938
C14 O-Ring - Teflon® - 140965
C14 Seal Assembly - 140525
C14 Seal Housing - Steel (Non-Teflon® O-Rings) - 140558
C14 Socket Head Cap Screw - 3/8-16 X 7/8" (Qty. 8) - 140520
C14 Woodruff Key - Steel - 140677
