- Inlet: 1 1/2" FNPT
- Outlet: 1" FNPT
- Motor Specs: 2 HP Single Phase115/208/230 Volt 50/60 Hertz
- GPM Thru Meter: 15
Weight: 86 Lbs.
Service Fill Time 20# Cylinder: 15 to 30 Seconds
Service Fill Time 100# Cylinder: 2 to 3 Minutes

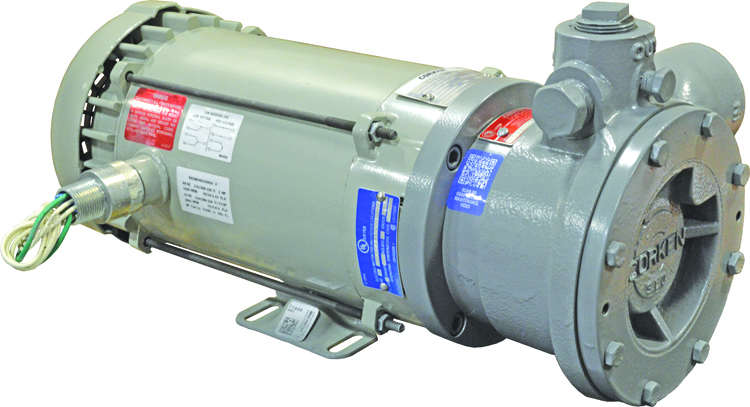

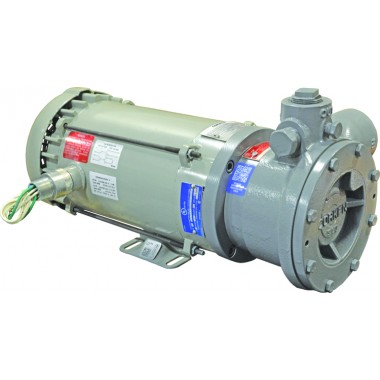

Pump & Motor.
C12 Bronze Impeller - 140555
C12 Case Clearance Shim (.002” Red) (Qty. As Req.) - 140560
C12 Case Clearance Shim (.003” Green) (Qty. As Req.) - 140561
C12 Case O-Ring - Buna-N - 140948
C12 Case O-Ring - Teflon® - 140966
C12 Hex Head Cap Screw (Qty. 8) - 140990
C12 Housing Adjustment Shim (.010”) (Qty. As Req.) - 140562
C12 Housing Adjustment Shim (.020”) (Qty. As Req.) - 140563
C12 Motor 1 HP Model 12 - 140857
C12 O-Ring - Buna-N - 140938
C12 O-Ring - Teflon® - 140965
C12 Seal Assembly - 140525
C12 Seal Housing - Steel (Non-Teflon® O-Rings) - 140558
C12 Socket Head Cap Screw - 3/8-16 X 7/8" (Qty. 8) - 140520
C12 Woodruff Key - Steel - 140677
Teflon® is a trademark of DuPont Company.
