- Inlet: 1 1/4" FNPT
- Outlet: 1" FNPT
- Motor Specs: 2 HP Single Phase115/208/230 Volt 50/60 Hertz
- GPM Thru Meter: 7
Weight: 76 Lbs.
Service Fill Time 20# Cylinder: 30 Seconds to 1 Minute
Service Fill Time 100# Cylinder: 2 1/2 to 1 Minute

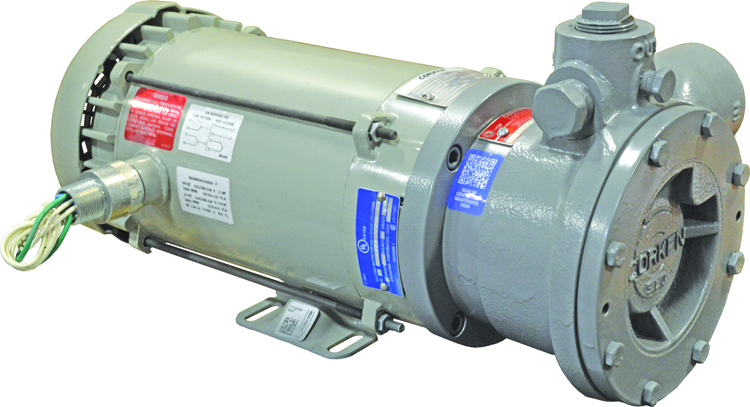

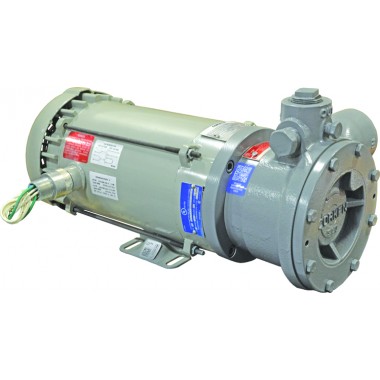

Pump & Motor.
C10 Bronze Impeller - 140550
C10 Case Clearance Shim (.002” Red) (Qty. As Req.) - 140560
C10 Case Clearance Shim (.003” Green) (Qty. As Req.) - 140561
C10 Case O-Ring - Buna-N - 140948
C10 Case O-Ring - Teflon® - 140966
C10 Hex Head Cap Screw (Qty. 8) - 140990
C10 Housing Adjustment Shim (.010”) (Qty. As Req.) - 140562
C10 Housing Adjustment Shim (.020”) (Qty. As Req.) - 140563
C10 Motor 3/4 HP Model 10 - 140856
C10 O-Ring - Buna-N - 140938
C10 O-Ring - Teflon® - 140965
C10 Seal Assembly - 140525
C10 Seal Housing - Steel (Non-Teflon® O-Rings) - 140558
C10 Socket Head Cap Screw - 3/8-16 X 7/8" (Qty. 8) - 140520
C10 Woodruff Key - Steel - 140677
