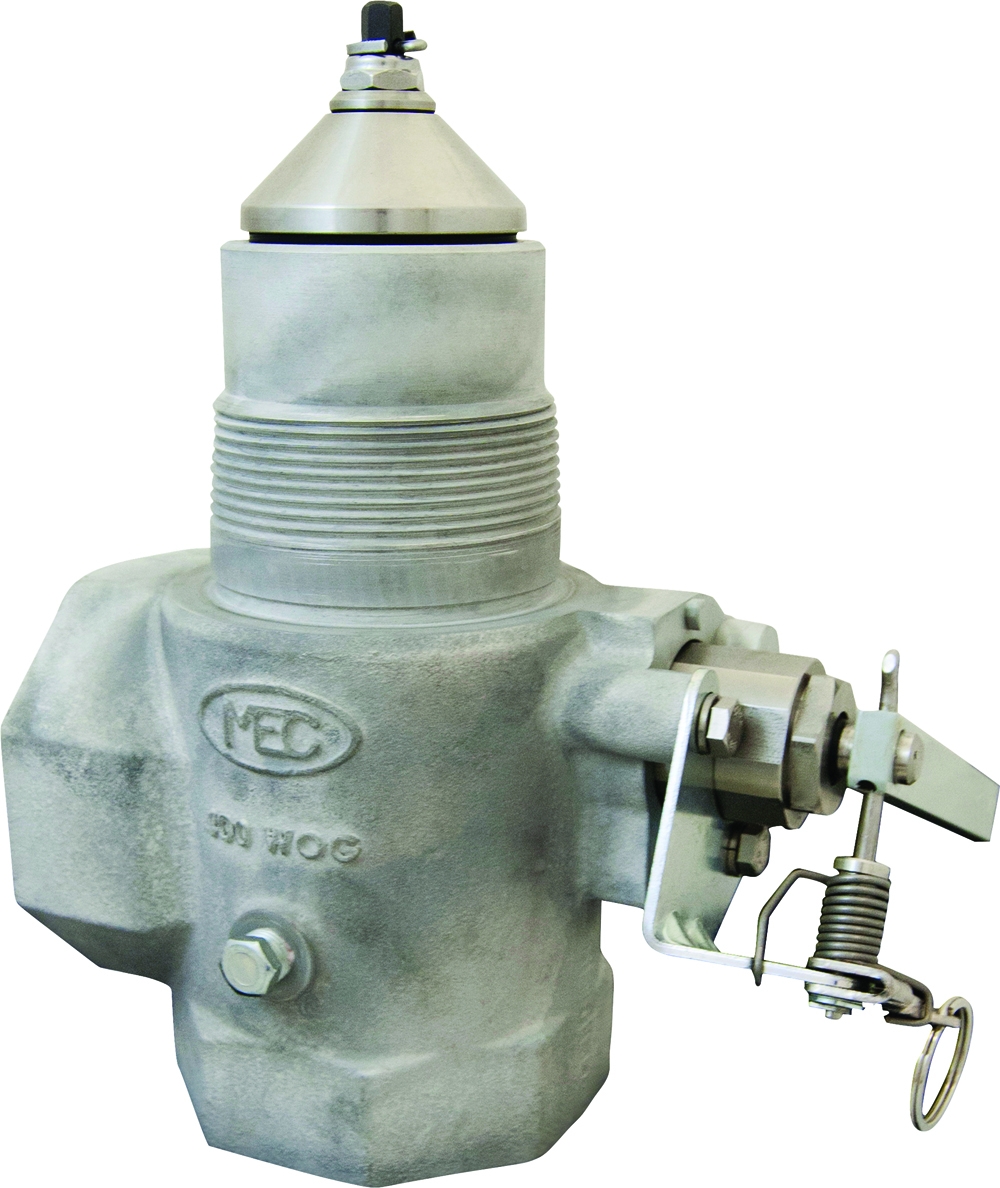

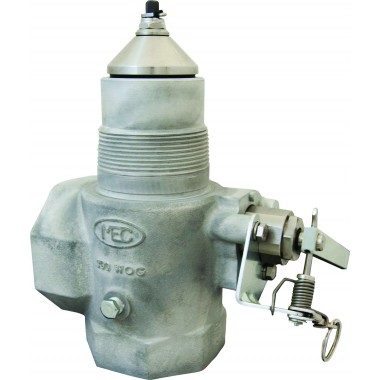

ME992M-24-400

• Tank Connection: 3" MNPT


• Outlet Connection: 3" FNPT (2)


• Actuation: Manual With MEP990-24


• Liquid Closing Flow Value: 400 GPM

Intended for use on transport trucks and large storage tanks with 3” threaded connections in directional or bi-directional flow applications. Provides both manual shut-down and excess flow closing in the event of the piping being seperated from the valve. Can be equipped with manual latch, pneumatic or rotary actuator open/closing devices. All valve models are equipped with a breakaway feature in the cast body which permits the piping to shear off in the event of side impact, leaving the valve poppet intact and protecting the tank from catastrophic product loss. The tee body features an additional FNPT side discharge port. For liquid or vapor service applications.

Features:
• Durable ductile body with cadmium surface plating.
• All stainless internal component construction.
• One piece threaded packing gland.
• Precision machined hard coated stem.
• Fully retained nitrile seat disc.
• Largest variety of excess flow closing values.
• Roller cam actuation.
• Industry’s fastest bleed time.
• Removable data plate.
• Industry’s easiest valve to service.
• Standard construction utilizes nitrile seals.
• Available with Neoprene, Viton®, or Kalrez® seals.
• UL LISTED for LPG & NH3 service.
• RulonTM bearings on stem and stub shafts.

Kalrez® & Viton® are a registered Trademarks of DuPont Performance Elastomers.
