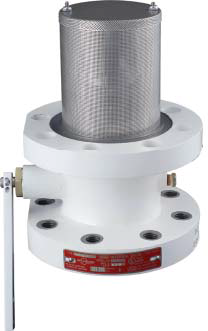

Fisher 3" Double Flanged Internal Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Closing Flow GPM / l/min Propane Bottom Of Tank Position | Closing Flow GPM / l/min Propane Top Of Tank Position | Vapor Capacity SCFH / SCMH Propane Standard Position | Vapor Capacity SCFH / SCMH Propane Inverted Position | Connections Inlet X Outlet |
|---|---|---|---|---|---|---|
| 120362 | C483-24-160 | 160 / 606 | 180 / 681 | 71,000 / 2,011 | 96,000 / 2,718 | 3” CL300 RF Modified Flange (4 5/8” Dia. Bore) x 3” CL300 RF Flange |
| 120371 | C483-24-260 | 265 / 1,003 | 290 / 1,098 | 127,000 / 3,568 | 148,000 / 4,191 | 3” CL300 RF Modified Flange (4 5/8” Dia. Bore) x 3” CL300 RF Flange |
| 120376 | C483-24-400 | 400 / 1,514 | 400 / 1,514 | 181,000 / 5,125 | 190,000 / 5,380 | 3” CL300 RF Modified Flange (4 5/8” Dia. Bore) x 3” CL300 RF Flange |
