- RPM: 640
- Frame Size: 256T
- 3 Phase Motor: 20 HP

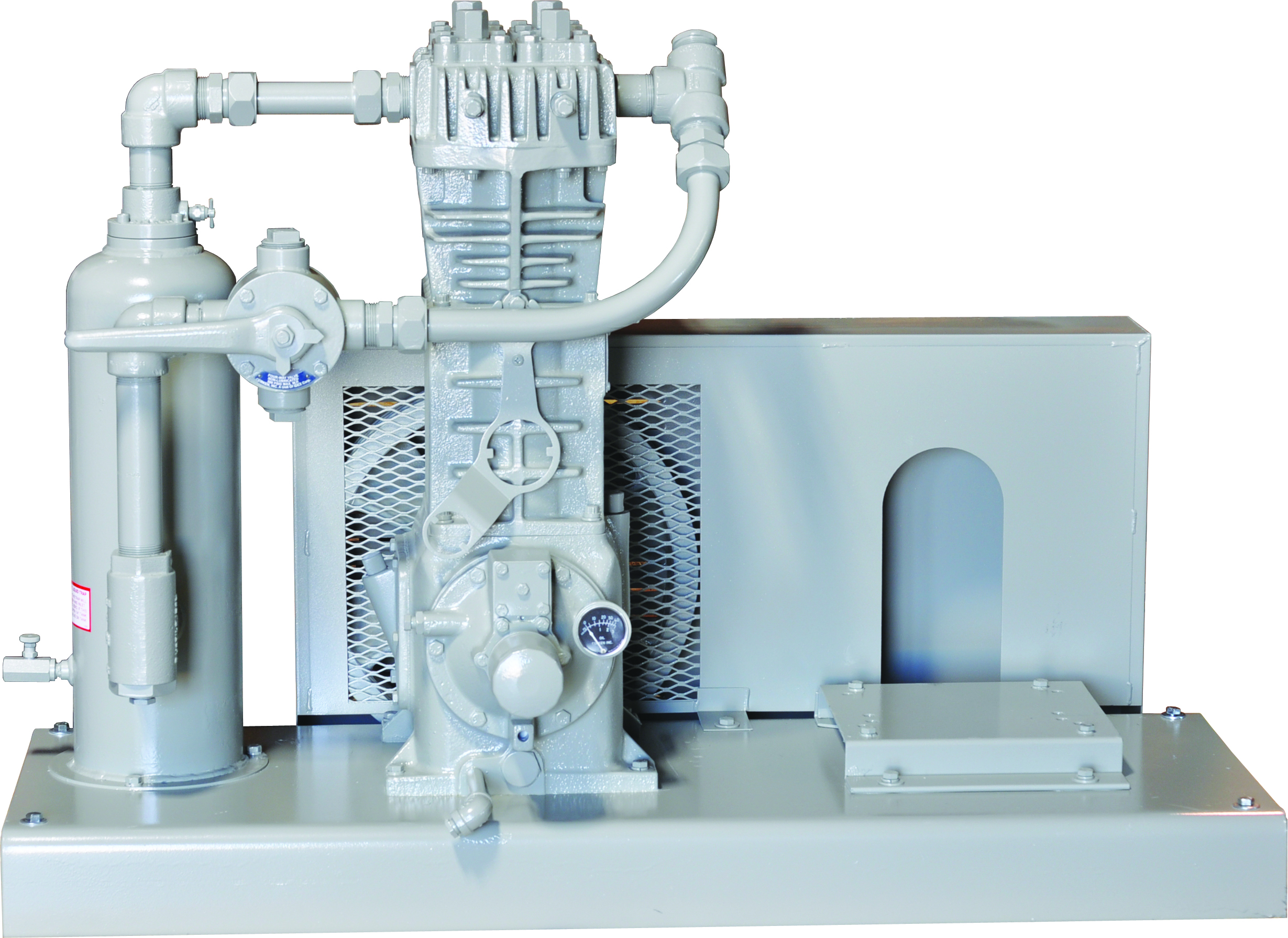

107 Style - Mounting includes steel baseplate, mechanical liquid trap, non-lube 4-way valve, interconnecting piping, strainer, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor.
Repair Kits & Gasket Sets Breakdowns
690 & 691 (2 1/8" Crankshaft) Parts
690M3 & 691M3 Case O-Ring - Buna-N (Qty. 2) - 140950
690M3 & 691M3 Connecting Rod Bearing (Qty. 2 Pair ) - 140901
690M3 & 691M3 Crosshead Assembly (Qty. 2) - 140892
690M3 & 691M3 Discharge Valve (Qty. 2) - 141026
690M3 & 691M3 Gasket Set - 141143
690M3 & 691M3 Oil Seal - 140786
690M3 & 691M3 Packing Set (Qty. 2) - 140782
690M3 & 691M3 Piston Rings (Qty. 6) - 140783
690M3 & 691M3 Repair Kit - 141030
690M3 & 691M3 Ring Expander (Qty. 6) - 140784
690M3 & 691M3 Suction Valve (Qty. 2) - 141023
690M3 & 691M3 Valve Cage (Qty. 4) - 140978
690 & 690 (1 5/8" Crankshaft) Parts
690K3 & 690P3 Connecting Rod Bearing (Qty. 2 Pair ) - 140739
690K3 & 690P3 Crosshead Assembly (Qty. 2) - 140993
690K3 & 690P3 Discharge Valve (Qty. 2) - 141026
690K3 & 690P3 Gasket Set - 141143
690K3 & 690P3 Head Gasket (Qty. 2) - 140976
690K3 & 690P3 Packing Set (Qty. 2) - 140782
690K3 & 690P3 Piston Rings (Qty. 6) - 140783
690K3 & 690P3 Repair Kit - 140923
690K3 & 690P3 Ring Expander (Qty. 6) - 140784
690K3 & 690P3 Suction Valve (Qty. 2) - 141023
690K3 & 690P3 Valve Cage (Qty. 4) - 140978
