- RPM: 695
- Frame Size: 215T
- 3 Phase Motor: 10 HP

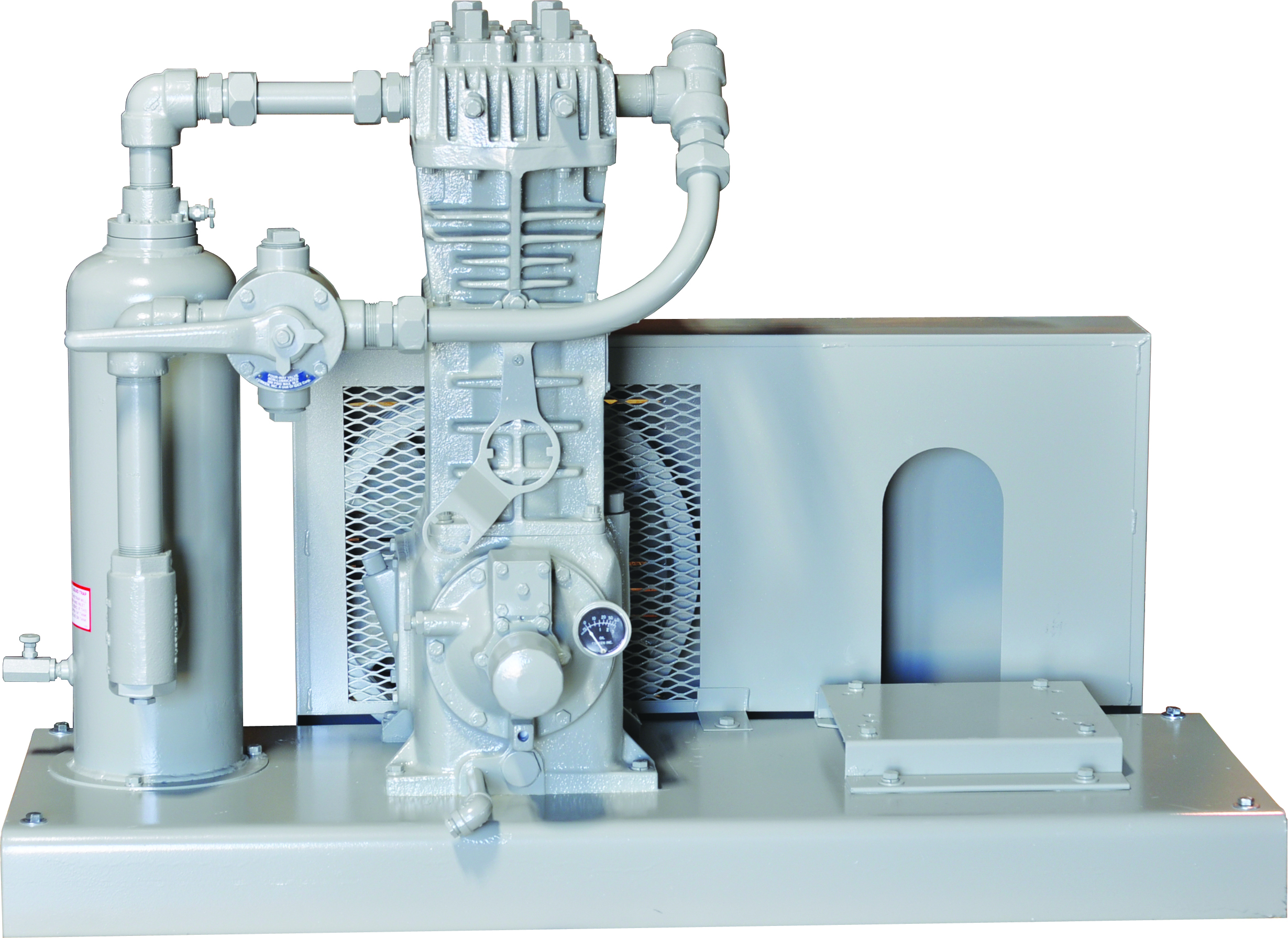

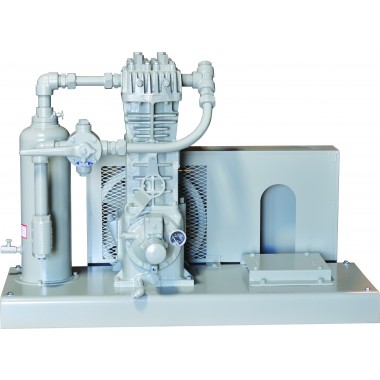

107 Style - Mounting includes steel baseplate, mechanical liquid trap, non-lube 4-way valve, interconnecting piping, strainer, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor.
291 Repair Kits & Gasket Sets Contents
291 Connecting Rod Bearing (Qty. 2 Pair) - 140735
291 Crosshead Assembly (Qty. 2) - 140605
291 Discharge Valve (Qty. 2) - 140914
291 Gasket Set - 140665
291 Oil Seal - 140667
291 O-Ring - Buna-N (Qty. 4) - 140944
291 Packing Set (Qty. 2) - 140745
291 Piston Assembly (Qty. 2) - 140969
291 Piston Rings (Qty. 6) - 140806
291 Repair Kit - 140921
291 Ring Expander (Qty. 6) - 140799
291 Suction Valve (Qty. 2) - 141061
