- Inlet: 2" FNPT
- Outlet: 3 1/4" Male Acme
- Material: Ductile / Steel
- Discharge @ Disconnect: .09 CC When Used w/ME806S-16
FOR USE WITH NH3 TRANSFER SYSTEMS
This revolutionary system provides a safe, ergonomic and effi cient solution to transfer applications while increasing productivity and dramatically reducing fugitive product emissions. For use with bobtail, transport, railcar and bulk plant applications.
LE™ is a Low Emission system when the ME806S-16 & the ME807S-16 are used together reduces the disconnect discharge to .09 CC.
Features:
• Reduces product emissions 99.6% over standard valve combinations.
• 100% compatible with all existing acme transfer connections.
• Heavy duty spring loaded safety latch prevents accidental opening of valve.
• Cam operated vapor equalization feature for smooth valve operation.
• All stainless internal components.
• Factory installed hydrostatic relief valve.
• Specially formulated low temperature valve seals for maximum performance and life under all operating
conditions.
• Integrated Back Check (IBC) feature to allow trapped liquid to be forced back upstream of the valve if
liquid is trapped downstream of the valve seat.
• Available with brass or steel acme connections.
• Designed for bi-directional flow of product.

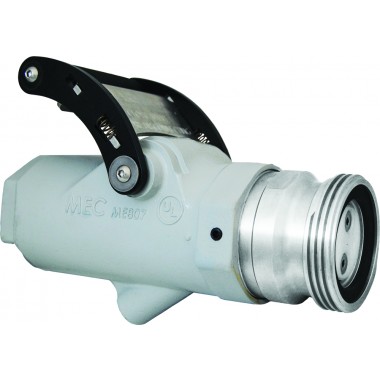

• Integrated pilot feature allows the ME807 to equalize and open only when connected to mating
connection ensuring maximum safety.
