- Inlet: 1" FNPT
- Outlet: 1 3/4" F. Acme
- Body Type: Globe
- Valve Release: .50 cc

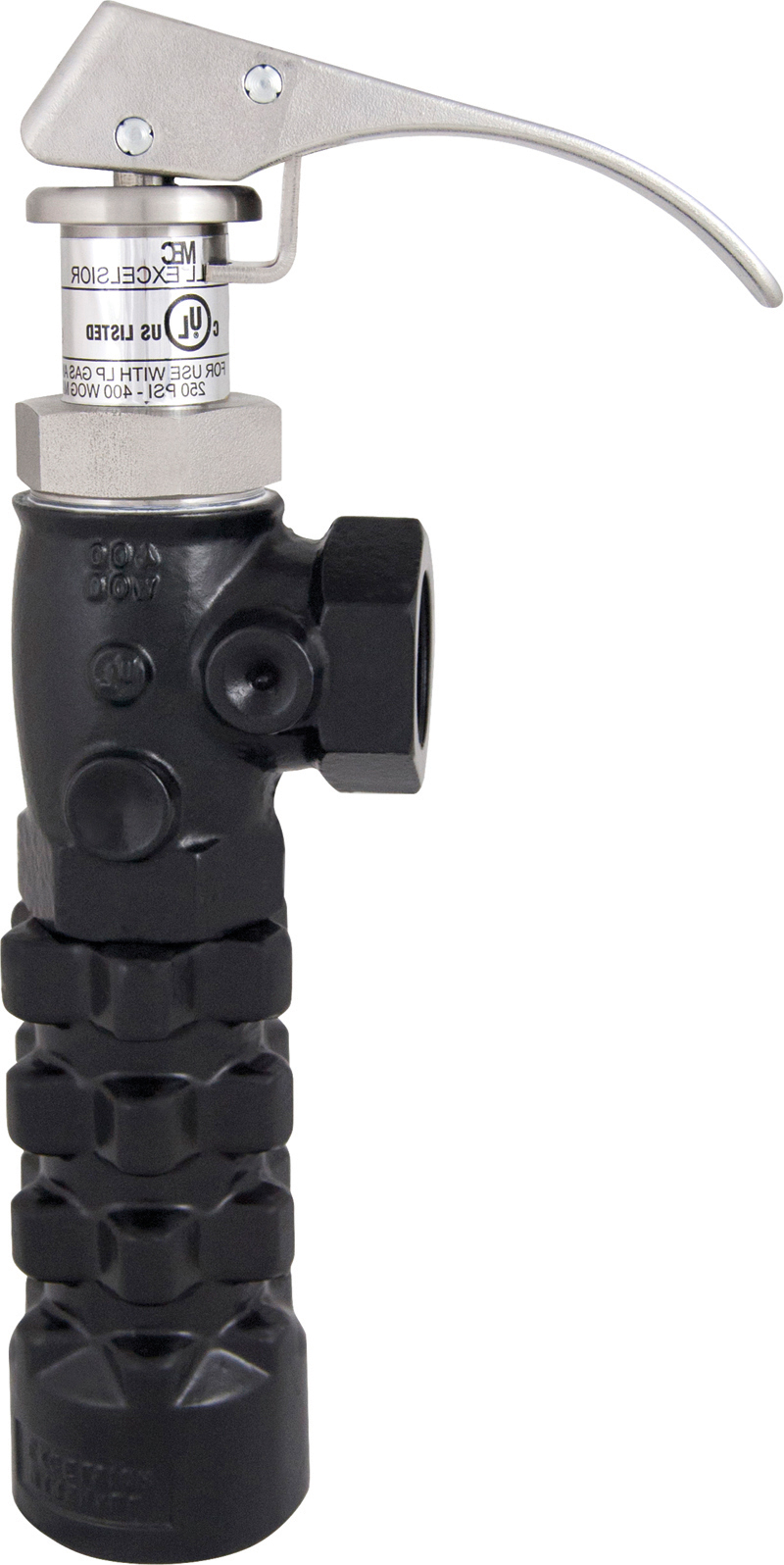

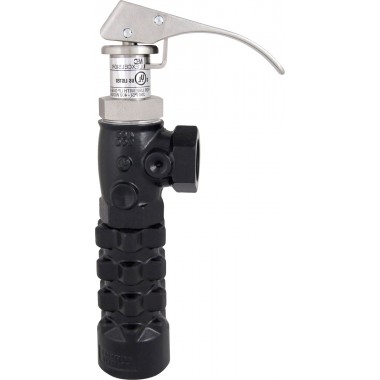

These hose end valves are leading the industry in minimal product loss during disconnect without sacrificing flow. They have instant full-on flow with the added protection of a quick closing, self-locking handle to prevent accidental opening of the valve during transport. They are designed to be used at the end of a filling hose on a bobtail, dispensing system or nurse tank.
Features:
• All stainless steel component construction.
• Molded and riveted on valve main seal.
• Vents less than .50cc for minimal loss of product at disconnect.
• Self-locking toggle handle prevents accidental valve opening.
• Toggle handle and stem assembly rotate 360°.
• Durable ductile iron valve body with automotive grade powder coat finish.
• Stainless steel 1-3/4” female Acme insert cast into the handle.
• No additional adapters or connectors needed for operation.
• Optional composite style offers a durable lightweight handle that is resistant to frosting and cold transfer during the filling operation.
• Optional factory installed EZTurn stainless steel swivel.
