- Inlet & Outlet: 2" FNPT

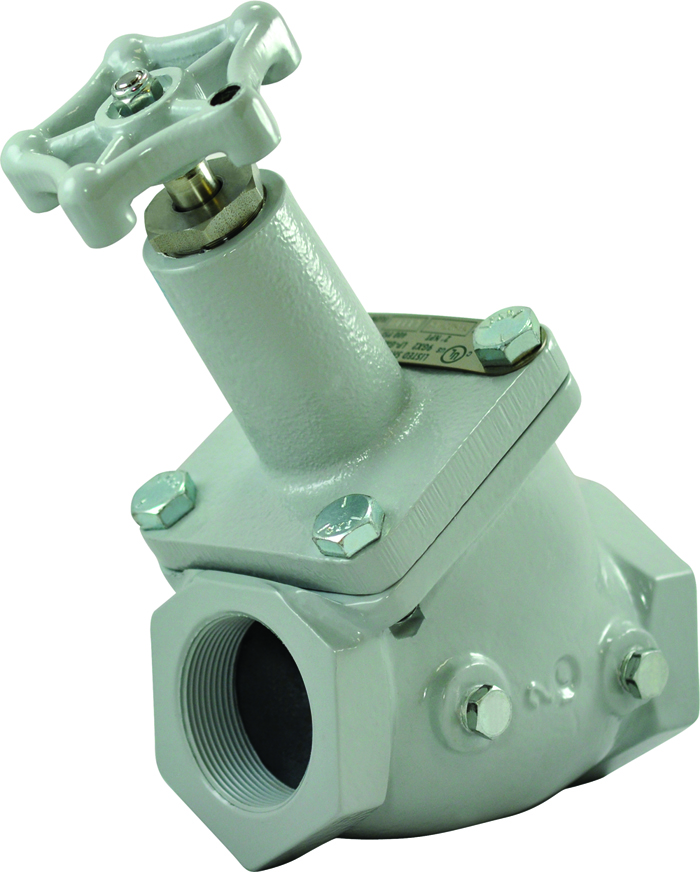

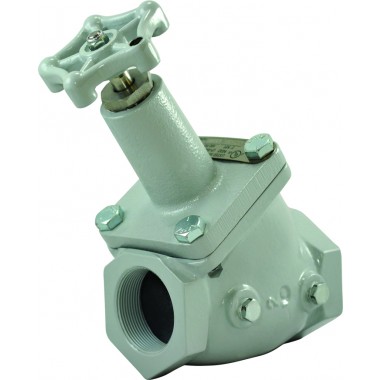

- Type: Globe
- Side Port: 1/4" FNPT
- Bottom Port: No

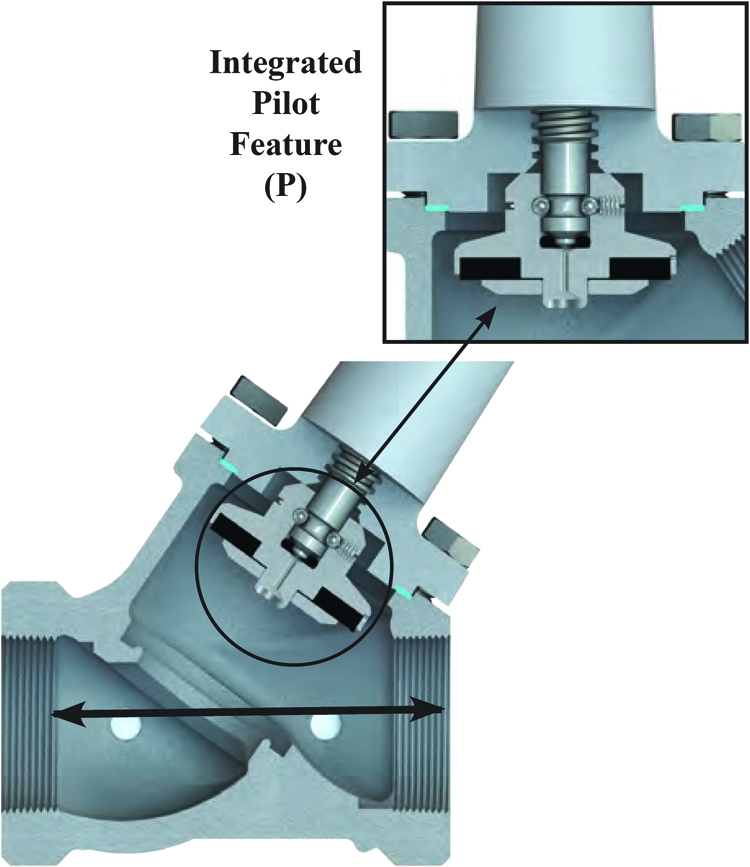

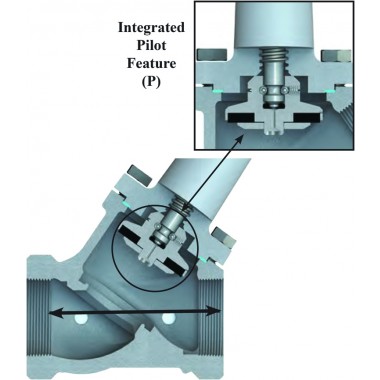

Pilot Feature: (P) These globe and angle valve models incorporate a pilot orifice feature to facilitate pressure equalization in sections of system piping that have bidirectional flow. This greatly reduces the opening torque required and prevents premature wear of the valve seat.
Features:
• All stainless steel internal components with rotating seat disc design & V-cup Teflon® packing stem seals.
• Double stem seal design ensures leak free operation.
• Double lead stem thread ensures quick and efficient operation.
• Durable ductile iron valve body with automotive grade powder coat finish.
• 1-1/4” & larger globe valves have 35° seat angle for maximum product flow.
• 1-1/4” & larger globe valve designed ergonomically correct for bobtail transport and bulk plant applications. • 1-3/4”, 2-1/4” & 3-1/4” Acme threads available on globe valves.
• Rated for 400 WOG.
• Operating temperature –40° to +212° Fahrenheit.
