- Inlet & Outlet: 4" 300 Lb.

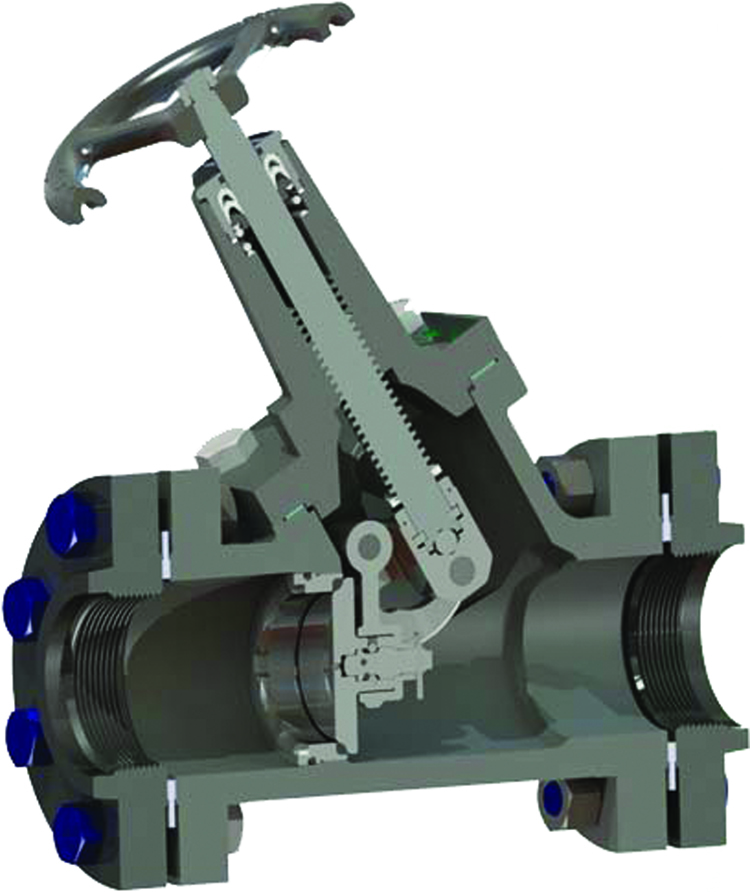

- Type: Flanged Globe
- Side Port: 1/4" FNPT
- Bottom Port: No
Provides a positive shut-off valve that is highly reliable with full flow performance.
Pilot Feature: (P) These globe and angle valve models incorporate a pilot orifice feature to facilitate pressure equalization in sections of system piping that have bidirectional flow. This greatly reduces the opening torque required and prevents premature wear of the valve seat.
Features:
• Has same great reliable and durable teflon stem packing glands as our other globe valves.
• Features exclusive slip cam construction for full port flow rates.
• All stainless steel internal component construction for maximum corrosion resistance.
• Removable bonded main seat disc assembly.
• Same overall length as ANSI ball valve.
