- Inlet & Outlet: 2" FNPT
- Side Port: 1/2" FNPT

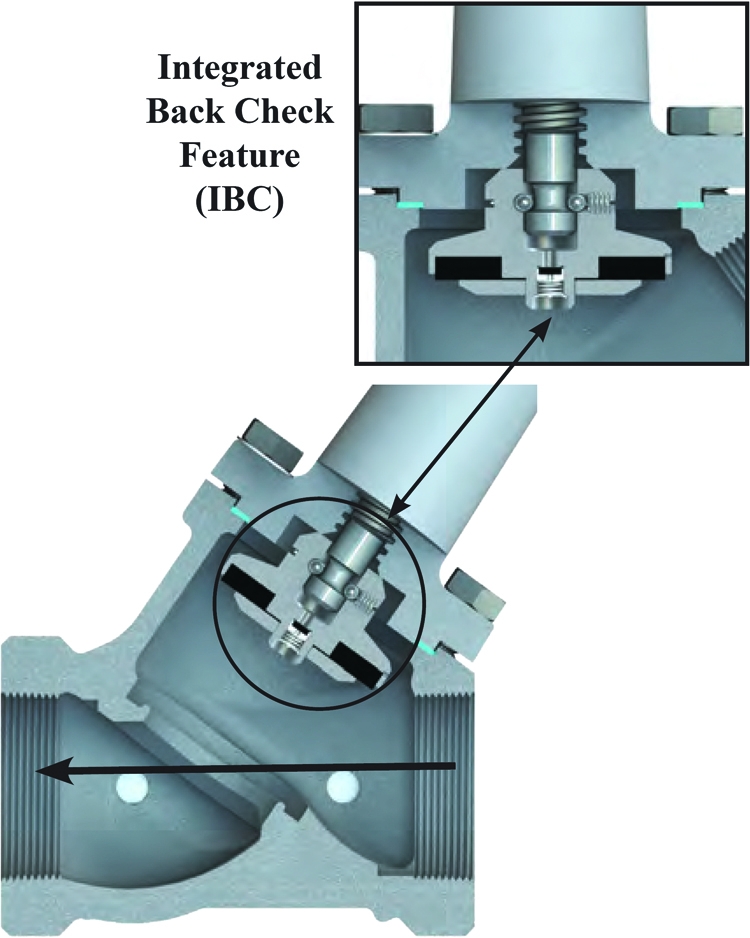

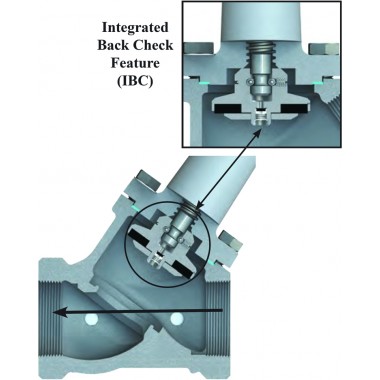

Integrated Back Check Feature: (IBC) These globe and angle valve models incorporate an integrated backcheck feature to allow trapped downstream pressure to automatically bypass to the upstream side of the valve. These valves are designed for systems with flow in one direction, creating a closed loop system that prevents the product from relieving to the atmosphere making for a low emission, more environmentally friendly option.
Features:
• All stainless steel internal components with rotating seat disc design & V-cup Teflon® packing stem seals.
• Double stem seal design ensures leak free operation.
• Double lead stem thread ensures quick and efficient operation.
• Durable ductile iron valve body with automotive grade powder coat finish.
• 1-1/4” & larger globe valves have 35° seat angle for maximum product flow.
• 1-1/4” & larger globe valve designed ergonomically correct for bobtail transport and bulk plant applications. • 1-3/4”, 2-1/4” & 3-1/4” Acme threads available on globe valves.
• Rated for 400 WOG.
• Operating temperature –40° to +212° Fahrenheit.
