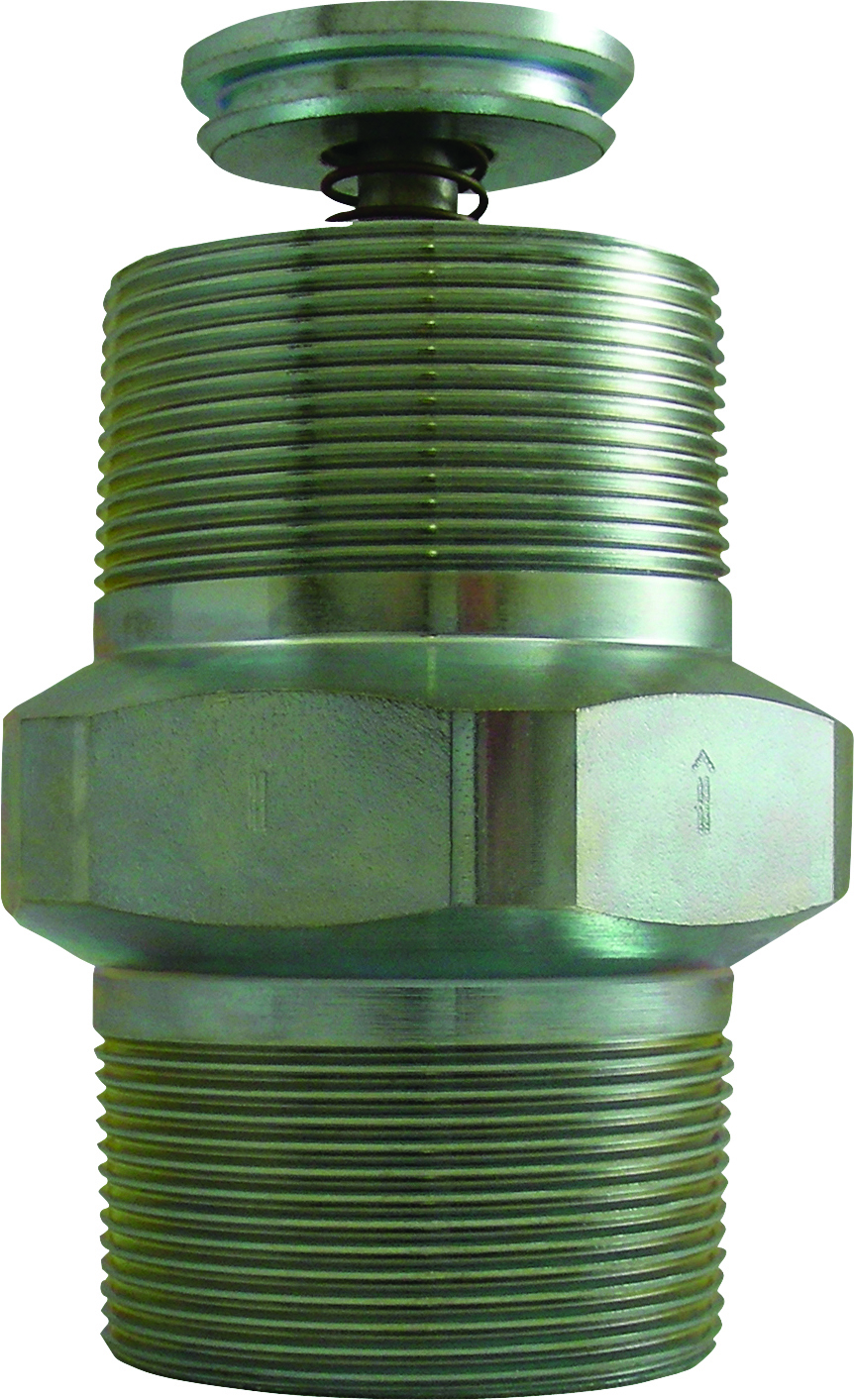

MEC Steel Excess Flow Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Inlet Connection | Outlet Connection | Closing Flow GPM Propane |
|---|---|---|---|---|
| 155020 | ME880S-6/4.6 | 3/4" MNPT | 3/4" FNPT | 4.6 |
| 155048 | ME882S-24/265 | 2" MNPT | 3" MNPT / 2" MNPT | 265 |
| 155042 | ME882S-16/114 | 2" MNPT | 2" MNPT | 114 |
| 155040 | ME882S-16/105 | 2" MNPT | 2" MNPT | 105 |
| 155038 | ME882S-16/80 | 2" MNPT | 2" MNPT | 80 |
| 155046 | ME880S-24/350 | 3" MNPT | 3" FNPT | 350 |
| 155044 | ME880S-24/265 | 3" MNPT | 3" FNPT | 265 |
| 155036 | ME880S-16/114 | 2" MNPT | 2" FNPT | 114 |
| 155034 | ME880S-16/105 | 2" MNPT | 2" FNPT | 105 |
| 155032 | ME880S-16/80 | 2" MNPT | 2" FNPT | 80 |
| 150755 | ME880S-10/42 | 1 1/4" MNPT | 1 1/4" FNPT | 42 |
| 155028 | ME880S-10/32 | 1 1/4" MNPT | 1 1/4" FNPT | 32 |
| 150226 | ME880S-6/28 | 3/4" MNPT | 3/4" FNPT | 28 |
| 150741 | ME880S-6/22 | 3/4" MNPT | 3/4" FNPT | 22 |
| 155024 | ME880S-6/17 | 3/4" MNPT | 3/4" FNPT | 17 |
| 150744 | ME880S-6/14 | 3/4" MNPT | 3/4" FNPT | 14 |
| 155050 | ME882S-24/350 | 2" MNPT | 3" MNPT / 2" MNPT | 350 |
