- Male Flare Size: 1/2"
- Capacity BTU/HR: 69,000

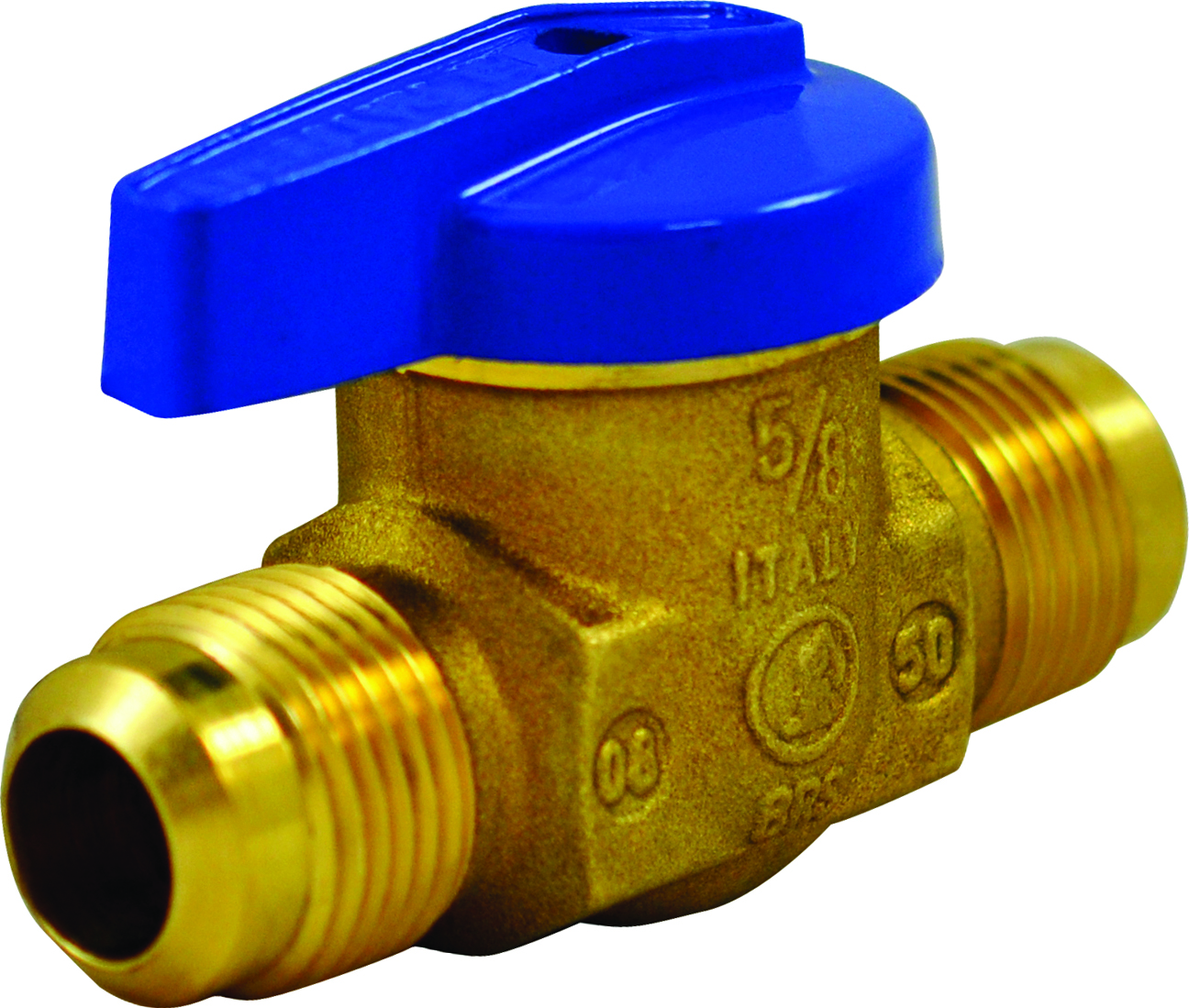

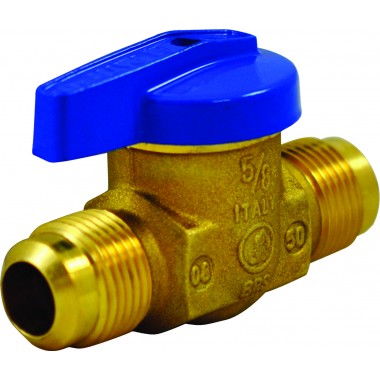

Patented one-piece forged brass body eliminates the possibility of seam leaks that may occur to two-piece body designs. Top loaded chrome plated brass ball. Gas ball valves are ideal for all residential and commercial gas installations. The chrome plated ball and nitrile rubber seats resist contamination building up and offer a positive seal in low or moderate pressure gas applications. With a quarter-turn, ball-type, forged brass design, it is more compact and superior to traditional cast bronze or cast iron gas cocks. The 175 PSI pressure rating permits highpressure air tests without the grease-seal, blowout common to plug-type gas cocks. Available in eight different configurations to meet most gas connection applications. All gas ball valves are manufactured in a ISO certified facility, 100% pressure tested.
CSA Certified for use with natural, manufactured or mixed liquefied petroleum and LP gas/air mixtures:
• ANSI standard Z21.15 for use as a gas appliance connector valve for 1/2 lb. systems.
• CSA Certified 3-88 for use in 2 or 5 lb. house piping systems.
• Threaded end connections conform to ANSI/ASME B1.20.1
• Not suitable for steam service.
