ME981-16

Item Number154180
  • Material: Cast Steel

  • Outlet Connection: 2" FNPT

  • Inlet Connection: 2" FNPT

  • Flow Indicator: Yes

  • Seat Type: Soft Seats

OAL: 6 7/8"

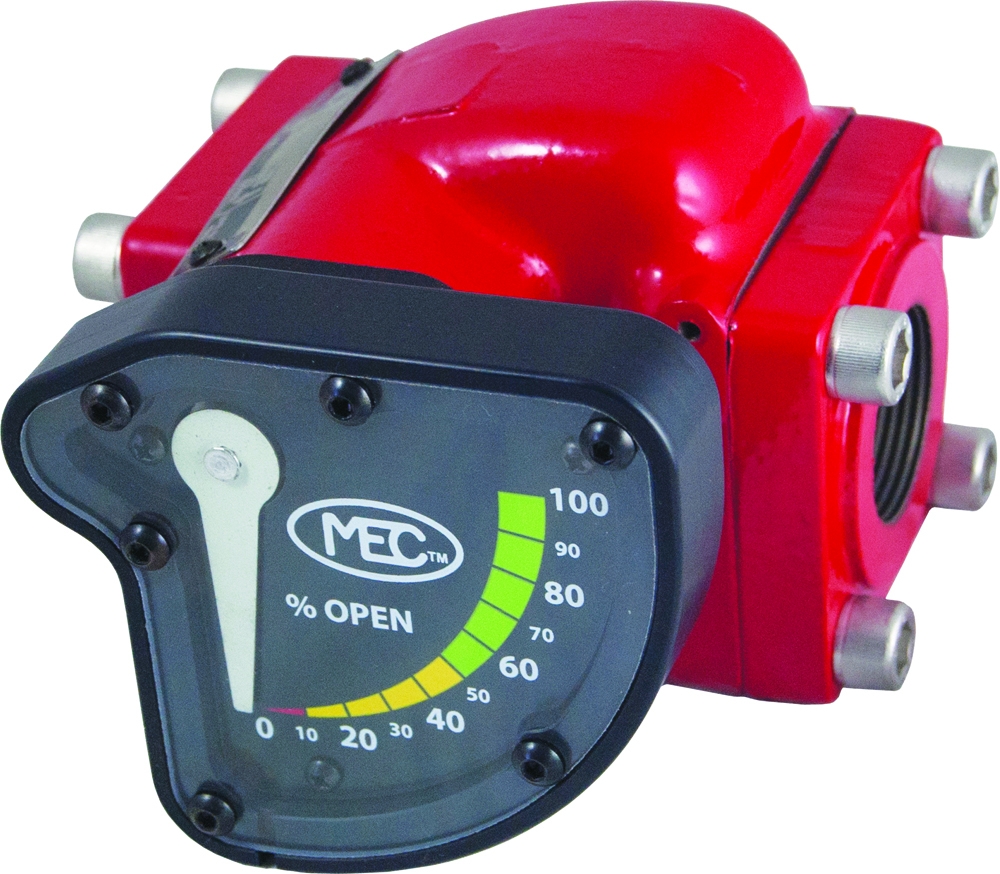

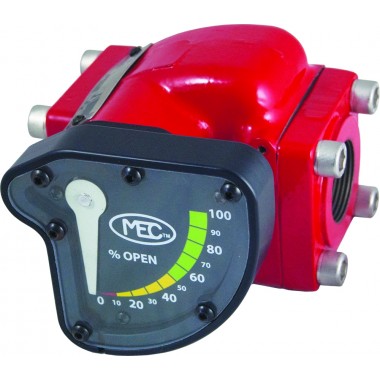

Promotes maximum pump efficiency by providing system operators with a visual inspection point for monitoring liquid flow conditions as well as providing a soft seat back check valve to prevent reverse product flow. Installation of a flow indicating swing check valve upstream of the pump allows the operator to observe product flow and make pump adjustments for maximum flow without cavitation. Suitable for stationary and mobile applications.

Features:
• Powder coated ductile iron body for maximum durability.
• Removable flanged ends for ease of field service.
• Integral swing away check valve with soft seat to promote maximum product flow and prevent reverse
  product flow.
• All stainless steel internal component construction provides maximum corrosion resistance.
• Magnetically coupled flow indicator for maximum protection against leaks and minimal resistance to product flow.
• Clear/Easy to read flow indicator with “Glow” arrow allows the operator to easily see if the valve is open or closed.
• UL LISTED for use with LP-Gas and Anhydrous Ammonia - 400 PSI WOG.



Dial Indicator - 154205
