- Tank Diameter: 60"
- Head Type: Stainless Steel
- Mount: End

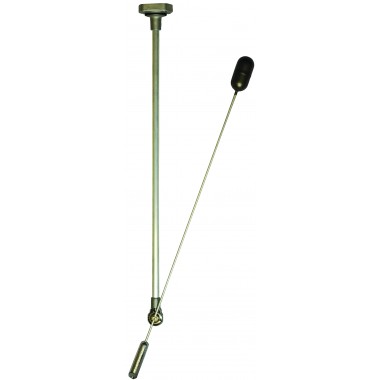

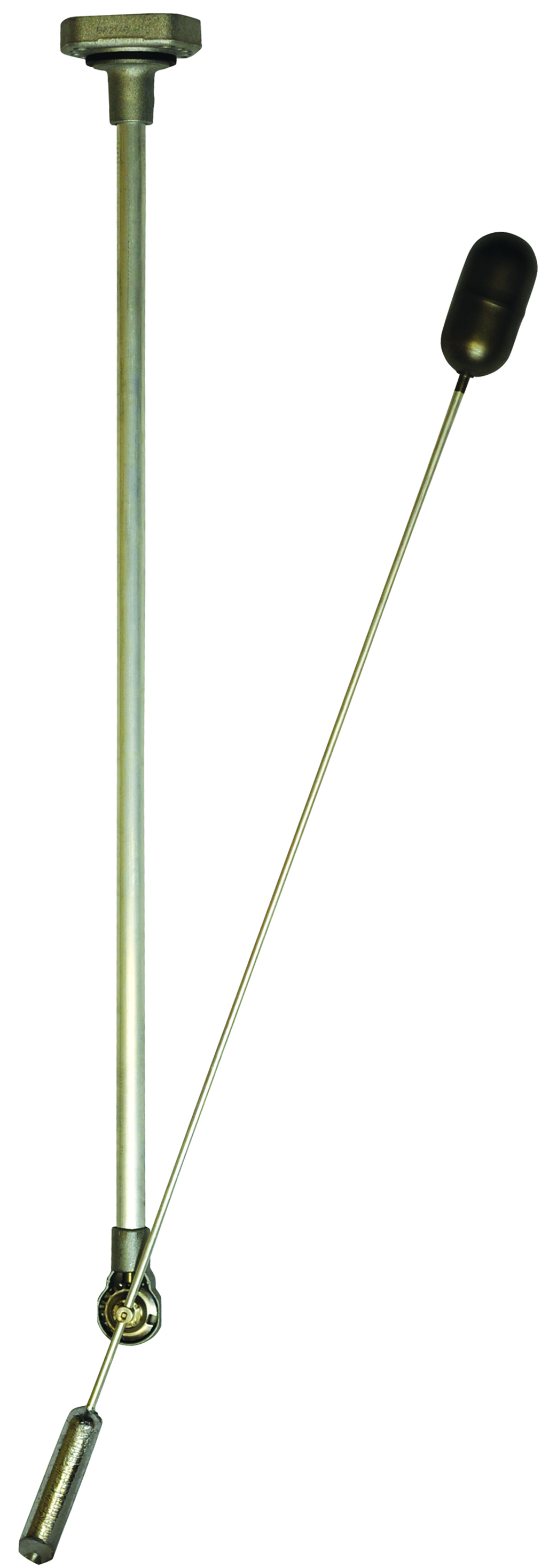

Float Gauges are designed to indicate the liquid level contents of N-Serve Containers. These gauges mount in a Senior flanged coupling with a 2 1/2” diameter bolt circle.
Senior gauges are supplied standard with Buna-N gasket and four zinc-plated steel mounting screws (5/16”-24 X 7/8”). These gauges are available in top, side or end, and angle mounting for above ground tanks. A Visible “4” Dial is standard.
Note: Torque mounting bolts evenly to 30 to 60 in-lb. for Buna-N and Teflon Gaskets. Torque mounting bolts evenly to 115-125 in.-lb. for Spirotallic gasket.
"H" = Distance from tank surface to center of thread.
