- Tank Diameter: 48"
- Head Type: Aluminum
- Mount: Side, End

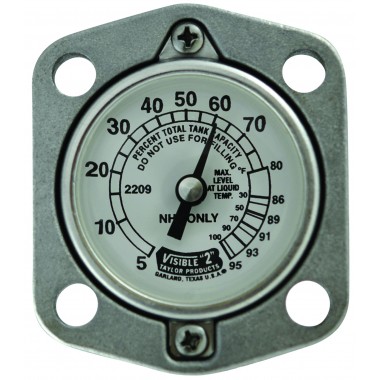

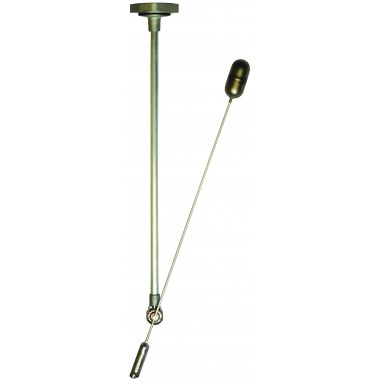

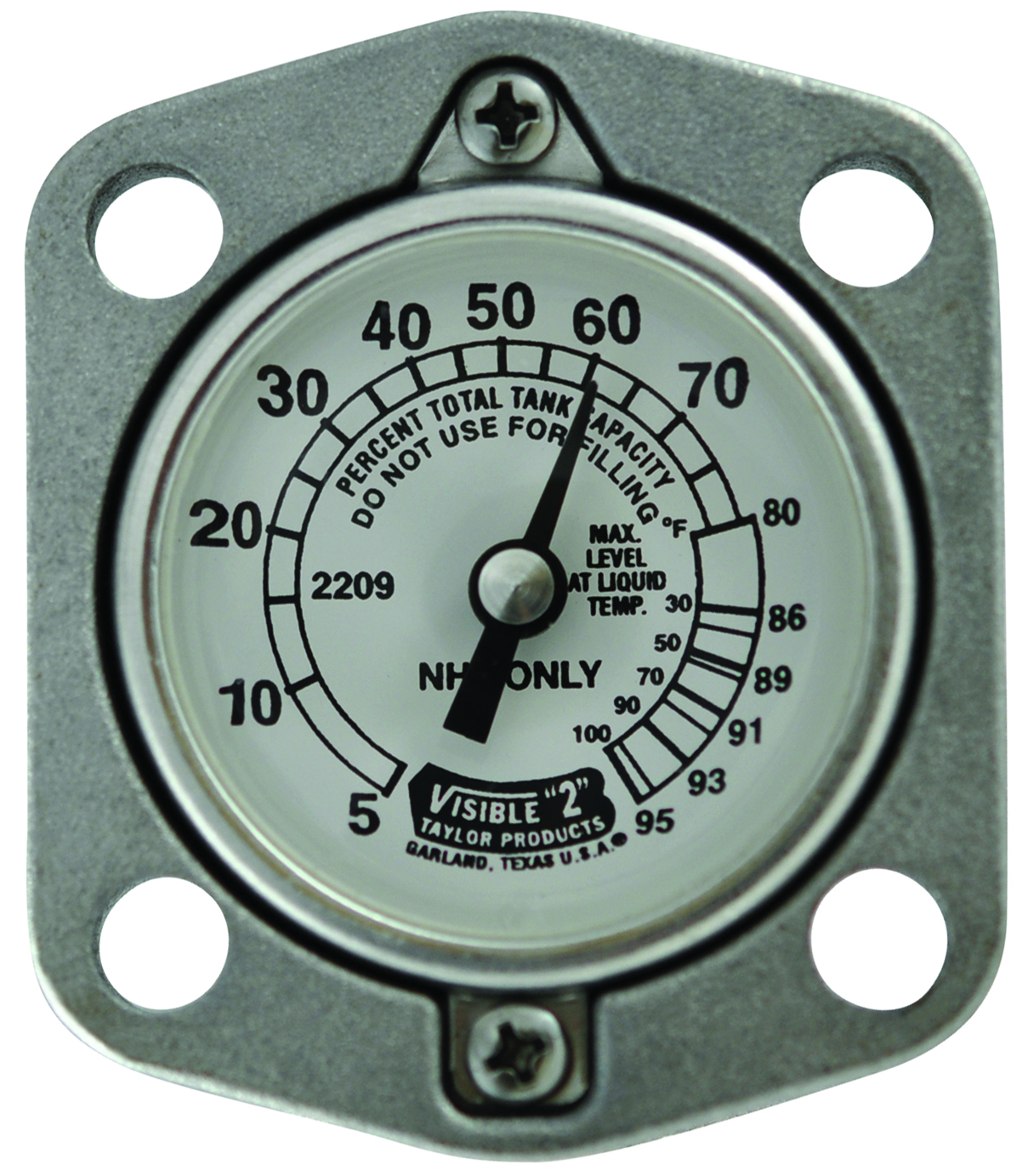

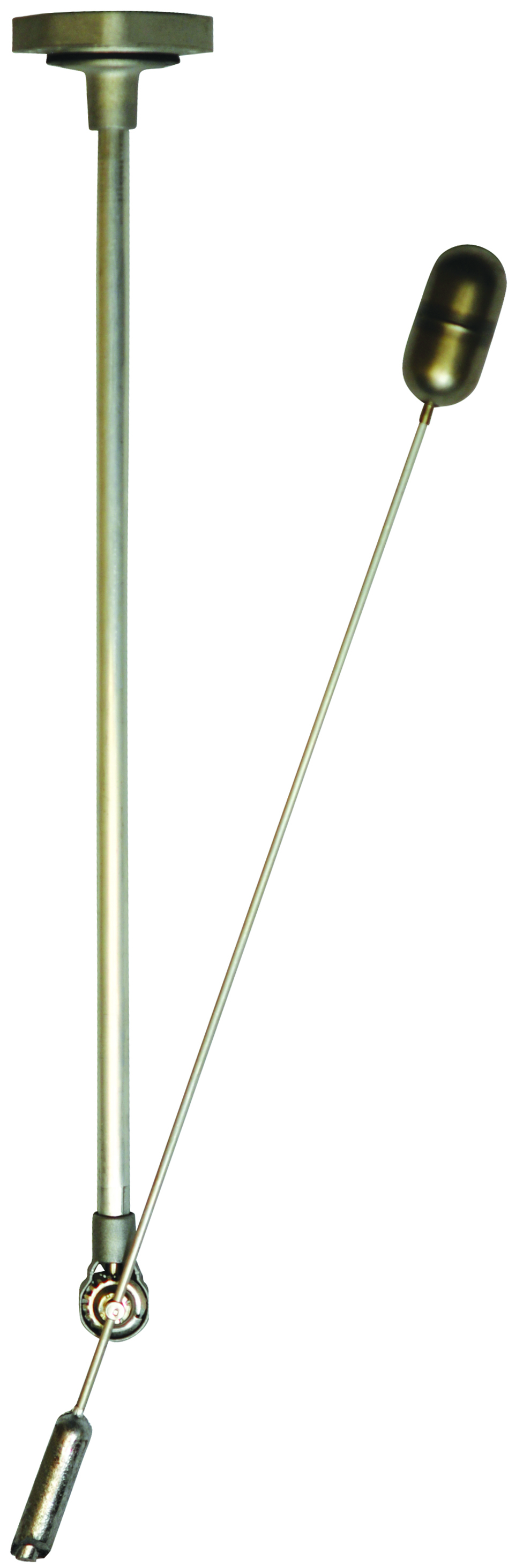

Float Gauges are designed to indicate the liquid level contents of NH3 Containers. These gauges mount in a Senior flanged coupling with a 2 1/2” diameter bolt circle.
Senior gauges are supplied standard with Buna-N gasket and four zinc-plated steel mounting screws (5/16”-24 X 7/8”). These gauges are available in top, side or end, and angle mouninng for above ground tanks. A Visible "4" Dial is available.
Note: Torque mounting bolts evenly to 30 to 60 in-lb.
"H" = Distance from tank surface to center of thread.
