- Tank Diameter: 41"
- Head Type: Aluminum
- Mount: Top

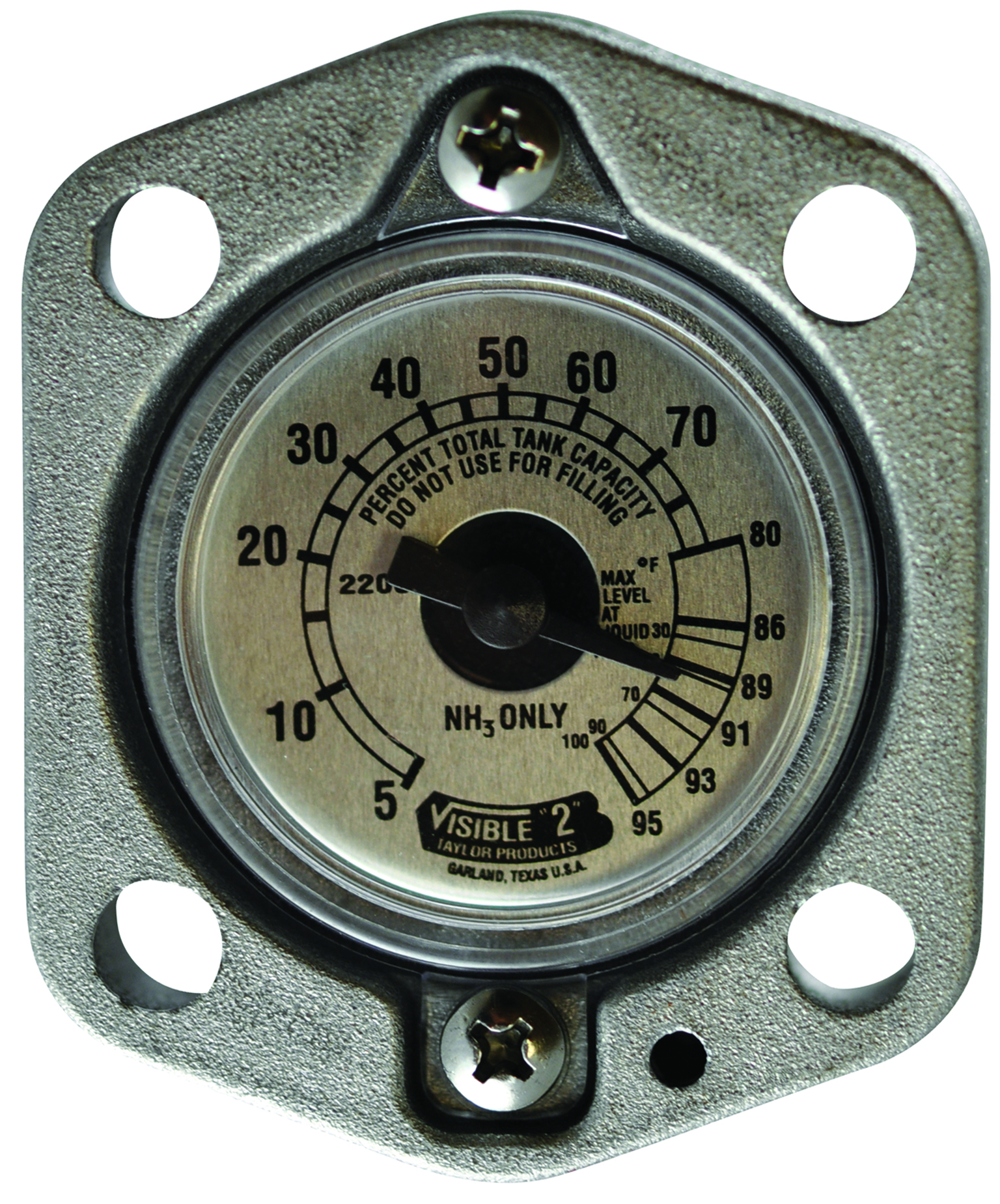

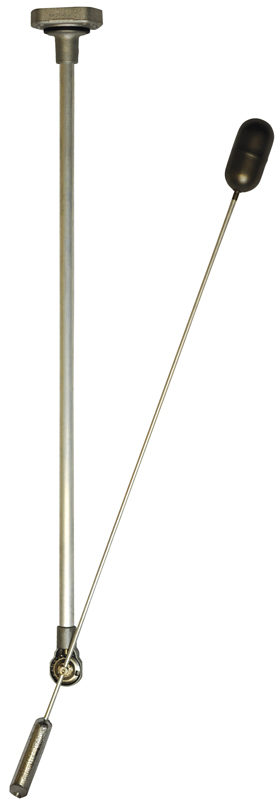

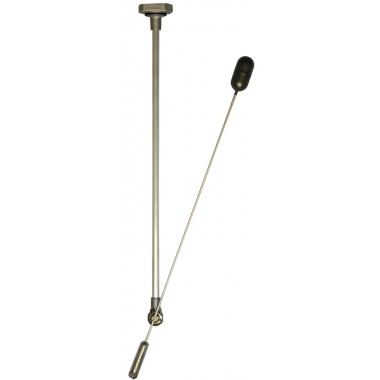

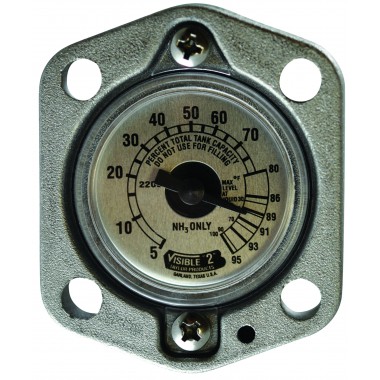

Float Gauges are designed to indicate the liquid level contents of NH3 Containers. These gauges mount in a Junior flanged coupling with a 2 1/32” diameter bolt circle.
Junior gauges are supplied standard with Buna-N gasket and four zinc-plated steel mounting screws (1/4”-28 X 7/8”). These gauges are available in top, side or end, and angle mouninng for above ground tanks.
Note: Torque mounting bolts evenly to 20 to 50 in-lb.
"H" = Distance from tank surface to center of thread.
