- Tank Diameter: 130"
- Mount: Side, End
- Tank Opening: 2 1/2"
- Model Type: B
Old LP-Gas Number: MD380F
Old NH3 Number: DD380F

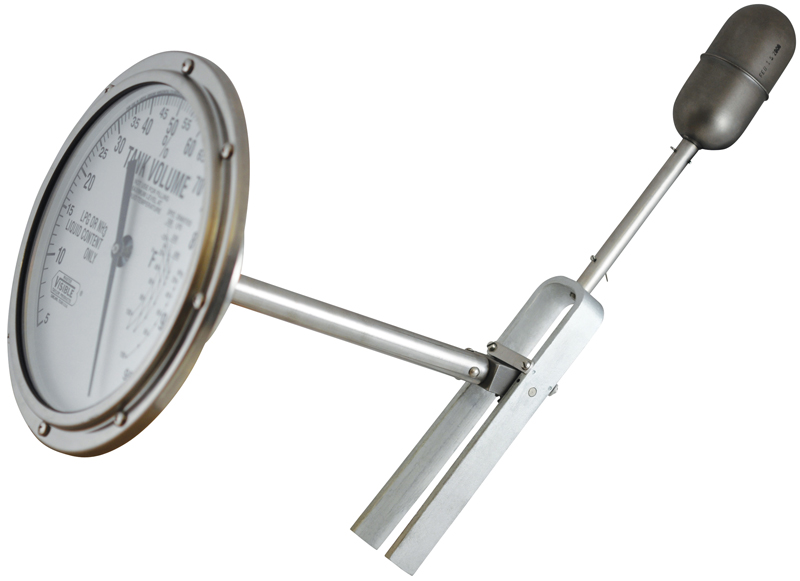

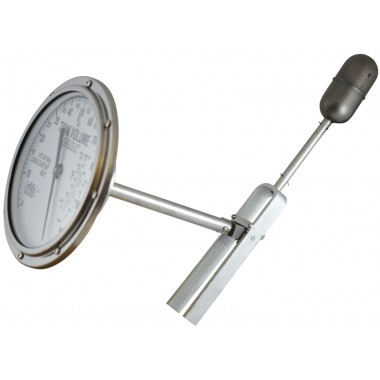

The Master Series™ liquid-level gauges are designed to indicate the liquid level contents of LP-Gas & Anhydrous Ammonia(NH3) in stationary-storage tanks.
The Master Series™ Model B - Stainless Steel head which mounts to a 2 1/2” X 8-Bolt flange adaptor.
They incorporate a 8” R3D dial with an available 4” dial. When necessary, the dials are easily replaceable. Standard mounting is end or top mounting. These gauges can be special ordered with angle or straddle mounts. The model B comes with a stud & nut kit and spirotallic gasket.
The Master Series™ gauges are designed for working pressures ranging from atmospheric to 450 psig.
Note: Refer to Gauge Instructions for mounting bolt torque specifications.
Replacement Dials:
LP or NH3 Dial - 130090
4102 LP Only Dial - 130091
R3D LP or NH3 Dial - 130034
Fluorescent LP or NH3 Dial - 130089
Fluorescent R3D LP or NH3 Dial - 130099
Replacement Parts:
2 1/2" X 8 Bolt Adaptor - 118425
Weld In 8 Bolt Adaptor- 118428
Straddle Mount Adaptor - 131812
Spirotallic Gasket - 130040
Stud Bolt & Nut Kit - 130093
Dial 3-Bracket Kit - 130098
Gasket & Centralizer - 130206
R3D Sender & Cable - 130076
