- Tank Diameter: 104"-108"
- Mount: Side, End
- Tank Opening: 2 1/2"
- Model Type: B
Old LP-Gas Number: MD360C
Old NH3 Number: DD360B
The Master Series™ liquid-level gauges are designed to indicate the liquid level contents of LP-Gas & Anhydrous Ammonia(NH3) in stationary-storage tanks.

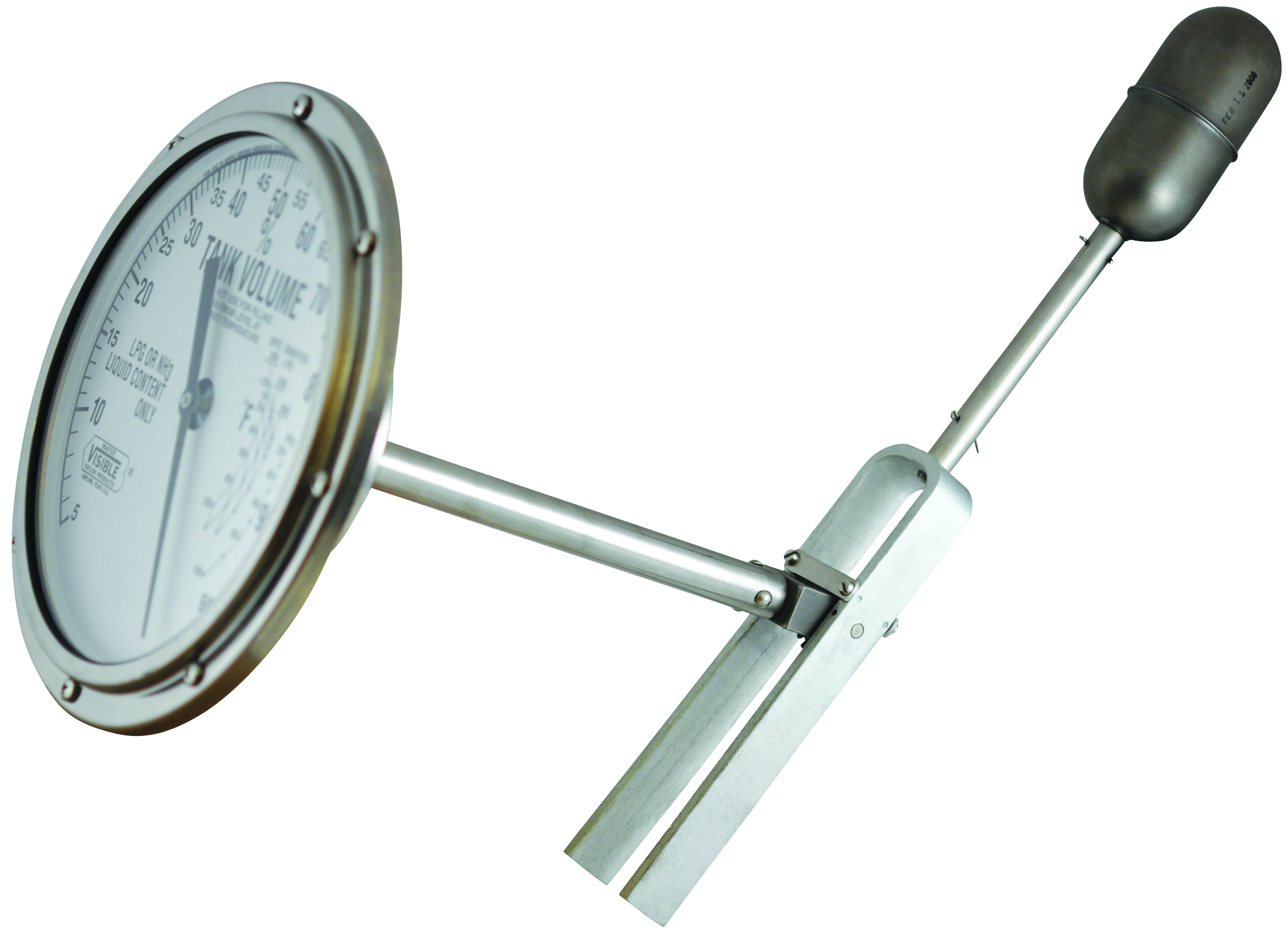

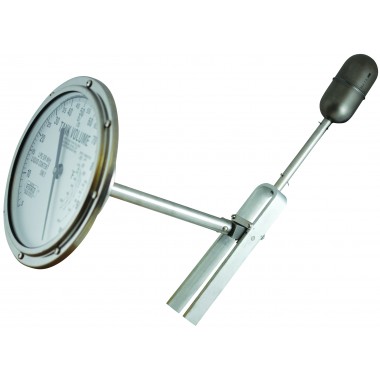

The Master Series™ Model B - Stainless Steel head which mounts to a 2 1/2” X 8-Bolt flange adaptor.
They incorporate a 8” [100 mm] dial with an available 4” [200 mm] dial. When necessary, the dials are easily replaceable. Standard mounting is end or top mounting. These gauges can be special ordered with angle or straddle mounts. The model B comes with a stud & nut kit and spirotallic gasket.
The Master Series™ gauges are designed for working pressures ranging from atmospheric to 450 [31 Bar] psig.
Note: Refer to Gauge Instructions for mounting bolt torque specifications.
Replacement Dials:
LP or NH3 Dial - 130090
4102 LP Only Dial - 130091
R3D LP or NH3 Dial - 130034
Fluorescent LP or NH3 Dial - 130089
Fluorescent R3D LP or NH3 Dial - 130099
Replacement Parts:
2 1/2" X 8 Bolt Adaptor - 118425
Weld In 8 Bolt Adaptor- 118428
Straddle Mount Adaptor - 131812
Spirotallic Gasket - 130040
Stud Bolt & Nut Kit - 130093
Dial 3-Bracket Kit - 130098
Gasket & Centralizer - 130206
R3D Sender & Cable - 130076
