- Tank Diameter: 84"
- Mount: Side, End
- Tank Opening: 2"
- Model Type: A
Old LP-Gas Number: MD280B
Old NH3 Number: DD280G
The Master Series™ liquid-level gauges are designed to indicate the liquid level contents of LP-Gas & Anhydrous Ammonia(NH3) in stationary-storage tanks.

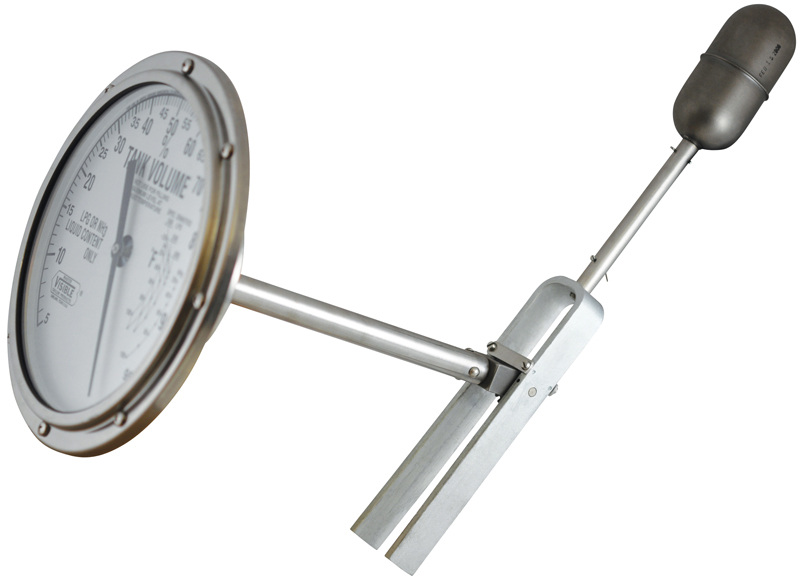

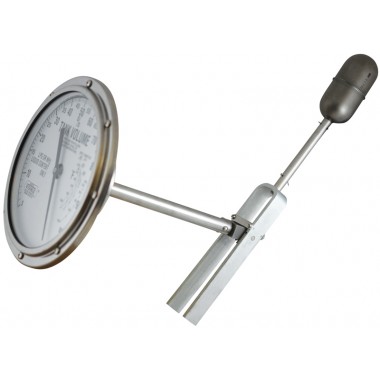

The Master Series™ Model A - Stainless Steel Senior head which mounts to a 2” MNPT x Senior adaptor.
They incorporate a 8” [100 mm] dial with an available 4” [200 mm] dial. When necessary, the dials are easily replaceable. Standard mounting is end or top mounting. These gauges can be special ordered with angle or straddle mounts. The model A comes standard with cap screws and a Senior spirotallic gasket.
The Master Series™ gauges are designed for working pressures ranging from atmospheric to 450 [31 Bar] psig.
Note: Refer to Gauge Instructions for mounting bolt torque specifications.
