- Head Type: 1" Brass
- Mount: Top
- Tank Size: 200 Lb.
- "H": 1"
- Case Quantty: 50 Pcs.

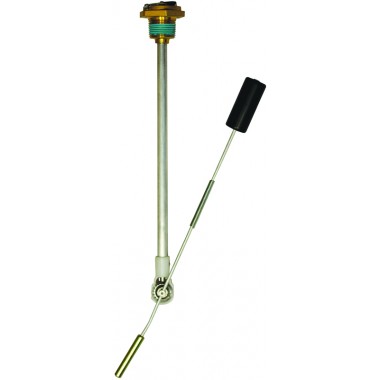

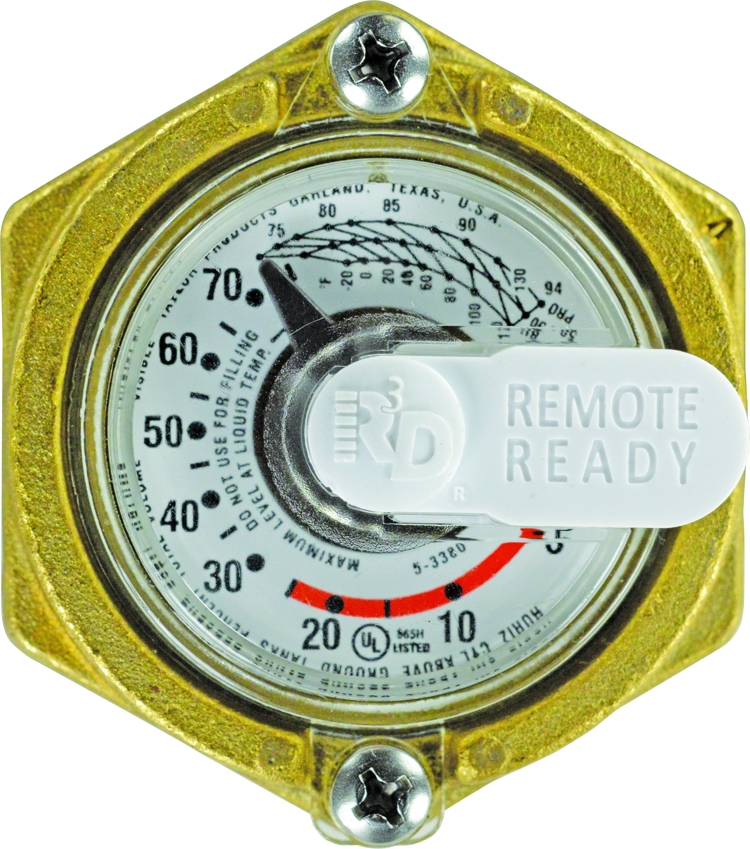

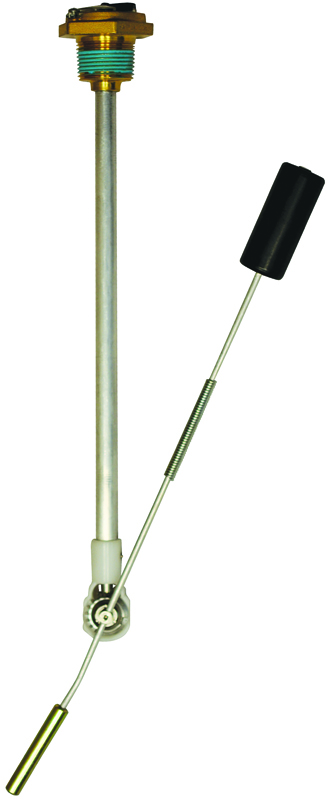

Float Gauges are designed to indicate the liquid level contents of LP-Gas Containers. These gauges mount in a 1” tank coupling.
The HA series gauges are only for top mount applications in an above ground tank. These come standard with a 1” threaded brass head with a 2” hex wrenching flat.
Note: Torque head evenly to 75 to 150 ft.-lbs. [102 to 200 Nm].
"H" = Distance from tank surface to center of thread.
