SD100C

• Tank Diameter: 30"


• Head Type: Alum.


• Mount: End


• Case Quantity: 50 Pcs.


• "H": 1"

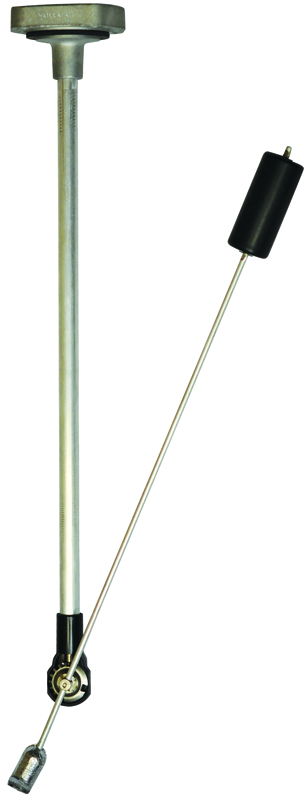

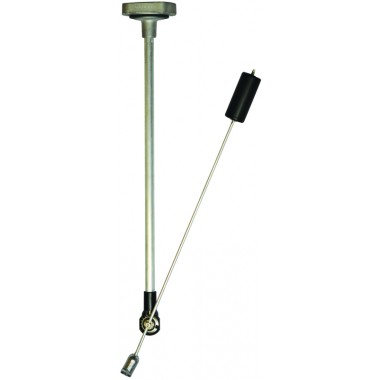

Float Gauges are designed to indicate the liquid level contents of LP-Gas Containers. These gauges mount in a Senior flanged coupling with a 2 1/2” [63,5] diameter bolt circle.

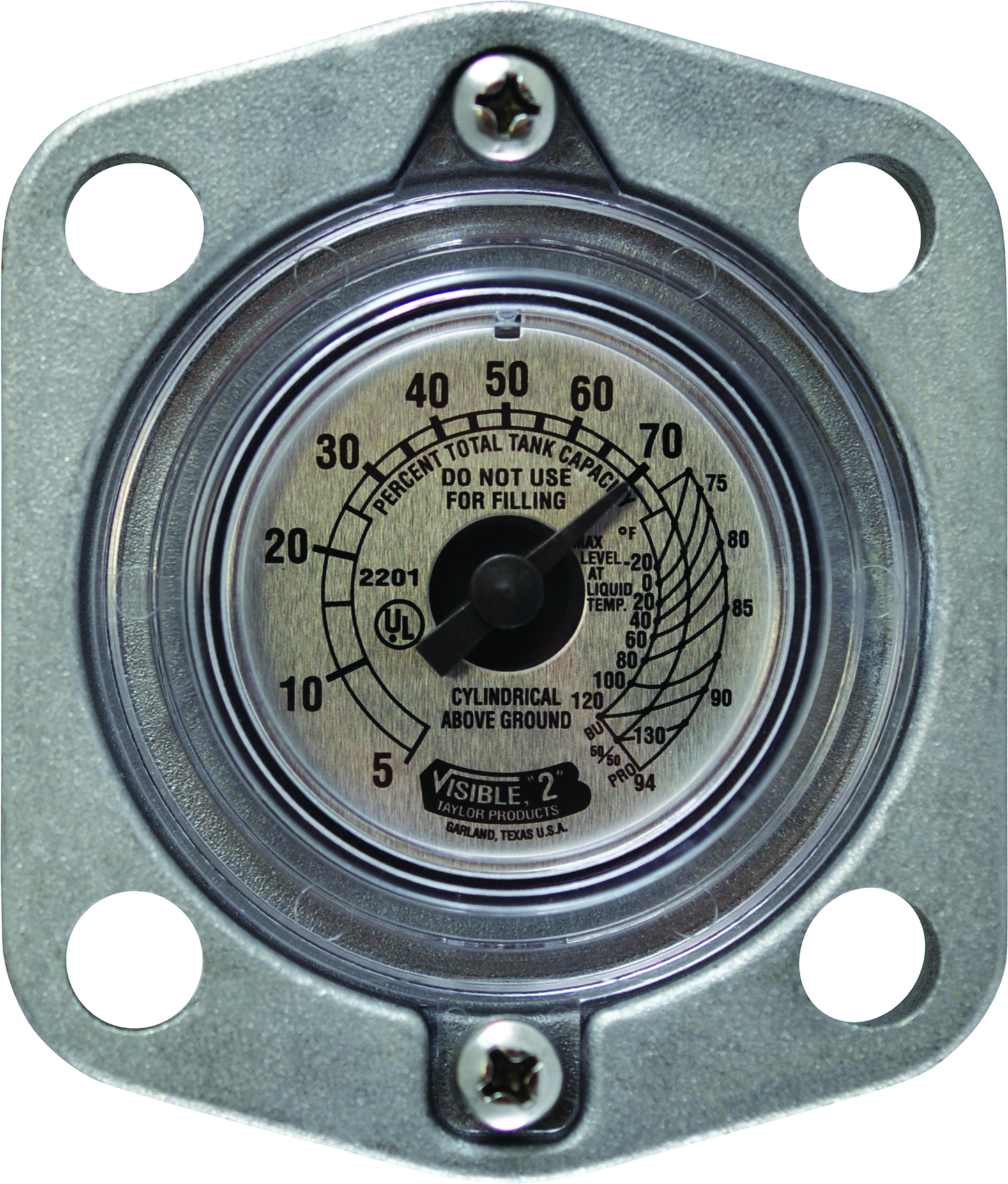

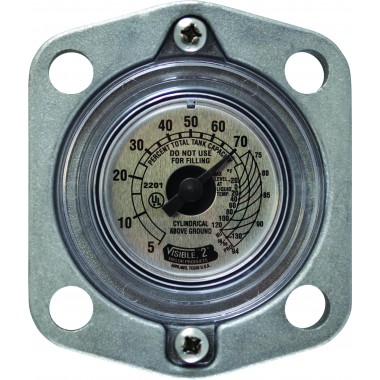

Senior gauges are supplied standard with Buna-N gasket and four zinc-plated steel mounting screws (5/16”-24 X 7/8”).  These gauges are available in top, side or end, and angle mouninng for above ground tanks.  A Visible "4" Dial is available.

Note: Torque mounting bolts evenly to 30 to 60 in-lb. [3,4 to 6,8 Nm]

"H" = Distance from tank surface to center of thread.
