- Head Type: Aluminum
- Mount: Side, End
- Tank Size: 43 Lb.
- "H": 1/2"
- Case Quantty: 50 Pcs.

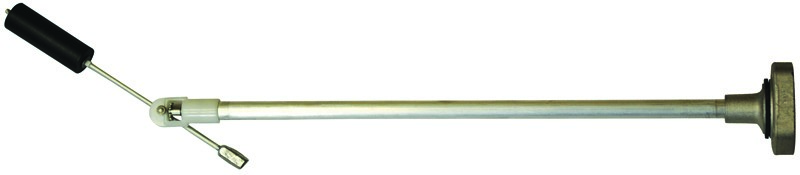

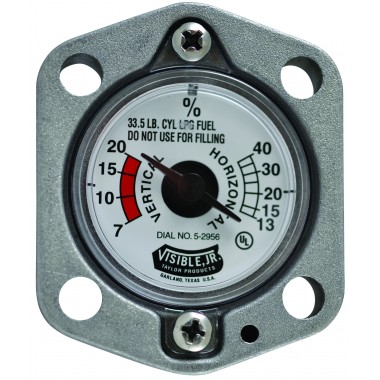

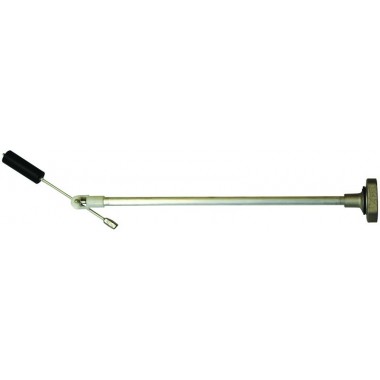

Float Gauges are designed to indicate the liquid level contents of LP-Gas Containers. These gauges mount in a Junior flanged coupling with a 2 1/32” [51,5] diameter bolt circle.
Junior gauges are supplied standard with Buna-N gasket and four zinc-plated steel mounting screws (1/4”-28 X 7/8”).
Note: Torque mounting bolts evenly to 20 to 50 in-lb. [2,3 to 5,6 Nm]
"H" = Distance from tank surface to center of thread.
