- Tank Diameter: 30"
- Head Type: Alum.
- Mount: Top
- Case Quantity: 50 Pcs.
- "H": 7 1/2"

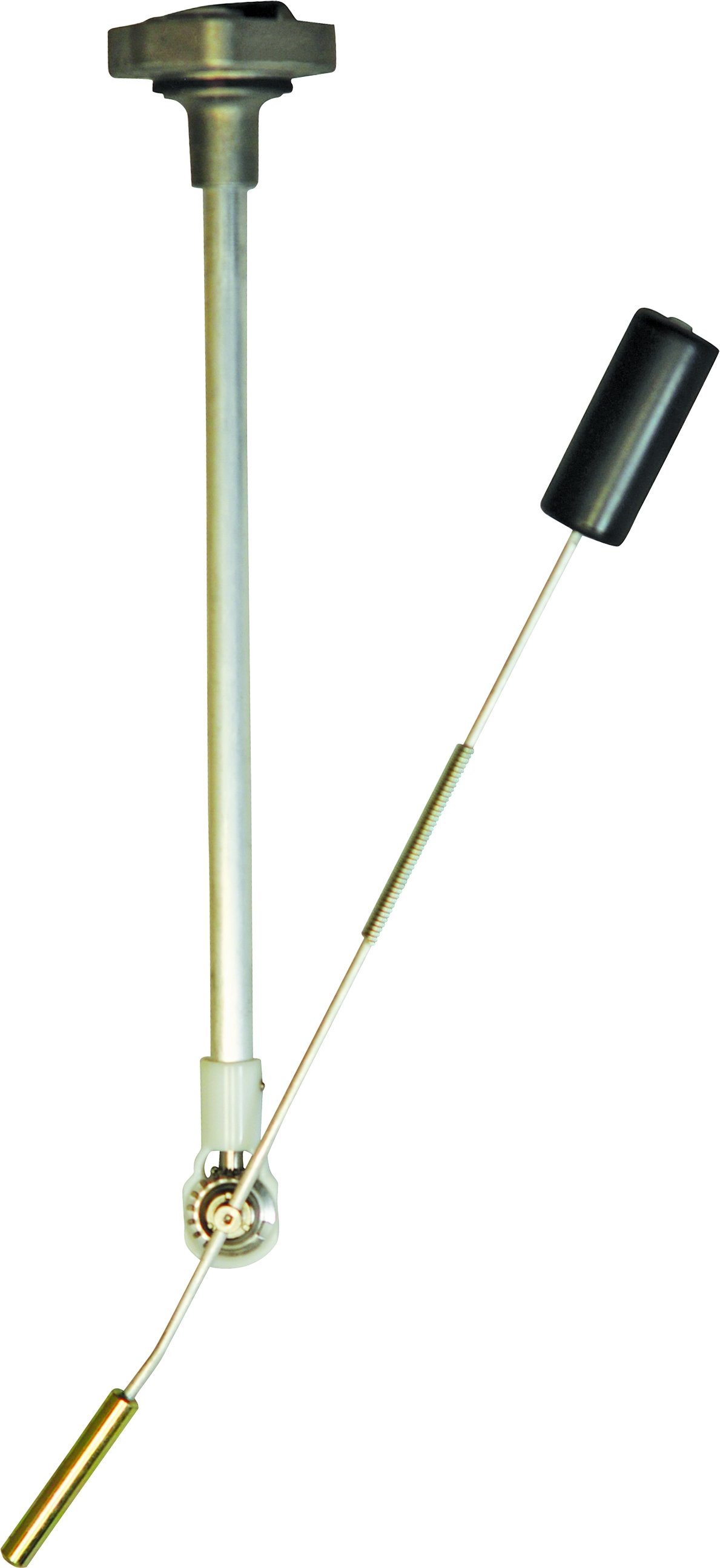

Float Gauges are designed to indicate the liquid level contents of LP-Gas Containers. These gauges mount in a Junior flanged coupling with a 2 1/32” diameter bolt circle.
Junior gauges are supplied standard with Buna-N gasket and four zinc-plated steel mounting screws (1/4”-28 X 7/8”). These gauges are only available in top mount for below ground tanks.
Note: Torque mounting bolts evenly to 20 to 50 in-lb.
"H" = Distance from tank surface to gasket surface.
