- Length: 3 13/16"

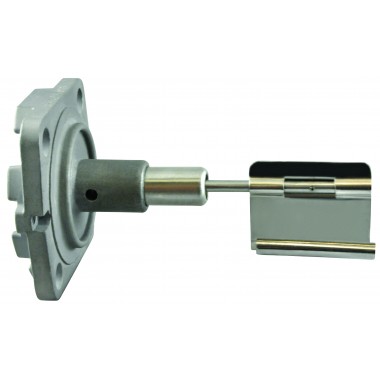

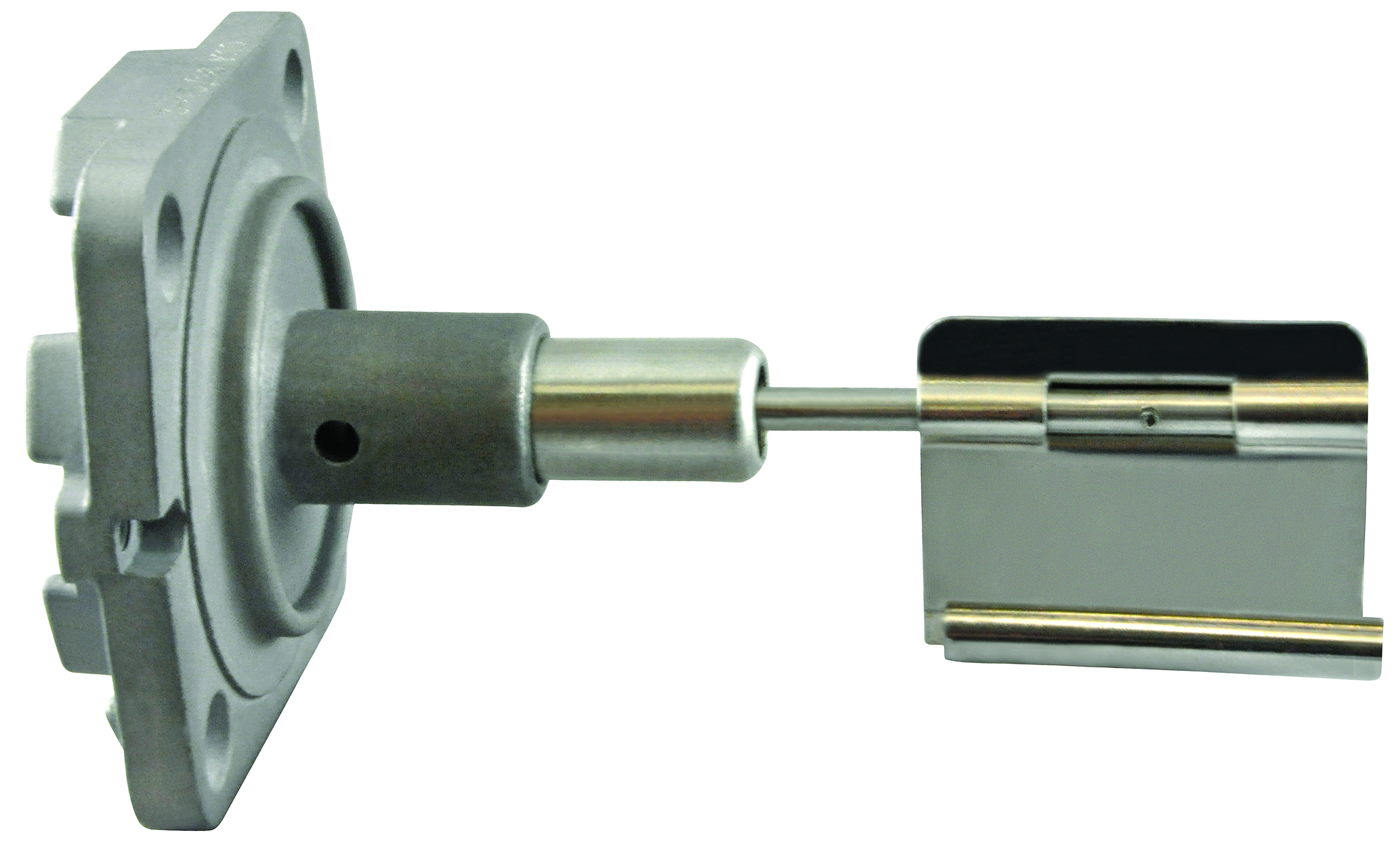

- Part Description: 2" Flapper Only
Taylor Flo Indicators are installed in liquid pipelines to give visual indication of flow direction or the absence of flow of LP-Gas or Anhydrous Ammoni(NH3) at working pressures up to 500 psig. Capable of showing flow in both directions, the indicator mounts in a standard tee fitting with the flapper assembly in the center of the pipe.
The head, center shaft, support tube; bearings and vane in these indicators are made of 300 Series stainless steel. Magnets are nickel-plated Alnico, and the threaded mounting adapters are forged steel. The hermetically sealed dial has a large 4” dial face capable of showing flow in both directions or the absence of flow.
Note: Torque mounting bolts to 140 to 150 in-lb.
Includes 2" Flapper, Screws, & Gasket.
Length is the distance from gasket surface to the end of the flapper.
