Fisher Rotary Gauge Parts
Click on "Item No." or "Part No." for part description and technical info.

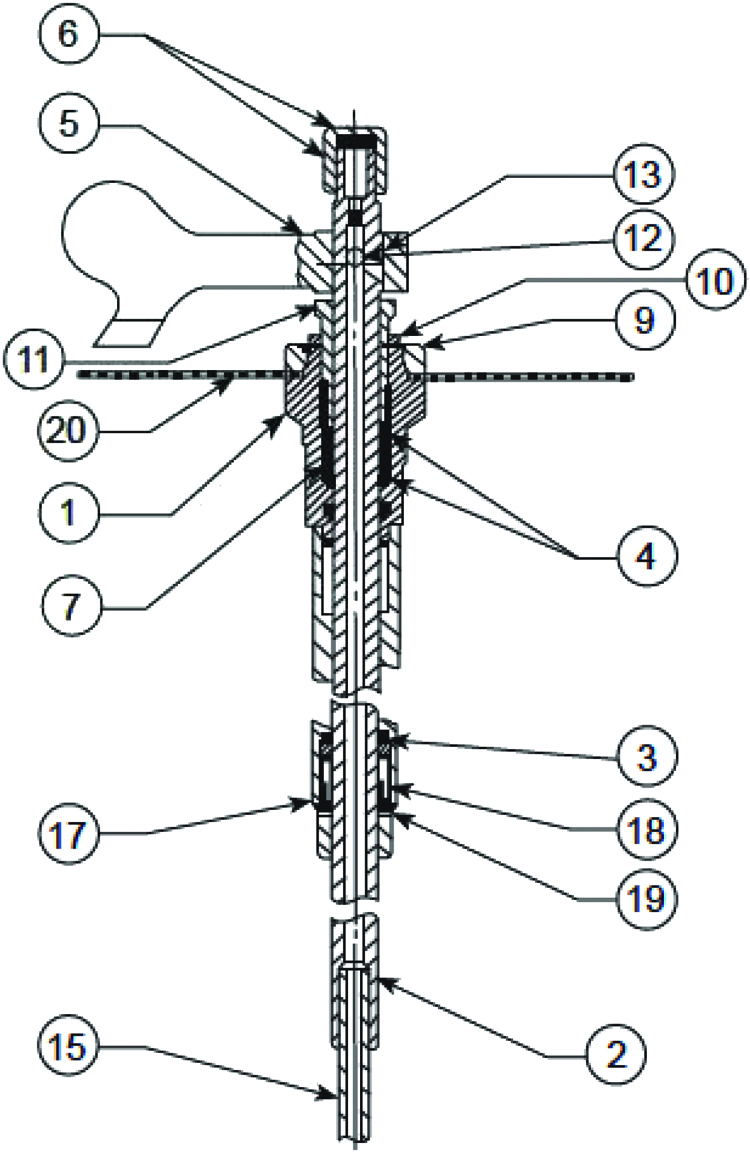

Expand Table| Item No | Part No | Part Description | Ref No. | Qty. |
|---|---|---|---|---|
| 128137 | T10885T0012 | Body Extension Tube - Zinc-Plated Steel | 1 | 1 |
| 122917 | P323/P324 | Dial - LPG/NH3 Service | 20 | 1 |
| 128175 | T1095106562 | O-Ring - Nitrile (NBR) | 3 | 1 |
| 128187 | T1095606162 | Packing Sleeve - Nylon (PA) | 4 | 1 |
| 128139 | T1088719232 | Indicator - Ductile Iron | 5 | 1 |
| 126405 | 1C682403022 | Seat Disc | 6 | 1 |
| 128193 | T1095824102 | Cap | 6 | 1 |
| 128217 | T10971000A2 | Cap-Seat Assembly - Stainless Steel | 6 | 1 |
| 128190 | T1095706162 | Friction Ring - Nylon (PA) | 7 | 1 |
| 128202 | T1096124102 | Lock Nut - Zinc-Plated Steel | 9 | 1 |
| 128203 | T1096224102 | Lock Nut - Zinc-Plated Steel | 10 | 1 |
| 128208 | T1096335132 | Seal Nut - 410/416 Stainless Steel | 11 | 1 |
| 128209 | T1096424152 | Set Screw - Alloy Steel-Plate | 12 | 1 |
| 128214 | T1096528982 | Key - Carbon Steel-Plate | 13 | 1 |
| 128178 | T1095224102 | Insert - Zinc-Plated Steel | 17 | 1 |
| 128181 | T1095328992 | Needle Bearing - Carbon Steel | 18 | 1 |
| 128184 | T1095406162 | Washer - Nylon (PA) | 19 | 1 |
| 122915 | P322 | Dial - 1200 Gallons & Under | 20 | 1 |
