- Tank Connection: 4" 300 LB. Flange
- Flow Capacity - SCFM Air U.L. @ 120% Set Pressure: 27,740 (3)
- Relief Setting: 250 PSIG
- Trim Material: Viton®
- No. of Relief Valves: 4
- Service: LP
Flow Capacity - SCFM Air U.L. @ 120% Set Pressure
Flow rates based on number of valves indicated in parentheses ().
Flow rates are shown for bare relief valves; pipeaways will reduce flow.

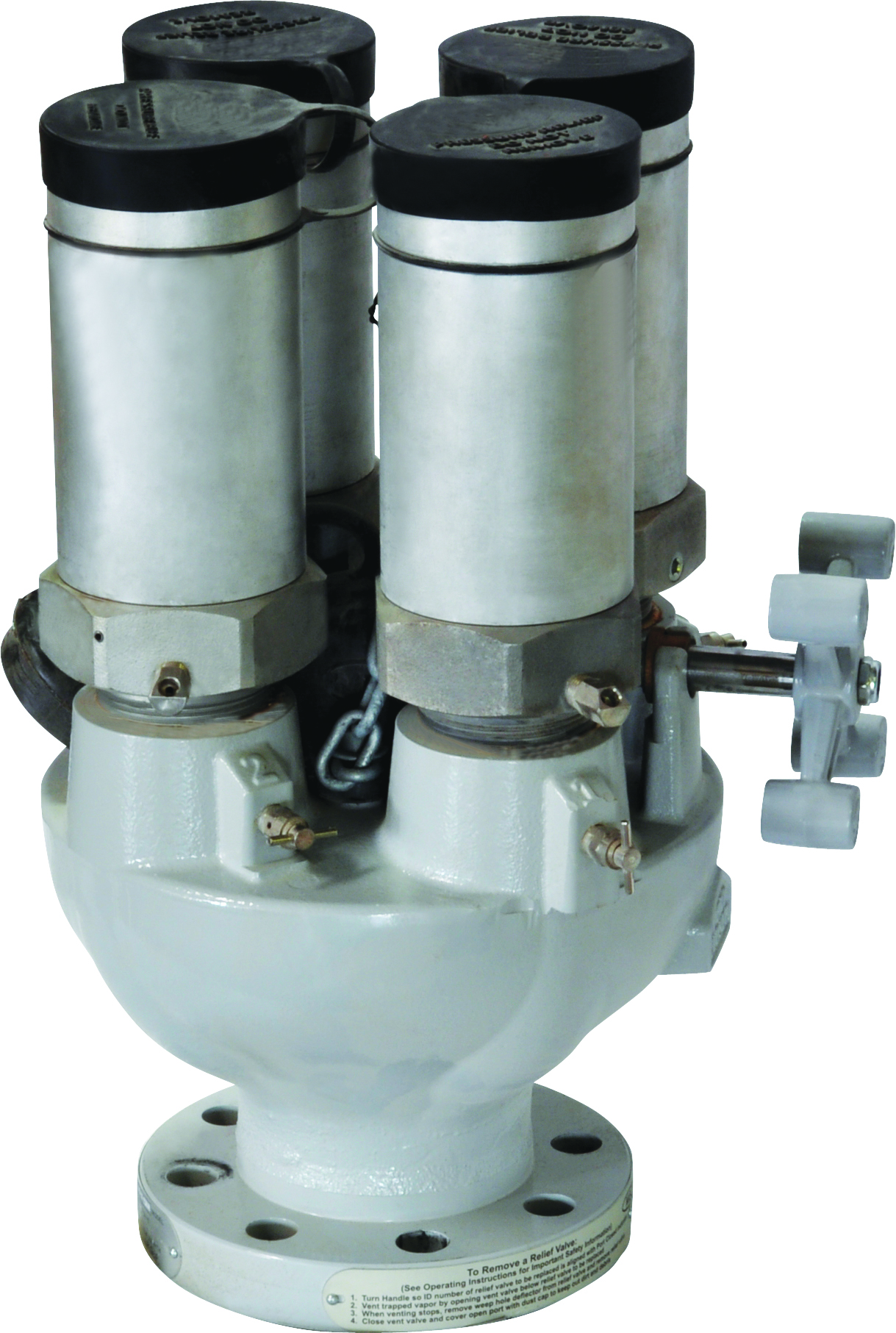

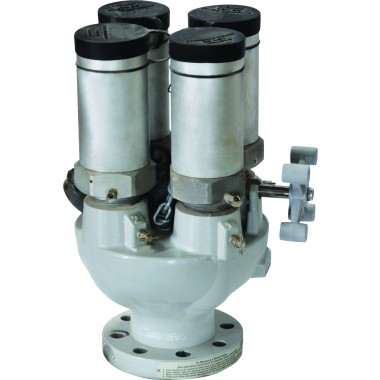

Designed for use with large LP-Gas stationary storage containers with flanged openings. These relief manifolds have an additional relief valve excluded from the flow rating, which allows for service and/or exchange of any one relief valve without evacuating the tank. Our large port selection handle allows for each specific valve port to be closed off so that the relief valve may be removed while the remaining valves remain under pressure protecting the tank and contents. Each manifold model is rated based on the flow through the relief valves with one valve removed from service.
Features:
• Heavy duty ductile iron body.
• Durable V-cup Teflon® packing stem seals.
• Molded rubber weather guard for manifold rotary gear with port plug.
• Integral breakaway feature leaves seat and seal intact.
• Weep hole defl ector and hex socket plugs supplied.
• Integrated pilot equalizing feature.
• Corrosion resistant finish.
• Convenient lifting chain included.
• 3 1/2”-8 outlet thread accepts 3” MNPT pipeaway.
Viton® is a trademark of DuPont Performance Elastomers.
Teflon® is a trademark of DuPont Company.
