- Tank Connection: 2" MNPT
- Flow Capacity - SCFM Air U.L. @ 120% Set Pressure: 10,925
- Relief Setting: 250 PSIG
- Trim Material: Nitrile
Flow Capacity - SCFM / Air # U.L. @ 120% Set Pressure
# Flow rates are shown for bare relief valves.

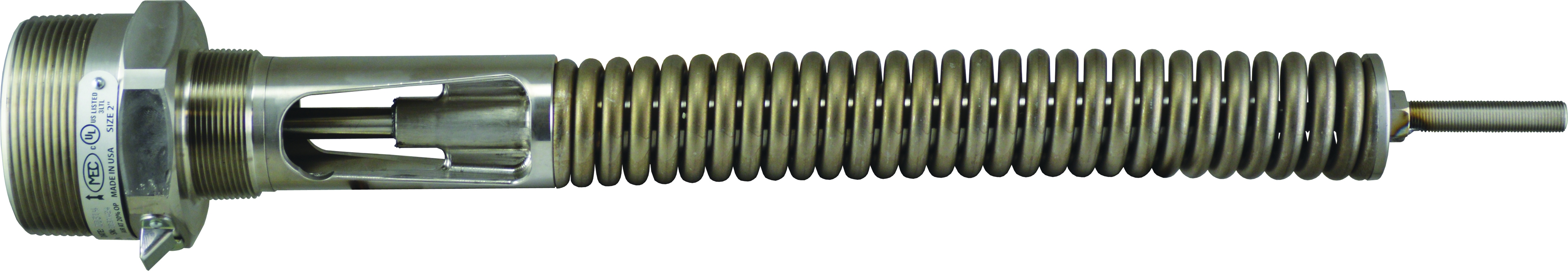

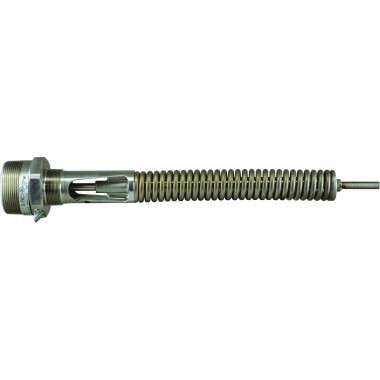

Designed for use in large stationary NH3 containers as a primary pressure relief valve. These pressure relief valves have been specifically designed to provide optimum performance when installed in either a 2” half or full coupling making them perfect for most large stationary tank installations.
Features:
• Stainless Steel body with 3” NPT outlet pipeaway thread.
• All stainless steel stem, spring, and valve gasket holder for maximum corrosion resistance.
• Available with Nitrile, Viton®, or Kalrez® valve seals.
• Large seating surface for superior seal performance & reliability.
• Available with 125, 250, 265 PSI UL LISTED set pressures.
• Custom set pressures available.
Kalrez® & Viton® are a registered Trademarks of DuPont Performance Elastomers.
Pipeaway Adaptor - 122615
